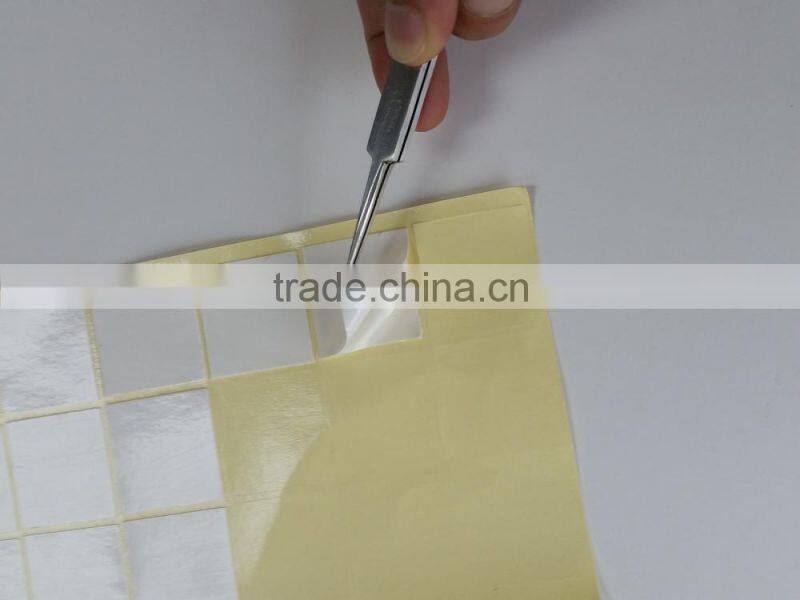

Pre Cut thermal conductive adhesive sheet double sided tape
Features & Benefits:
-High bond strength to surfaces
-Thermal conductive
-Different thickness available
Configurations:
-Sheet form/roll form/die-cut parts
Available Thickness:
-0.1-0.5mm, -Max.width:1030mm -Max.length:50M
Typical Application Includes:
- Between heat sinks/spreaders and chips
- LED Lighting
Properties |
8N12-T05 |
8N12-T10 |
8N12-T15 |
8N12-T20 |
||
Carrier |
NONE |
NONE |
NONE |
NONE |
||
Thickness |
0.05mm |
0.10mm |
0.15mm |
0.20mm |
||
Adhesion | ||||||
|
Peel Strength (PSTC-101)(N/25mm) |
>10.78 |
>13.72 |
>13.72 |
>15.68 |
||
|
Temp Resistance(S) °C (°F) |
180(356) |
180(356) |
180(356) |
180(356) |
||
|
Temp Resistance(L) °C(°F) |
120(248) |
120(248) |
120(248) |
120(248) |
||
|
Continues Use. Temp. (°C) |
-20 to 120 |
-20 to 120 |
-20 to 120 |
-20 to 120 |
||
|
Retention (1Kg/Inch/25°C) |
>48 |
>48 |
>48 |
>48 |
||
Adhesion(Kg/Inch) |
1.1 |
1.4 |
1.4 |
1.4 |
||
Initial Adhesion(J.DOW) |
8 |
12 |
14 |
16 |
||
Electrical | ||||||
Breakdown Voltage(Kv) |
1.57 |
2.22 |
2.55 |
4.29 |
||
Thermal | ||||||
|
Thermal conductivity (ASTM D5470) |
1.2w/m.k |
1.2w/m.k |
1.2w/m.k |
1.2w/m.k |
||
|
Thermal Resistance (AMD 2240)@40PSI |
0.414C*in2/w |
0.558C*in2/w |
1.07C*in2/w |
1.173C*in2/w |
||
Remark:
1.Data for design engineer spec. reference only. Engineers are reminded to test the material in application. 2.Shelf life: Leader recommend a 15month shelf life at a maximum storage temperature range 23±5°C,relative
humidity is 60% to keep its properties.
