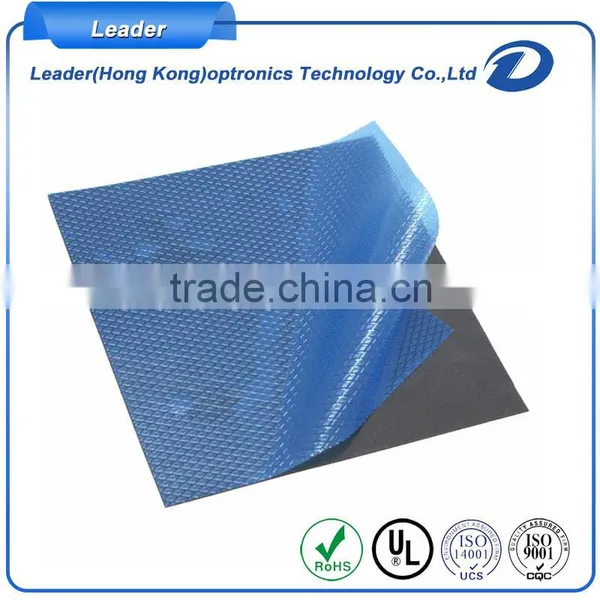

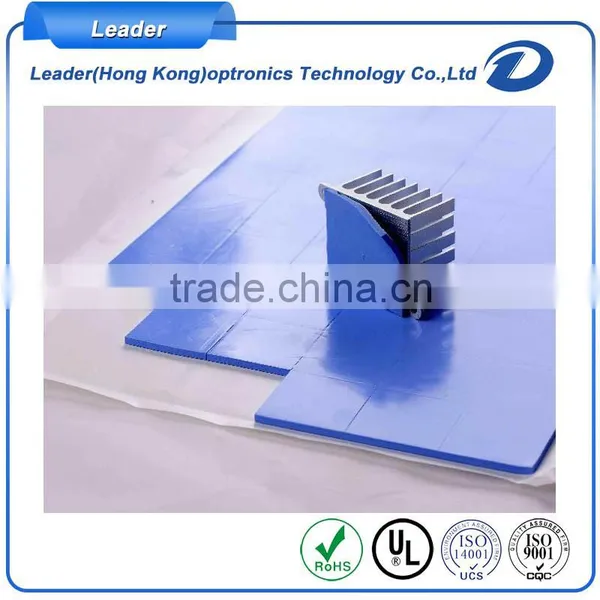

Help Center1.0-5.0w/m.k Thermal Conductive Silicone Pad for Gap Filling
Related Products
Features&Benefits:
-Thermal conductivity:1~5w/m.k
-Moderate tack on both sides
-High conformability to uneven surfaces at low stress application
-Electrical isolating
-Very cost effective
Configurations:
-Roll form,sheet form,die-cut parts
-Tape application available
Thickness available:
0.5mm-12.0mm,increment by 0.5mm
Typic Properties of Leader Thermal Conductive silicone pad series:
| Typical Properties of Gap Pad Series | ||||||||
| Property | Unite | LD8100C | LD8100+F100 | LD8150 | LD8200 | LD8250 | LD8300 | Test method |
| Color | *** | White Grey | Pink&White | Dark Grey | Dark Grey | Yellow | Blue | Visual |
| Thickness | mm | 0.3-12.0 | 0.5-15.0 | 0.5-10.0 | 0.5-10.0 | 0.5-5.0 | 0.5-5.0 | ASTM D374 |
| Density | g/cc | 1.8 | 2 | 2.5 | 2.8 | 3 | 2.7 | ASTM D792 |
| Hardness | Shore C | 30±5 | 15±5 | 25±5 | 25±5 | 25±5 | 25±5 | ASTM D2240 |
| Tensile Strength | KN/m | 0.85 | 2.5 | 0.47 | 0.33 | 0.42 | 0.29 | ASTM D412 |
| Continuous Use Temp | ℃ | -40~150℃ | -40~150℃ | -40~150℃ | -40~150℃ | -40~150℃ | -40~150℃ | EN 344 |
| Electrical | ||||||||
| Breakdown Voltage | Kv/mm | ≥6.0 | ≥6.3 | ≥5.2 | ≥6.0 | ≥5.3 | ≥4.8 | ASTM D149 |
| Volume Resistivity | Ω.cm | 1.2x1011 | 6.2x1015 | 8.0x1015 | 1.0x1016 | 3.2x1016 | 3.2x1016 | ASTM D257 |
| Flame Rating | V-0 | V-0 | V-0 | V-0 | V-0 | V-0 | V-0 | UL 94 |
| Thermal | ||||||||
| Thermal conductivity | W/m.k | 1 | 1 | 1.5 | 2 | 2.5 | 3 | ASTM D5470 |
|
Remark: 1,Date for design engineer spec.Reference only.Engineers are remind to test the material in application. 2,The different thermal conductive pad have different application areas,any application solution question, welcome to contact Leader Team.
| ||||||||
Q:What’s the thermal conductivity test method given on the data sheet?
A: All the data in the sheet are tested out by the third party. ASTM D5470 is utilized to test the thermal conductivity.
Q: How to find a right thermal conductivity for your application?
A: It depends on the watts of power source, ability of heat dissipation. For any customers, please contact us for the technical support.
Q: Are thermal pads offered with tacky?
A: Yes, all the thermal pads have its inherent tacky. All the models are natural tacky for two sides, except for the LD8100U,only one side has natural tacky.
Q: Are thermal pads reworkable?
A: It’s depend on the application and the pad being used. Thermal pads have been reused before, however,it’s up to the judgment of product designer, to see whether the pads could withstand reuse.
Q:Will the heat make the thermal pads softer?
A: From -60-150,there is no significant change in the hardness of thermal pads, as gap filler.
Q: What’s the tolerance for the thickness?
A :Normally ±10%.
Q: Are the thermal pads electrical insulating?
A: Yes, all thermal pads are electrically isolated.
Q: What’s the shelf life for thermal pads?
A: Shelf life for thermal pad is one year after the date of manufacture. For the pads with adhesive, the shelf life is 6months after the date of manufacture. After these dates, all the characters should be retested.
Q: Can the thermal pads be with fiberglass?
A: YES, we could have thermal pads with fiberglass center to improve customer specific requirements for the tensile strength.LD8100U has fiberglass on its surface, all other models will be made at your requirement.
