Help CenterGW5 Series Outdoor ac High Voltage Disconnect Switch
Related Products
-
GW4-12(17.5-40.5) Outdoor High Voltage Disconnect SwitchNegotiableMOQ: 1 Set -
12kv FKN12-12RD Series Indoor High Voltage Air Blast Type Load Break Switch With Fuse Combination ApparatusNegotiableMOQ: 1 Set
-
FN7-12 Series Indoor H.V.Load Switch With Fuse Combination ApparatusNegotiableMOQ: 1 Set
-
XRNT H.V Current-limiting Series FusesNegotiableMOQ: 1 Set
-
Series Lndoor AC High Voltage Load Break Switch-Fuse Combination ApparatusNegotiableMOQ: 1 Set
SPECIFICATION
GW5 series outdoor disconnect switch is the most common equipments in eletric system.Its main function is isolating high voltage when the equipments or circuit do the maintenance, to ensure safety. GW5 cannot break the load current and short-circuit current, need to use cooperatively with circuit breaker.When power cut firstly separate breaker then separate discoonect switch; when power on firstly close disconnect switch, then close breaker.

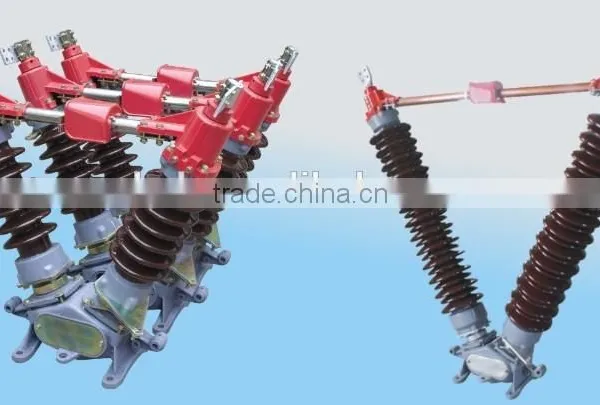

GW5 series outdoor disconnect switch belong to double column V shape, horizontal open-type.Each single stage composed pf substrate, supporting insulator, outlet power, contact, etc.If fixed by two 50 included angle substrate,supporting insulator and two supporting insulator make the angle to each other, and install the bearing of substrate, vertical with substrate.Leading electric part separate install on the two supporting insulator, make the 90 rotate together with the supporting insulator.
AMBIENT CONDITION
1. Altitude: under 1000-3000M
2. Ambient temperature : -25C----+40C,cold areas -40℃;
3. Wind pressure: ≤8
4. Ampitude: Earthquake degree 8
5. Application occasions shoulde free from fire, inflammables, explosives, corrosives and severe vibration
6. anti-pollution type suitable for serious polluted area, but should not has the material which can cause fire/explode.
PRODUCT FEATURE
1.Complete in specifications, high technical parameters is high, wide range.Additional, wide scope of application, it can be used for high layout.Installation wat is flexible.
2.Perfect sealing performance and resistant to rust
3.Simple, reliable mechanical rotating way.
4.Perfect dustproof, waterproof, and anti-corrosion ability.
5.Full set of steel galvanized foundation frame and the vertical and horizontal dwang for option.
MODEL IMPLICATION
TECHNICAL SPECIFICATION
Rated voltage |
A |
A1 |
H |
E |
C |
D |
40.5 |
1200 |
1075 |
1070 |
1400 |
240 |
300 |
72.5 |
1600 |
1285 | 1295 |
2200 |
240 |
300 |
123 |
2000 |
1660 | 1695 |
3000 |
240 |
300 |

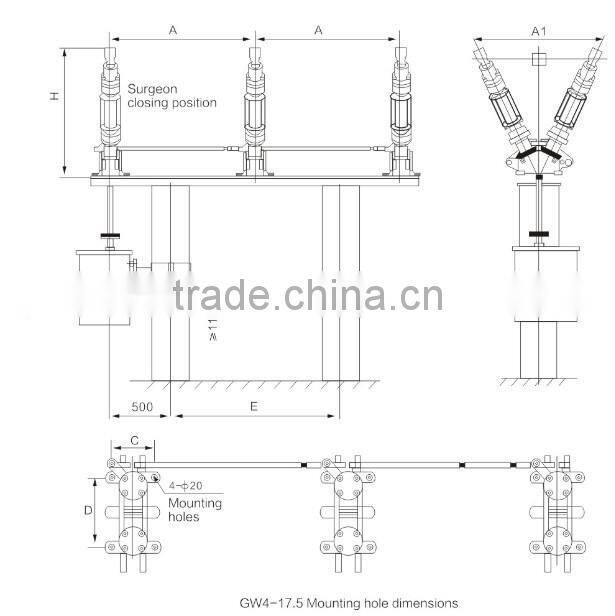

OVERALL DIMENSION
