Help Center7.7nm 50hz ac Servo Motor Kit
Related Products
Specifications
1' 220V AC 50hz 3 phase2' 2500 ppr TAMAGAWA incremental encoder
3' rated power 2.0kw
4' 2500rpm, 7.7nm
5' CE, ISO, TUV

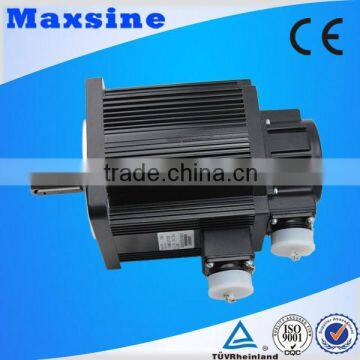

7.7nm 50hz ac servo motor kit
About our company
Wuhan Maxsine Electric Co., Ltd.was established in East Lake Development District, Wuhan City, Hubei province in 2004.Since its inception, it has been committed to provide advanced products and firstclass services to customers in the industrial automation field.Alldigital AC Servo Driver and Permanent Magnet AC Servo Motor are core products of the company. With continuous effort of the staff for nearly 10 years and technical accumulation and innovation of the technical team for more than 20 years,the company has succeeded in holding both technology leading status and the biggest market share in China. At present, the products of Wuhan Maxsine Electric Co., Ltd such as Permanent Magnet AC ServoMotor and Servo Driver have been chosen and approved by more and more customers and been widely used in the numerical control machine tools, textile machinery, packaging machines, printing machines, cutting machine, marking machines, industrial robots and many other industrial automation fields. Also, its customers have covered many domestic and international areas such as Mainland China, Taiwan, Southeast Asia Nations, India, South Africa, Russia, Brazil and other regions.
Maxsine Products:
All-digital AC Servo Driver:
EP100 series, EP1 series, EP1C series, EP2 series, EP3 series, currently covers power range from 50 W to 5.5 kW.
Permanent Magnet AC Servo Motor:
40 series, 60 series, 80 series, 110 series, 130 series, 150 series, 180 series, currently covers torque from 0.6 Nm to 35 Nm and power from 50 W to 5.5 kw.
Introduction of servo motor
1' Motor Model: 130ST-M07725
2' Detailed Parameters
| Motor Model | 130 series | |||||||
| M04025 | M05025 | M06025 | M07725 | M10015 | M10025 | M15015 | M15025 | |
| Rated Power(W) | 1 | 1.3 | 1.5 | 2 | 1.5 | 2.6 | 2.3 | 3.8 |
| Rated Line Voltage(V) | 220 | 220 | 220 | 220 | 220 | 220 | 220 | 220 |
| Rated Line Current (A) | 4 | 5 | 6 | 7.5 | 6 | 10 | 9.5 | 13.5 |
| Rated Speed (rpm) | 2500 | 2500 | 2500 | 2500 | 1500 | 2500 | 1500 | 2500 |
| Rated Torque (N·m) | 4 | 5 | 6 | 7.7 | 10 | 10 | 15 | 15 |
| Peak Torque (N·m) | 12 | 15 | 18 | 22 | 25 | 25 | 30 | 30 |
| Rotor Inertia (kg·m2) | 0.85×10-3 | 1.06×10-3 | 1.26×10-3 | 1.53×10-3 | 1.94×10-3 | 1.94×10-3 | 2.77×10-3 | 2.77×10-3 |
| Weight (kg) | 7.7 | 8.2 | 8.9 | 10 | 11.5 | 11.5 | 14.4 | 14.4 |
| Lines of Encoder (PPR) | 2500 | |||||||
| Motor Insulation Class | ClassB(130°C) | |||||||
| Protection Level | IP65 | |||||||
| Operating Environment | Temperature:-20°C ~ +50°C; humidity:relative humidity (RH)<90%(not including condensing condition) | |||||||

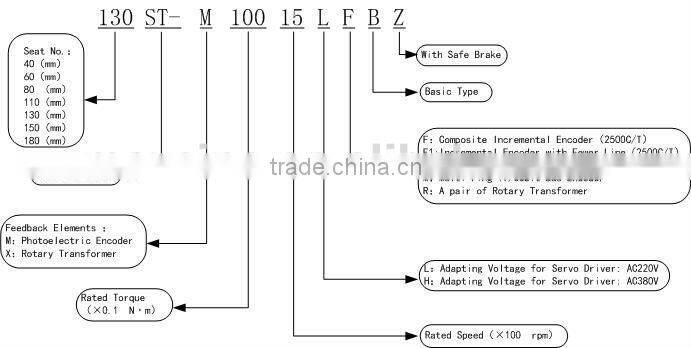

3' Introduction of Servo Motor Models
Frame size: 40,60,80,90,110,130,150,180
Feedback Component Mark: M is Photoelectric Encoder
Performance Parameter Mark: First Three are Rated Torque
Last two are Rated Speed
e.g.:Performance Parameter Mark 07725 indicates the rated torque is 7.7Nm, rated speed is 2500rpm.
Derved Mark: Z-electric brake

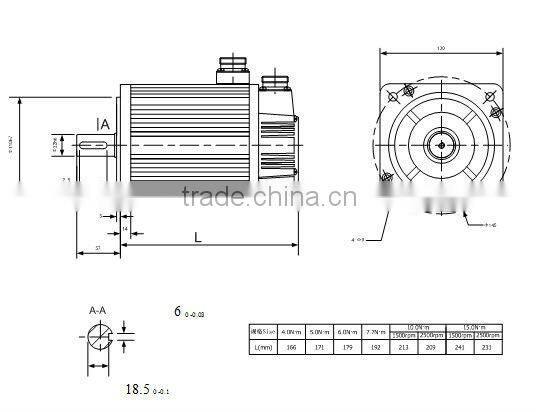

4' Installation Dimension
Installation precaution:
1) Installation/disassembly components coupled to the motor shaft end ,do not hit shaft hard to prevent the other side
of motor shaft encoder was knocked out bad.
2) Striving to make the best of its shaft toprevent vibration and bearing damage.
