Specifications
1' 220V AC 50hz 3phase2' Pulse and analog control
3' rated power 0.1kw
4' USB interface, MODBUS
5' CE, ISO, TUV

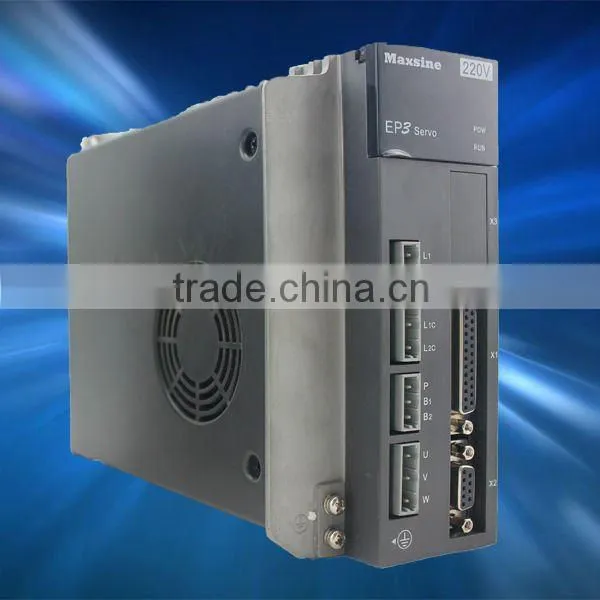

Pulse control ac servo motor controller passed CE
About our company
Wuhan Maxsine Electric Co., Ltd. was established in Wuhan City in 2004. All-digital servo driver EP3 and Permanent Magnet servo Motor are core products. With continuous effort of the staff for nearly 10 years and technical accumulation and innovation of the technical team for more than 20 years, our company has succeeded in holding both technology leading status and the biggest market share in China. At present, our products have been widely used in the numerical control machine tool, textile machinery, packaging machine, printing machine, cutting machine, marking machine, industrial robot and many other industrial automation fields. Also, our customers have covered many domestic and international areas such as Mainland China, Taiwan area, Southeast Asia, India, South Africa, Russia, Brazil and other countries and regions.
a. Product models
GL series:GL1A0/GL3A0/GL7A5/GL120/GL160/GL190/GL240
GH series:GH3A5/GH5A4/GH8A5/GH130/GH170
b. Product features
Designed and produced by market demand, EP3 series Multifunctional AC Servo Driver adopts advanced control algorithm and intelligent power module (IPM), which could realize precise digital control on torque speed and position. Designed on the basis of EP2 series, functions of USB Interfaces , sustaining Modbus agreement and internal simple PLC are added. This series includes 3phrase 220V series and 3phrase 380V series. The feedback mode is 2500 line incremental encoder or 17 bit absolute encoder, which could support 16 bit current sampling and 16 bit external analogue sampling accuracy.
Resonance inhibition:could be realized by adjusting internal parameters and wave trap.
PLC Function:could be realized by editable interior position,speed parameters and external I/O
Defensive function:A variety of error detection mechanism like overvoltage,overcurrent,overload,speeding,abnormal encoder etc.
Modbus Interfaces:support standard Modbus agreement
USB PC Interfaces:connect with PC and offer parameter setting.
Signal output of Encoder:could set parameter and then output the encoder signal on setting fractional frequencyvalue by lines.
c. Introduction of EP3 Models
d. Introduction of EP3 Size
Note: EP3 series has different appearance depend on different models. Please see the details on related use manual.
| GH3A5/GH5A4 | GH8A5 | GH130 | GH170 | |
| A | 180 | 180 | 180 | 210 |
| B | 95 | 95 | 105 | 115 |
| C | 168 | 200 | 220 | 250 |
| D | 158 | 189 | 209 | 239 |
| E | 65 | 65 | 94 | 104 |
| GL1A0 | GL3A0 | GL7A5 | GL120 | GL160 | GL190 | GL240 | |
| A | 150 | 150 | 180 | 180 | 180 | 180 | 210 |
| B | 55 | 65 | 85 | 95 | 95 | 105 | 115 |
| C | 168 | 168 | 168 | 168 | 200 | 220 | 250 |
| D | 158 | 158 | 158 | 158 | 189 | 209 | 239 |
| E | - | 55 | 65 | 65 | 65 | 94 | 104 |
e. Other pictures
