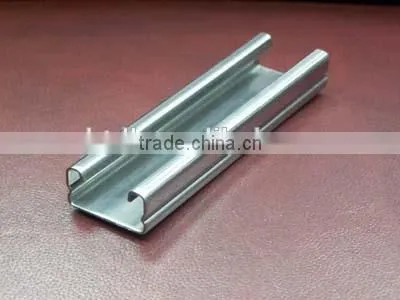

1-5/8" Galvanized Steel Strut Channel
US$ 2 - 5
MOQ: 1000 Meters
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
HENG TONG, HENGTONG
Model Number:
P41, P4121
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Jiangsu, China
Brand Name
HENG TONG, HENGTONG
Model Number
P41, P4121
Material
Other, Stainless Steel, carbon steel/stainless steel
Specifications
1-5/8" Galvanized Steel Strut channelSize:41*41mm and 41*21mm
Thickness:1.5mm to 3.0mm
Length:3m,5.8m,6m
1-5/8" Galvanized Steel Strut channel
Features:
1) P41series strut channel are manufactured from Q235/Q215 with galvanized finish or epoxy coating.
2) Wall thickness is 2.5mm, standard delivery length is 3m or 6m.
3) Wall thickness can be 2.0mm and 1.5mm for light hanging system, for beam load capacity, use 80% and 60% of appropriate load chart separately.
4) When P41 series are used as beam, multiply uniformly distributed load from the table by 0.5 for concentrated load and corresponding deflection by 0.8.
5)Channels with side ribs, for beam load capacity, use 120% of appropriate load chart separately.
we can product according to client's requirement or drawings
