PVC Profile Production Line
Application:

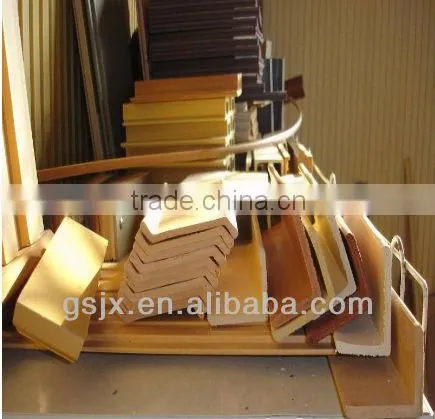

Plastic Profile is mainly used in PVC door & window profiled material,wide door plate, window plate, extrusion of multi-holes pipe for passing through lines(four holes, six holes, seven holes, nine holes, etc. )
PVC Profile Production Line ---advantages:
1.Needless granulating of materials, mixed with wood powder, the material can be directly used to extrude wood-plastic profiles.
It's a new environment-protecting product, which combines the wood powder and plastic powder at a certain percent
2.Also suitable material: PE, PP+ Wood powder, PVC+ Wood powder.
3.Applicable for producing salver, packaging box board and decorative sheets, etc.
4.PVC Profile Production Line has compact structure, good plastification, high output, long life and other advantages. This line uses SJZ92 conical twin-screw extruder with DC motor, imported electronic components and PT100 platinum resistance, which provide wide adjusting range and precise temperature control.

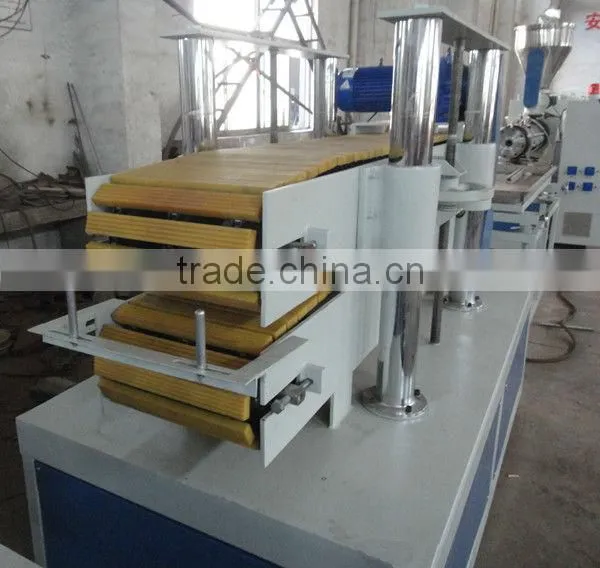

5.The down stream equipment includesvacuum calibration and cooling unit,haul off unit, cutting machine and stacker.The calibration unit is equipped with large forced cooling system so that it can provide perfect calibration effect.
6.The haul-off unit uses two lines of caterpillar.The lower one is fixed and the upper one can be adjusted according to the plate size.
PVC profile production line--- Main Machine list:
Name |
Quantity |
|
Mixing unit
|
1set |
|
Automatic loader
|
1set |
|
Conical twin screw extruder
|
1set |
|
Mould and calibrating
|
1set |
|
Vacuum calibrating table
|
1set |
|
Haul-off machine
|
1set |
|
Cutter machine
|
1set |
|
Tipping stacker
|
1set |
PVC Profile Production Line ----data sheet:
| Item | SJYF1 | SJYF2 | SJYF3 |
|
Sharping Table Length(mm)
|
2100 | 4000 | 6000 |
|
Vacuum Pump(set)
|
1 | 3 | 4 |
|
Max. Pumping Volume(m/min)
|
0.48 | 10 | 12 |
|
Cross Adjustment of Shaping Table(mm)
|
80 | 40 | 80 |
|
Up-Down Adjustment of Shaping Table(mm)
|
100 | 200 | 60 |
|
Max. Drawing Force(N)
|
3000 | 25000 | 30000 |
|
Max. Grip Force(N)
|
2500 | 15000 | 20000 |
|
Drawing Speed(m/min)
|
0.3-4.5 | 0.4-6 | 0.4-4 |
|
Max. Cutting Size(mm)
|
100x70 | 210x160 | 210x120 |
|
Total Power (dont including extruder)(kw)
|
5 | 29 | 35 |
|
Appearance Size (LxWxH)(mm)
|
16000x1200x1600 | 24000x1500x1800 | 28000x1600x1800 |
|
Weight(kg)
|
2000 | 4500 | 6000 |

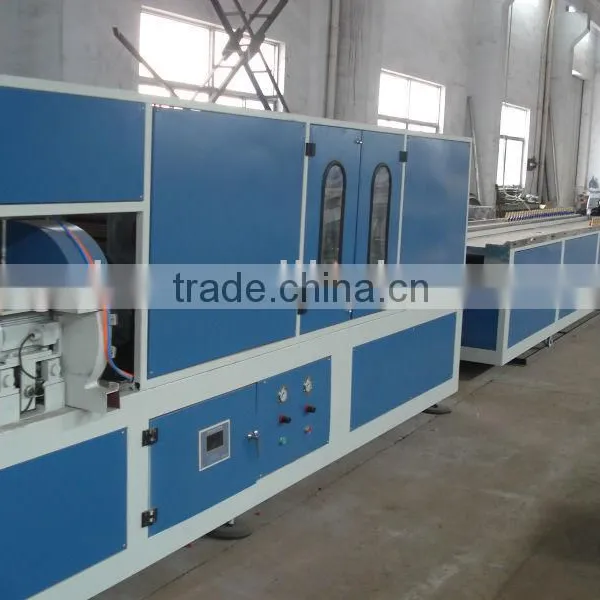

PVC Profile Production Line Flow:
If you are interested in our machine,please feel free to contact us.
