Waste PP PE Double Stage Plastic Recycling Granulator Price
Application:
The recycled plastic pellet machine line is used to pelletize the scraps to pellets. But this line has an agglomerator tank on extruder, it is suitable for all kinds of plastic film, such as PE, HDPE, LDPE, LLDPE

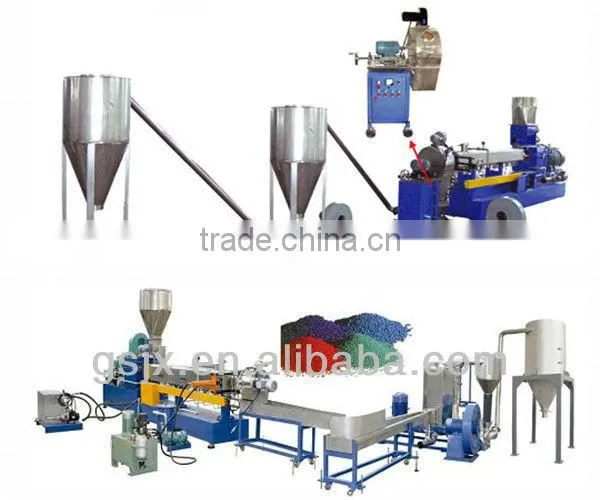

Waste PP PE Double Stage Plastic Recycling Granulator ---Detailed description
1. Conveyor:convey PP PE film or flakes into compactor.
2. PP PE film force feeding machine:force feed film chips,rigid scraps into extruder,to make the the production capacity high and stable.
3.Extruding system:plasticizing material and exhausting gas.
4.High speed Net exchanging system and Die-head:filter material impurity,to make production more stable.
5.water ring pelletizing machine:cutting pellets in water.
6.Water tank:cooling pellets.
7.Dewater machine:make pellets dry.
8.Vibration sieve:remove bad pellet and keep good pellet.
9.Air Blower:convey good pellets into silo.
10:Storage silo:keep pellet.
1. The process of this automatic production line for plastic extrusion and pelletizing is as following:
Extruding----water cooling----drying----cutting---pelletizing.
Waste PP PE Double Stage Plastic Recycling Granulator --data sheet:
Model |
Main extruder Screw diameter |
L/D |
Sub-extruder extruder Screw diameter |
L/D |
Capacity |
Total power |
Line length |
|
SJ100
|
100 |
34:1 |
100 |
10:1 |
200 |
200 |
12 |
|
SJ120
|
120 |
34:1 |
120 |
10:1 |
300 |
300 |
14 |
|
SJ150
|
150 |
34:1 |
120 |
10:1 |
400 |
400 |
16 |
Waste PP PE Double Stage Plastic Recycling Granulator --flow chart:
The end products:
If you are interested in our machine,please feel free to contact us.
Thanks and best regards.
Amy Su
