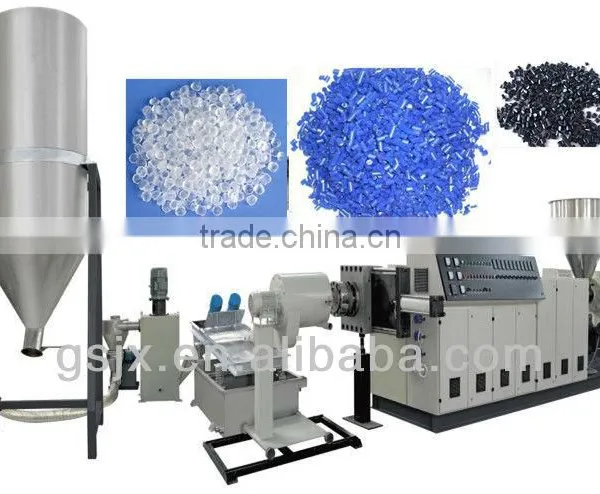

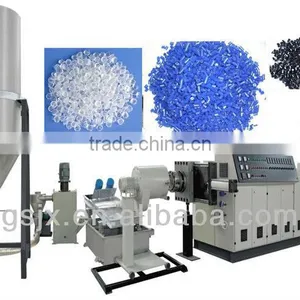

PE PP film double stage plastic pellet making machine
Feature:
Water ring type pelletizing line,recycling PP PE film bags,make them into pellets
Processing capacity can be 100-600kg/h
Main parts: host machine, oil lubrication system, soft water circulation system, vacuum system, hydraulic screen changer and die, water tank, air knife, pelletizer, electric cabinet etc.
Option auxiliary machines: side feeder, two stage side feeder, spiral conveyor, high speed mixer, vibrating sieve, product silo, automatic packing and sewing system etc.
Advantage: high speed high torque gearbox, rotating speed is up to 600rpm, high output, up to more than 600kg/h.
PE PP film double stage plastic pellet making machine ---include
1.Conveyor&Metal detector
2.Compaction warehouse.
3.Long screw extruder:38CrMoAlA with nitriding processing
4.Hydraulic change nets equipment
Double station hydraulic screen change filter
Working pressure <=20Mpa
Motor power: 2.2kw
Screen changer structure: plate type screen changing
Filtering screen plate: double station
Double station shifting speed <=2seconds
Material: 38CrMoAIA
Heating power: 12kw
Hydraulic station: are consist by motor, oil pump, energy saving device, pressure relay, direction changing valve, pressure adjusting valve etc…
Extrusion mold material: 45# steel treated by quenching and hardening
5.Short screw extruder:38CrMoAlA with nitriding processing
6.Pelletizer:Two type----Water-ring Pelletizing Machine or Braces particle cutting machine
7.Dewatering Machine
8.Fan drying machine & Hopper
1. The process of this automatic production line for plastic extrusion and pelletizing is as following:
Extruding----water cooling----drying----cutting---pelletizing.
2. Advanced control system ensures the smooth running
3. Power input system provides reliable measurements.
4. Capacity: 100-400kg/h
PE PP film double stage plastic pellet making machine ---flow chart:
PE PP film double stage plastic pellet making machine ---- following items:
No. |
Components |
Qty (set) |
1 |
Belt conveyor
|
1 |
2 |
Cutting compactor
|
1 |
3 |
Single screw extruder
|
1 |
4 |
Double vacuum air vent device
|
1 |
5 |
Double hydraulic screen-changer
|
1 |
6 |
Mould & cutting machine
|
1 |
7 |
Centrifugal dewatering machine
|
1 |
8 |
Vibrating screen
|
1 |
9 |
Blowing&storage silo device
|
1 |
10 |
Electrical Control System
|
1 |
11 |
Spare parts |
1 |
end products:
If you are interested in our machine,please feel free to contact us.
Thanks and best regards.
Amy Su
