PP PE PA ABS EVA Plastic Granulator Machine
System Configuration
Processing capacity can be 100-800kg/h
PP PE PA ABS EVA Plastic Granulator Machine--- data:
1.Belt conveyor: feed the clean films or bags into the cutting compactor.
2.Metal detector:check whether there is metal in the films or bags, protect the blades of cutting compact and screws.
3.Cutting compactor:cut the materials again and make materials shrink, then force feed the shrunk material into the extruder. For the same capacity, the power consumption is only 50% of the agglomerator.
4.Single screw extruder: for plasticizing the materials and exhausting the gas, it is made of 38CrMoAlA generally.
5.hydraulic screen changer: filter the impurities, improve the granules quality
6.Water ring Pelletizer:includes mould and pelleting blades, we can provide both vertical type and horizontal type.
7.Water cooling tank: use circular water for cooling the granules immediately after pelleting cut.
8.Vibration screen:to filter out non-standard pellets and get even uniform quality pellets.
9.Vertical dewatering machine: convey the granules helically from bottom to top, the rotary rotor and the stainless screen help to drain the water, and convey the granules out from the machine
10.Blower system:use the blower to blow the granules to the storage silo through the SS304 pipe.
11.Storage silo:for storing the final pellets.
12.Control system: use SUZHOU SIEMENS contactor, Omron temperature controller, ABB or Japan Yolico inverter and China famous electrical components.
8.Fan drying machine & Hopper

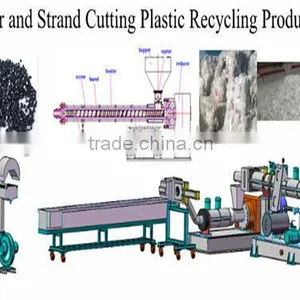

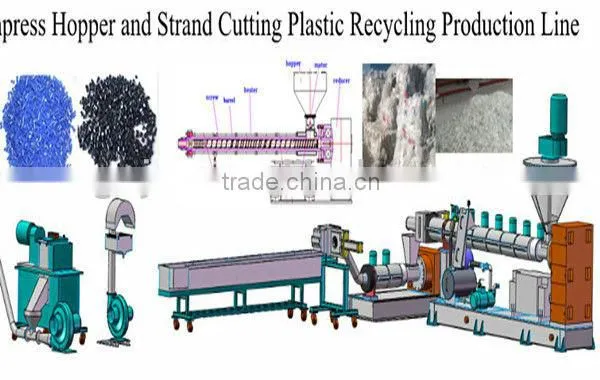

PP PE PA ABS EVA Plastic Granulator Machine--flow chart:
PP PE PA ABS EVA Plastic Granulator Machine--data sheet:
Model |
Main extruder Screw diameter |
L/D |
Sub-extruder extruder Screw diameter |
L/D |
Capacity |
Total power |
Line length |
SJ100-100 |
100mm |
33:1 |
100mm |
10:1 |
250 |
200 |
12 |
SJ120-120 |
120mm |
33:1 |
120 |
10:1 |
350 |
300 |
14 |
SJ150-150 |
150mm |
33:1 |
120mm |
10:1 |
450 |
400 |
16 |
PP PE PA ABS EVA Plastic Granulator Machine-- consist items:
No. |
Item Name |
Quantity |
1 |
Screw auto loader
|
1 set |
2 |
Single screw Extruder With vacuum degassing With hydraulic screen changer With string die head
|
1 set |
3 |
Water bath
|
1 set |
4 |
Air dryer |
1 set |
5 |
Cutting Pelletizer
|
1 set |
6 |
Vibrosieve |
1 set |
7 |
Blower + silo
|
1 set |
8 |
Electric cabinet |
1set |
the end products:
If you are interested in our machine,please feel free to contact us.
Thanks and best regards.
