Home > Products > Plastic Extruder > 45mm single screw mini plastic extruders
45mm single screw mini plastic extruders
- 2 Set / Sets per Month
- Shanghai
- T/T
Product Details
Condition: | New | Application: | Pipe | Plastic Processed: | PE |
Screw Design: | Single-screw | Automatic Grade: | semi-automatic | Place of Origin: | Jiangsu, China |
Brand Name: | Gaosheng 45mm single screw mini plastic extruders | Model Number: | SJ45 single screw mini plastic extruders | Voltage: | 380V 50HZ single screw mini extruder |
Power(W): | 30kw | Certification: | CE |
Product Description
45mm single screw mini plastic extruders
Appliance:
Mini Plastic Extruder is mainly used for experiment, that used for testing and extruding thermo-plastic such as soft hard polyvinyl chloride (PVC) and polystyrene(PE) coordinated with the appropriate auxiliary machine,(including the die).
This Mini Plastic Extruder is advanced in design, good in plasticization and low in energy consumption. The extruder is characterized by low noise, stable working, big bearing capacity and long service life.
single screw mini plastic extruders--data sheet:
SJ45/25 mini extruder Main Technical Parameter | |
Screw, barrel | Adopt 38 CrMoAlA, Nitriding Nitriding thickness: 0.5-0.7mm Surface rigid: 800-900HV |
Screw Diameter | 45mm |
Screw Length-diameter Ratio | 25:1 |
Main Motor Power | 7.5KW |
Main Motor Timing Method | ABB Inverter |
Gearbox | ZLYJ146 rigid gear gearbox |
Barrel Heating Method | Stainless steel heater |
Barrel Heating Power | 2.5KW×4Zones |
Main Electrical Equipment | Japanese OMRON Temperature Control Meter Siemens Contactor Shanghai Tayee button |

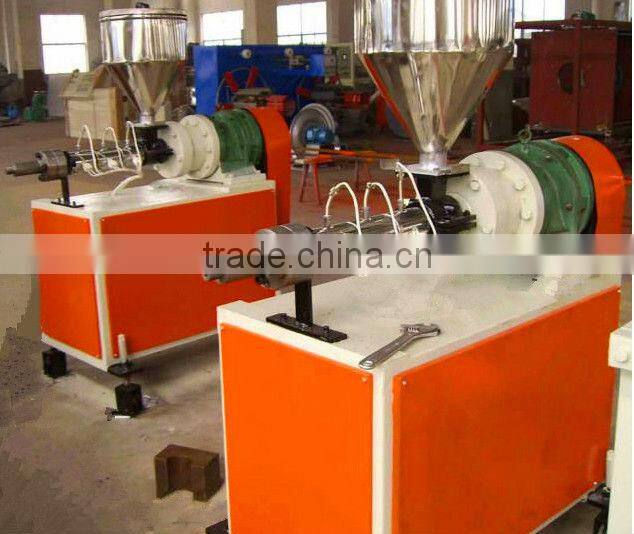

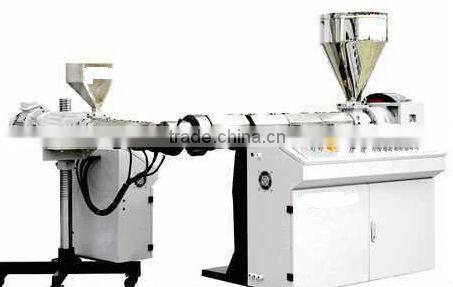

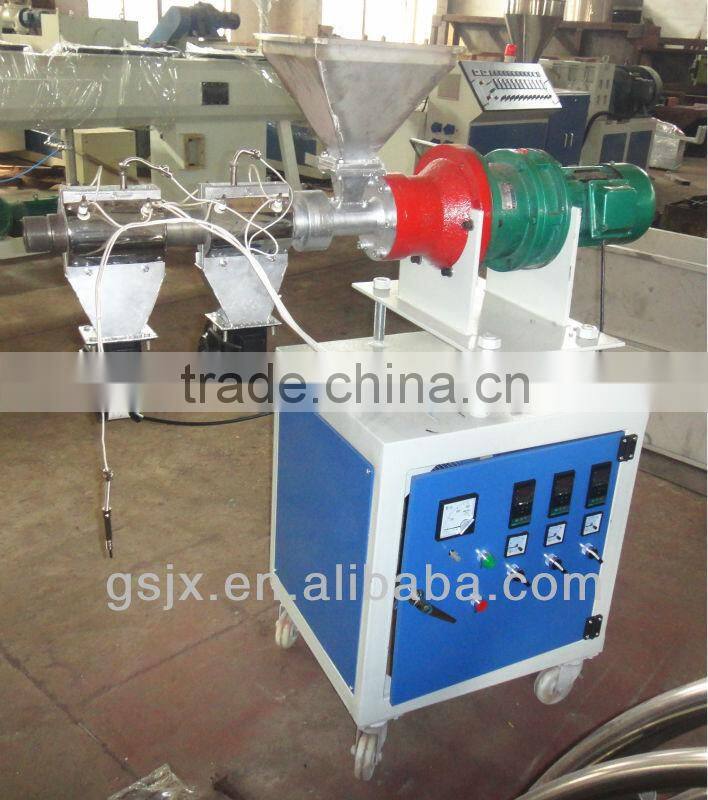

single screw mini plastic extruders --picture:
single screw mini extruder detail information:
If you are interested in our machines and want to know more information about our machines,please feel free to send your inquiry to us,we'll try our best to serve you.
Hopefully we can succeed in cooperation and establish long term business relationship.
Best regards.
Amy Su
