2015 PVC Drainage Pipe Extruder PVC Pipe Production Line
- 36 Set / Sets per Month
- Shanghai
- T/T
Product Details
Condition: | New | Application: | Pipe | Plastic Processed: | PVC |
Screw Design: | Double-screw | Automatic Grade: | automatic | Place of Origin: | Jiangsu, China |
Brand Name: | Gaosheng 2015 PVC Drainage Pipe Extruder PVC Pipe Production Line | Model Number: | SJZ65 2015 PVC Drainage Pipe Extruder PVC Pipe Production Line | Voltage: | 380V50H or customized |
Power(W): | 75KW | Dimension(L*W*H): | 38*3.1*2.2m | Weight: | 15.9T |
Certification: | CE |
Product Description
2015 PVC Drainage Pipe Extruder PVC Pipe Production Line
Application:
1.It is estimated PVC pipe production line will have a potential huge market in plastic machinery.
2.This is PVC pipe used widely.i.e. water supply and drainage,liquid gas and oil transportation,sewage and builing industry.
3. They are widely used in fields of auto wire, electric thread-passing pipes, circuit of machine tool, protective pipes of lamps and lanterns wire, tubes of air conditioner and washing machine, etc.
2015 PVC Drainage Pipe Extruder PVC Pipe Production Line ----Main Technical Parameter:
PVC Pipe range | 20-110mm | 75-250mm | 110-315mm |
Extruder | SJZ51/105 | SJZ65/132 | SJZ80/156 |
Extruder power | 18.5kw | 37kw | 55kw |
Extrusion capacity | 120kg/h | 250kg/h | 360kg/h |
Max. Production speed | 10m/min | 10m/min | 3m/min |
2015 PVC Drainage Pipe Extruder PVC Pipe Production Line --process layout:
2015 PVC Drainage Pipe Extruder PVC Pipe Production Line --machine list:
1.extruder
I, Vacuum Calibrating Box
1. The dual tubing calibrating box is composed of two calibrating boxes with separate operation.
2. The length of calibrating box is 5m, stainless steel material
3. Cooling Forming: Spray
4. Two Water Pumps: 4KW×2 Made in Shanghai
5. Two Vacuum Pumps: 4KW×2
6. Liquid Level Height: it is automatically controlled by float valve.
7. Moving up and down, electric motor operation, the move distance is 1000mm or customized as customer requirement.

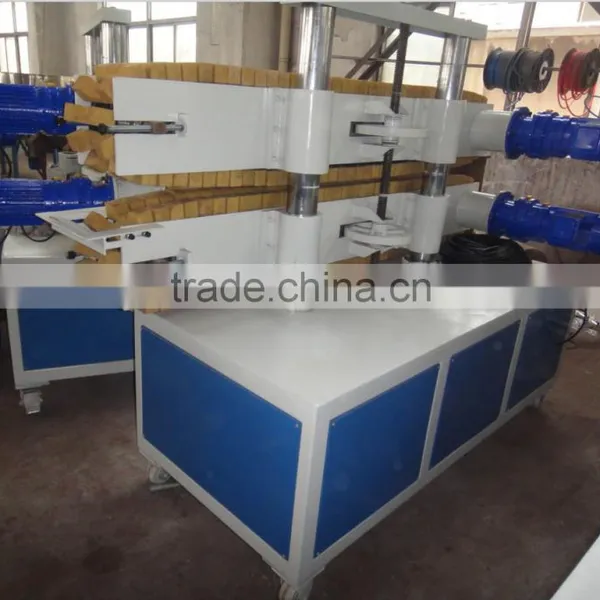

II, PVC PVC Pipe Production Line ---Dual Tubing Traction Engine
1. The dual traction engine is composed of two traction engines with separate operation.
2. Speed Governing Type: frequency converter speed governing, the converter is produced by Japan Panasonic Company.
3. Effective Traction Length is 950mm.
4. Gripping Form: Pneumatic Control
5. Traction Method: Special rubber belt traction, the width is 80mm
6. The drive is supplied by four aluminum alloy reducing motors.
7. Traction Power: 0.55KW×4
8. Traction Speed: 15 Meter/Minute or customized as customer requirement.
IV, hose coiler machine
1.Dual Tubing stack rack is composed of two stack racks with separate operation.
2. Automatic fixed length, controlled by position switch
3. Automatic overturn or customized as customer requirement.
Stacker:
2015 PVC Drainage Pipe Extruder PVC Pipe Production Line -- the end products:
FAQ:
•Q:What is your company main product?
A:Pipe making machine
•Q:Are you a factory or trade company?
A:We are a factory.
•Q:Where is your factory located?How can I visit there?
A:Our factory is located in Zhangjiagang city,Jiangsu Province,China,about 2 hours bus ride from Shanghai.All our clients,from home and abroad,are warmly welcome to visit us.
How to get your suitable machine or production line ?
• Find our products through in Google ,Baidu. Bing ,Yahoo, etc
•Enquiry: Contact us by email, phone call, fax, Instant Messenger (Trademanager, MSN, Skype) and let us know your enquiry.
• Discussion: Specify the items you desire, confirm specification; OEM/ODM consultation.
1.What kind of products will you produce?Pipe,Plastic profile,or Sheet?
2. What is raw material like?Granule type or powder type?
3. What kind of material ?PE,PVC,PPR,HDPE,UPVC:Pipe diameter, or other please inform us of details .
4. Sole machine or whole production line .
After Service:
We have 1 year warranty, and lifetime maintenance.
Within one year, if there is some accessory going wrong, we will send you the accessory at once, free of charge.
1). Within one month, if the machine is of any big fails, we will send you a new machine.
2). Within one year, if you send back the equipment for repair, we will be responsible for the repair, including the changes of accessories; Both of them are free of charge.
3). After one years, we offer to repair the machine, but we quire for the cost of the changed parts, not for manual cost.
4). No responsibility for man-made destroy.
5). If the buyer has any questions from our technical department, we can supply on-line service Or we can send professional engineers to help you debug them.
If you are interested in our machines, please do not hesitate to contact us.
Hope we can succeed in cooperation and establish a long term business relation.
Thanks and kind regards.
