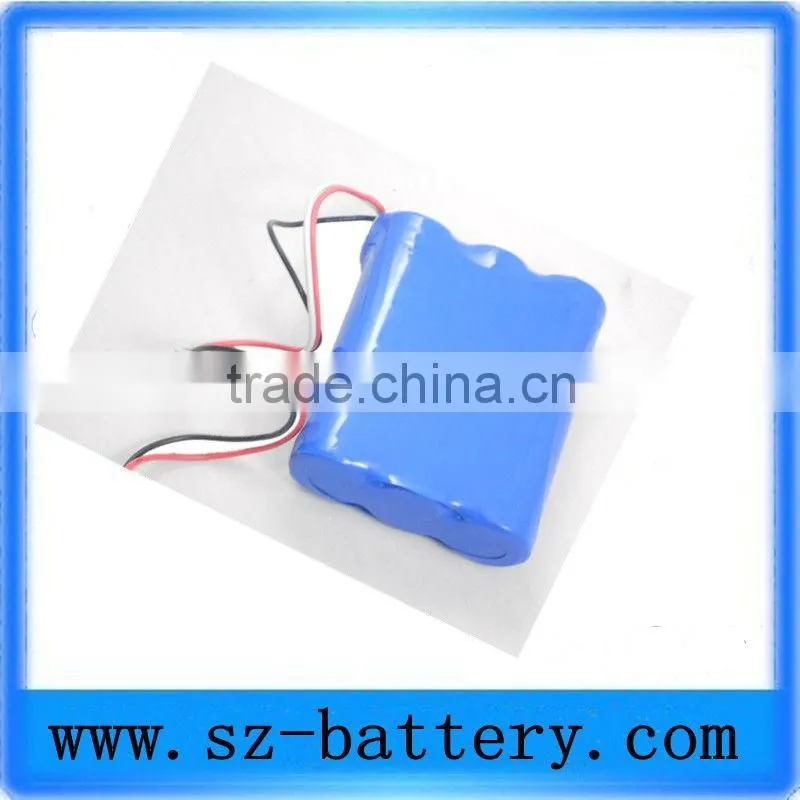

Replacement Power Tool Battery

US$ 1 - 10 MOQ: 50 Packs

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

HHS

Model Number:

HHS18650

Shenzhen Honghaosheng Electronics Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name HHS

Model Number HHS18650

Composed Type Other, 3S1P

Type Li-Ion

Components Other, Li-ion

Size 25*60*70mm

Voltage 12v

Weight 150g

Nominal Capacity 1.5ah

Application power tool

Specifications

replacement power tool battery
1.12v/1.5ah capacity
2.more than 300 cycle life

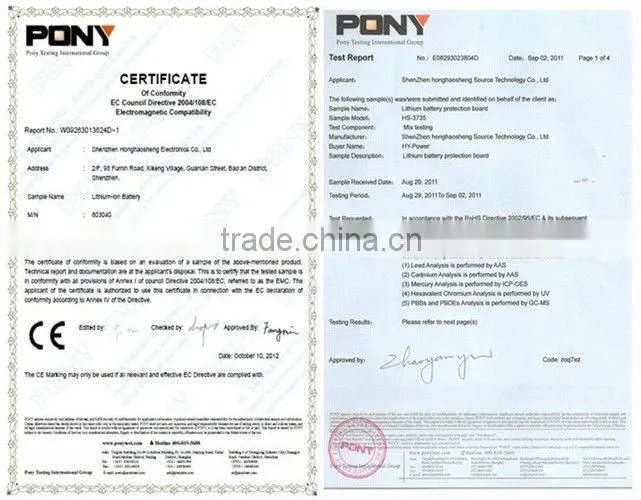

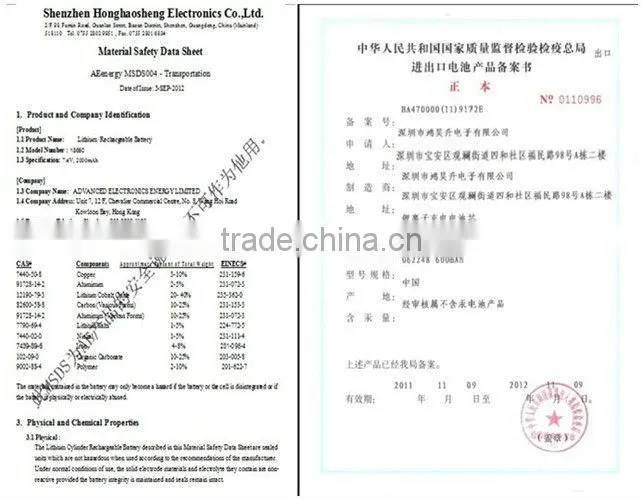

3.un38.3 and MSDS
4.OEM&ODM

Model	HHS18650
Nominal voltage	11.1v
Nominal capacity	1.5ah
Size	thickness × width × length (mm)
Size	25±0.5×60±0.5×70±0.5mm (with PCM)
Advantage	High energy density Safety and reliable(with PCM) Long cycle life no memory Never explosion,stable performance,environment friendly capacity and size could be customized
Weight	about 150g
Max charge current	1C
Charging method	charge with constant current 1C to 12.6v,then charge with constant voltage 12.6v, till charge current less than 0.01C
Max discharge current	1C
Discharge cut-off voltage	9v, the over-discharge detection voltage of PCM
Operating environment	Charging, 0°C ~ 45°C ; 65±20%RH
Operating environment	Discharging, -20°C~60°C ; 65±20%RH
Storage environment	-20°C~45°C
	65±20%RH
	storage for a long time(>3 months) and the storage condition shall be:<35°C;65±20%RH;
CycleLife (80% Prime Capacity) :	>300times
Charging Attention	Charging current and charging voltage should be less than specified in the Product Specification.
	The charger shall be designed to comply with Specification.
	It is dangerous that charging with higher current or voltage than Product Specification may cause damage to the cell electrical,mechanical safety performance.

PCM Parameter:

Over charge protection

Over charge detection voltage Over charge detection delay time Over charge release voltage

4.3*n(in series)±0.05V 80-200ms 4.1*n(in series)± 0.05V
Over discharge protection

Over discharge detection voltage Over discharge detection delay time Over discharge release voltage

2.4*n(in series)±0.1V 40-100ms
3*n(in series)± 0.1V
Over current protection

Over current detection voltage Over current detection current Detection delay time Release condition

150±30mV 2-5A 10-20ms
Cut load
Short protection

Detection condition Detection delay time Release condition

Exterior short circuit 5-50ms
Cut short circuit

High energy density
Weight of liion battery is half of the Ni-Cd or NiMh battery with same capacity,volume is 20%-30% of NiCd battery and 35%-50%NiMh battery.

High voltage
Voltage of one liion battery cell is 3.7V(average value),it's equivalent to equivalent to three NiCd or NiMh battery cell connected in series.

Pollution free
Liion battery do not contain harmful metallic substances such as Cd,Pb,Hg and so on.

Excluding lithium metal
Liion battery do not contain metal lithium,so it's not limited by the rules on the aerobus of prohibit to carry lithiun battery.

Long cycle life
In the normal condition,the cycle life of lithium battery is more than 500 time, LiFePO lithium battery can reach to 2000 times

No memory effect
Memory effect is a phenomenon of the capacity of battery reduced during the cycle of charge-discharge.Lithium battery absent of this effect.

Quick charge Charge with a 4.2V nominal voltage and constant current and voltage charger,it only take 1.5-2.5 hours to be full charged.
