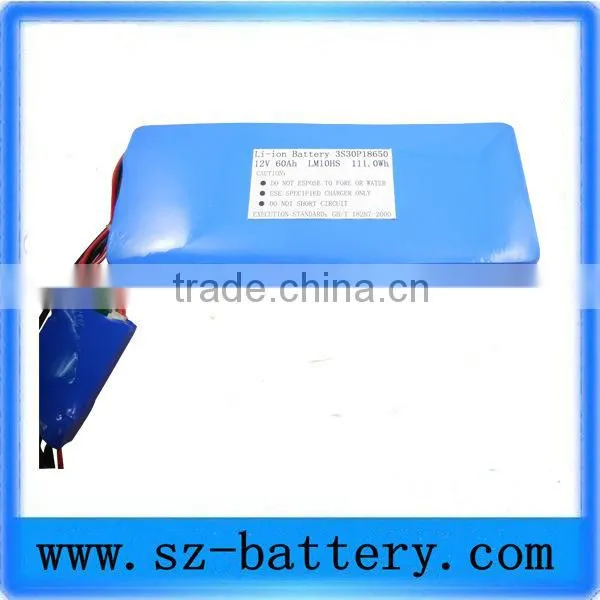

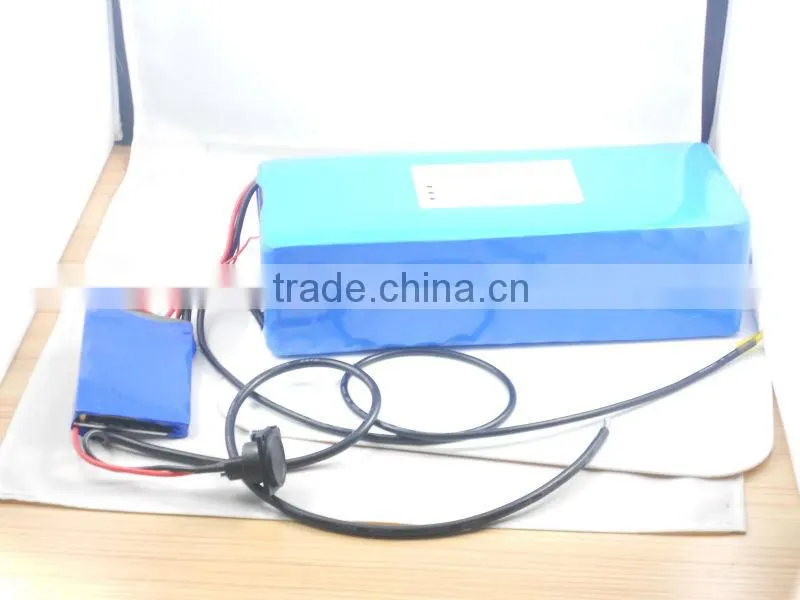

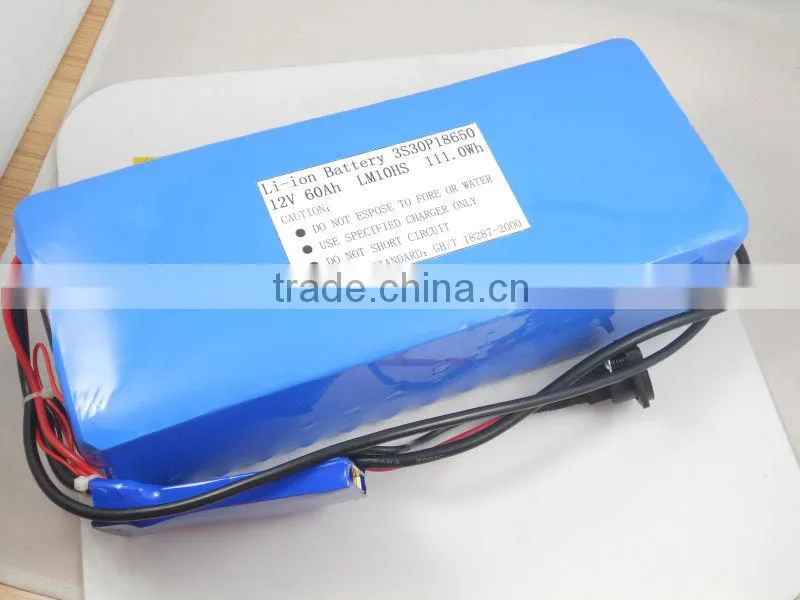

18650 Lithium Ion Type 12v 60ah Rechargeable Industrial Use Batteries Quality Choice

US$ 1 - 10 MOQ: 100 Pieces

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

HHS

Model Number:

18650

Shenzhen Honghaosheng Electronics Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name HHS

Model Number 18650

Type Li-Ion

Nominal Voltage Other, 11.1v

Size Other, T78*W112*L278mm

Nominal Capacity 60ah

Specifications

1.Size:T78*W112*L278mm
2.Max discharge current 2C
3.Warranty:12 Month
4.MOQ:50 SET
5.CE,ROHS,MSDS,UN38.3

1.Datasheet for the 12v 60ah 18650 lithium ion Industrial battery

Model	18650 pack
Nominal voltage	11.1v
Nominal capacity	60ah
Dimension	T78W112L278mm (with PCM)
Advantage	High energy density Safety and reliable(with PCM) Long cycle life no memory Never explosion,stable performance,environment friendly capacity and size could be customized
Weight	4.5kg
Max charge current	1C
Charging method	charge with constant current 1C to the maximum voltage,then charge with the constant voltage, till charge current less than 0.01C
Max discharge current	2C
Discharge cut-off voltage	3v, the over-discharge detection voltage of PCM
Operating environment	Charging, 0°C ~ 45°C ; 65±20%RH
Operating environment	Discharging, -20°C~60°C ; 65±20%RH
Storage environment	-20°C~45°C
	65±20%RH
	storage for a long time(>3 months) and the storage condition shall be:<35°C;65±20%RH;
CycleLife (Deep charge and deep discharge) :	about 300times
Charging Attention	Charging current and charging voltage should be less than specified in the Product Specification.
	The charger shall be designed to comply with Specification.
	It is dangerous that charging with higher current or voltage than Product Specification may cause damage to the cell electrical,mechanical safety performance.
