Help CenterSmall Continuous Casting Machine for Steel Billet Casting
Related Products
-
Used Continuous Casting Machine for SaleUS$ 60,000 - 600,000MOQ: 1 Set -
Copper Rod Upcasting Machine From Factory PriceUS$ 50,000 - 300,000MOQ: 1 Set
-
Copper Rod Continuous Casting Machine From Factory PriceUS$ 50,000 - 300,000MOQ: 1 Set
-
Billet Continuous Casting Machine for Foundry and Steel Plant Quality ChoiceUS$ 60,000 - 600,000MOQ: 1 Set
-
15 Years Professional Factory of Steel CcmUS$ 60,000 - 600,000MOQ: 1 Set
Introduction
1.Continuous casting radius: from R2m to R12m
2.Rounds diameter: 80-320sq.mm
3.strand No.: from 1 to 8
4.billet length: 3-12m
We can design and manufacture the up-to-date billet continuous casting machine in accor-dance with the user's steelmaking capacity, billet size, steel grades and the user's field con-ditions. This CCM can product rounds in size of Φ 80-320mm.
Tailor-made specification, factory area, foundation, and capacity, we follow your require-ments the line can be designed as curved and vertical- bend according to the Users requirements. It can cast carbon steel, alloy steel and special steel, such as stainless steel. Automatic hydraulic control, automatic secondary cooling water distribution, compressed air-water cooling system, EMS can be selected according to different steel grades.
Our engineer team provides technical support, design, feasibility report, manufacturing, erection and commissioning and cooperate with special institution. We not just export the machinery but the running factory!

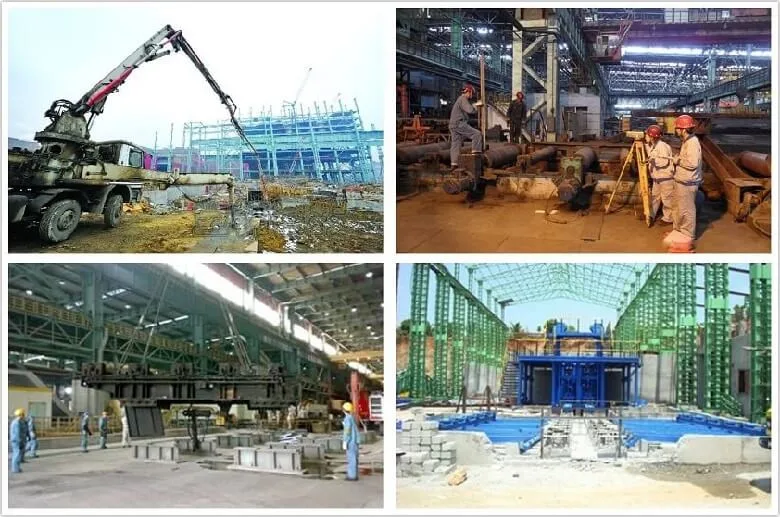

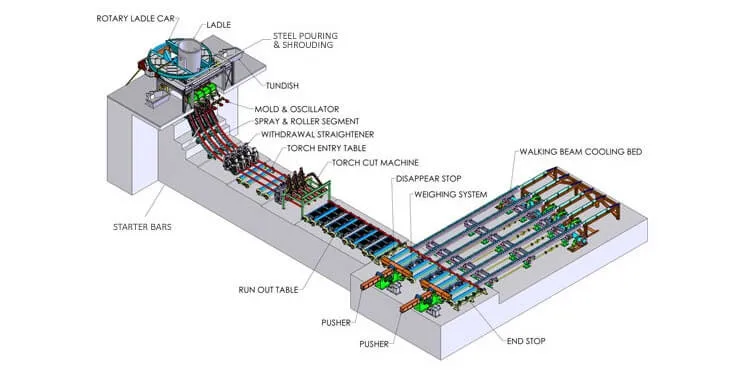

1. Equipment foundation and civil works
2. Steel structure platform
3. Casting radius
4. Strand number
5. Ladle support: There is three types ladle supports, including turret, ladle transfer car and fixed support.

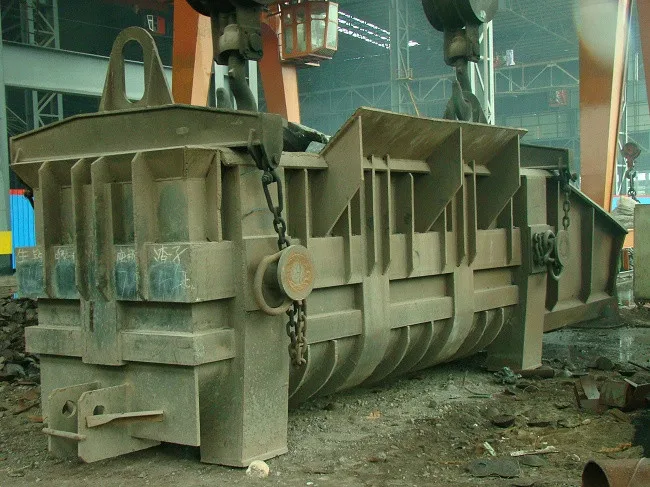

6. Tundish
7. Tundish car
8. Mould
9. Oscillation device
10. Secondary cooling system
11. Dummy bar
12. Dummy bar storage device

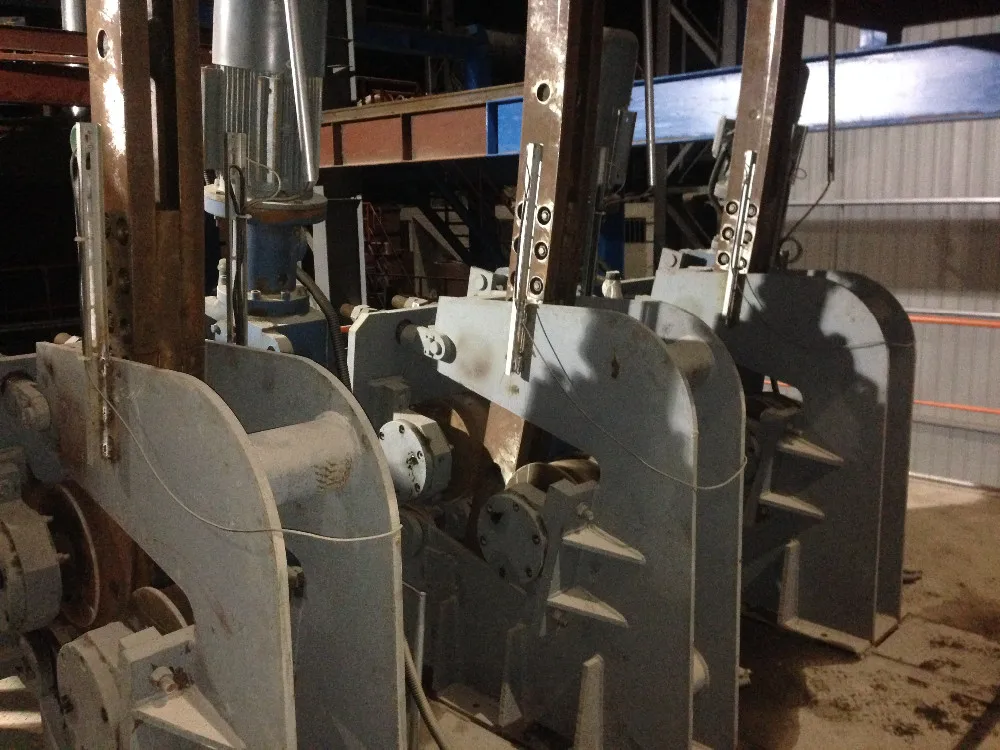

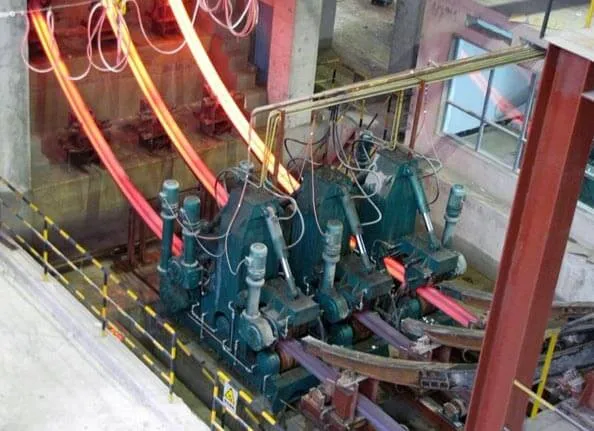

13. Withdrawal straightening machine
14. Approach roller table
15. Automatic cutting machine: flame cutting machine or hydraulic shearing
16. Transmit roller table
17. Cooling bed
18. Pusher

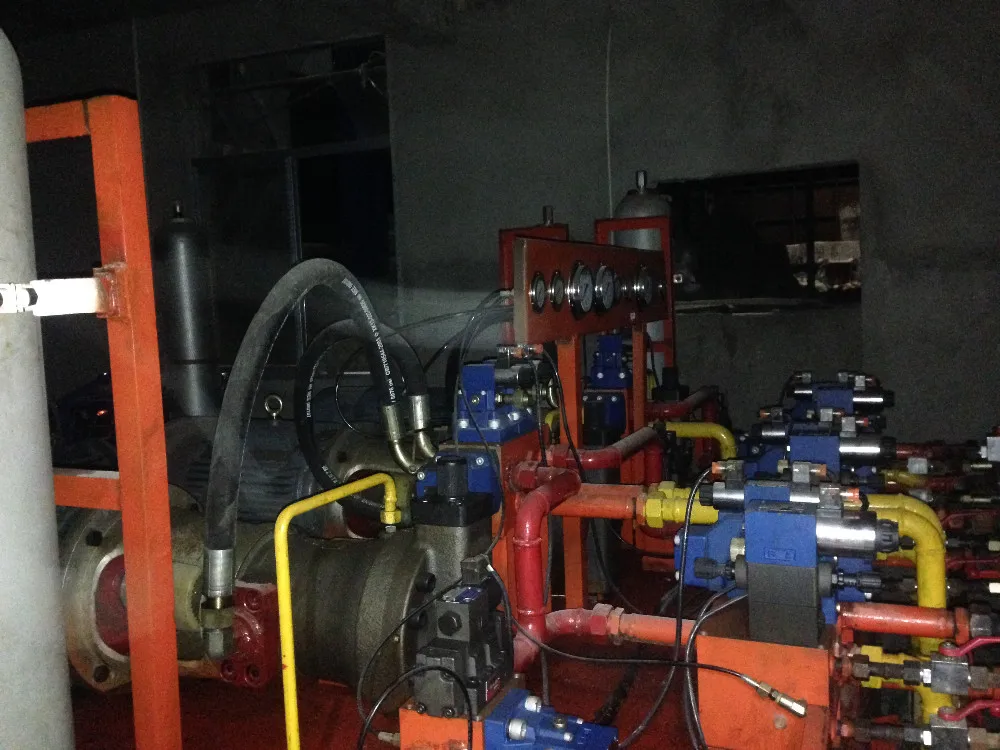

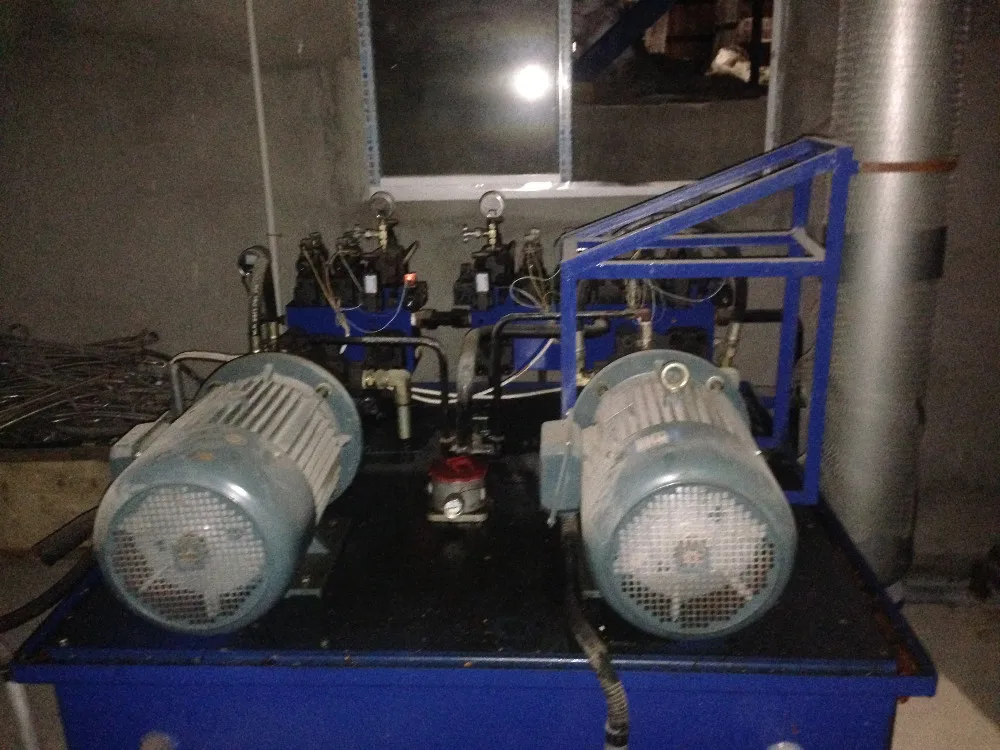

19. Hydraulic system
20. Computer and PLC system
21. Tundish roaster

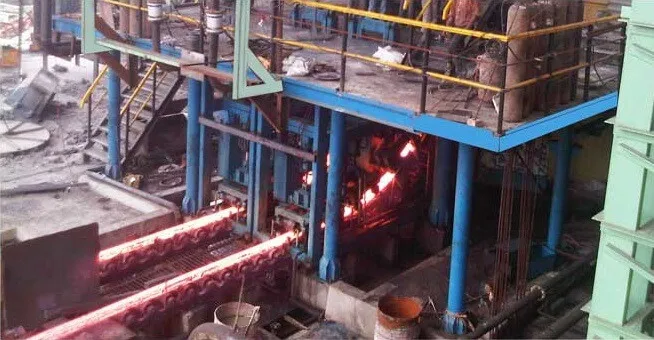

First Floor

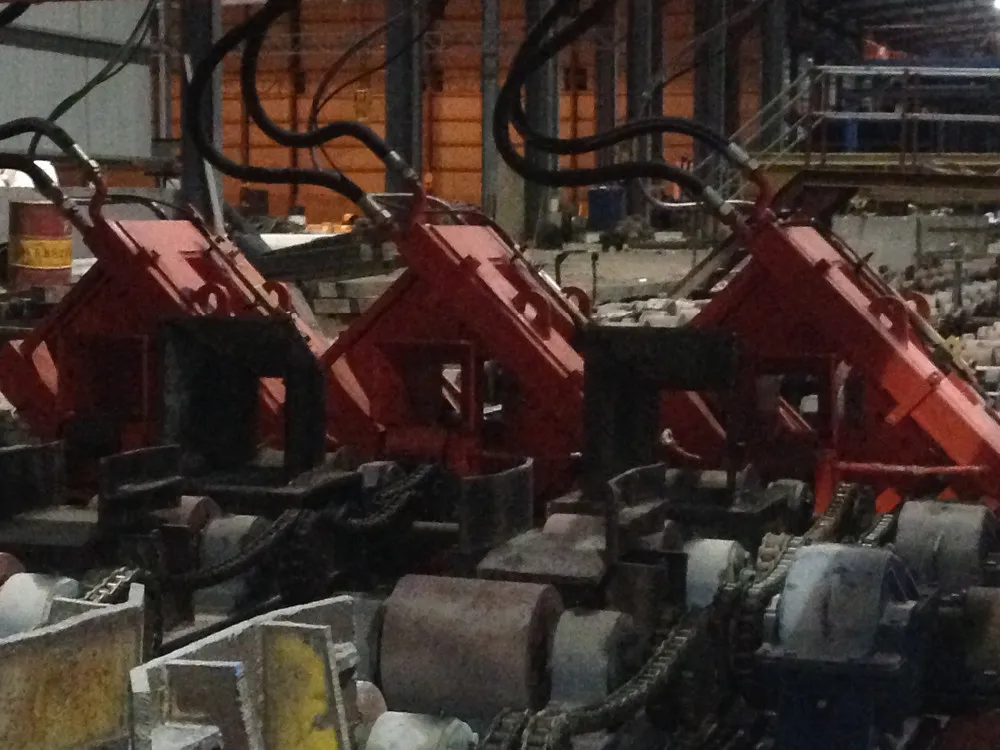

Hydraulic ShearingTitle goes here
Tundish Car

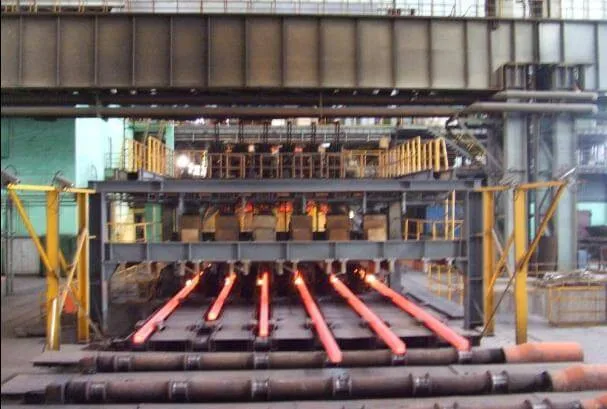

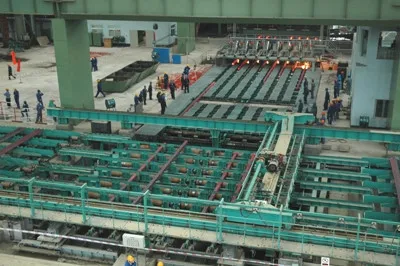

Step-by-step Cooling Bed

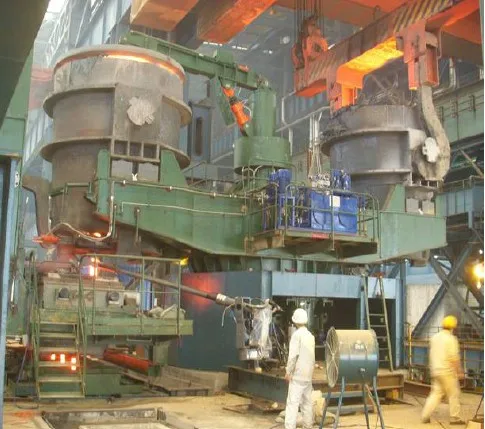

Ladle Turret

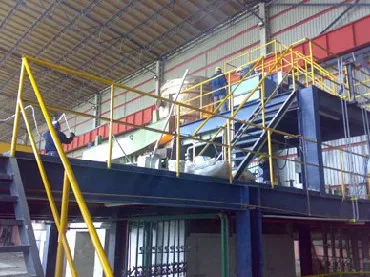

Temperature Measurement and Operation Platform
Dummy Bar Storage
Secondary Cooling System
● strip plate mould of the entirety copper-tube mode which is simple and low cost.
● High-frequency and small-swing plate spring vibration, the depth of vibration mark is under 0.2mm
● The simplified billet guiding device is low cost and easy maintenance.
● Five-roller and four-drive straightening machine is of the large straightening
● Auxiliary straightening machine can re-straighten the billet in emergency.
● Stainless steel cutting machine can cut-to-length accurately.
● The coping rate in the surface is less than 5%
How we control the quality
One-strand CCM
Two-strands CCM
Three-strands CCM
Four-strands CCM
Six-strands CCM
Eight-strands CCM
1. What is your advantage to choose Superb melting system?
As one of top suppliers in the induction field over 15 years,the machine’s stability and efficiency is warrantied.The confidence is from our superb technical engineers team.There are some doctors graduated from Zhejiang university which is the origin of induction technology in China.
2. If our machine meets fault, how could you help us to solve it?
The detailed fault description and photos should be informed to us.Our engineer will judge which part meets trouble,then provide advise and accessories list you need. The spare parts will be sug-gested to purchase by our sales manager for ensuring minimum downtime. If some problems can not be solved through communication, the engineer will be dispatched to debug onsite according to your requirement.
3. what is your warranty?
Our all machines’ standard warranty is 12 months from the date of signing the turning over docu-ment after commission.
