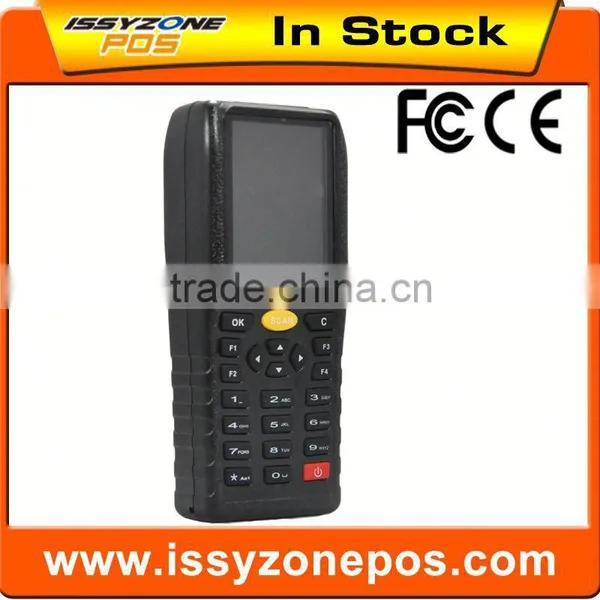

2.4' Colorful Display Mobile Cordless Barcode Data Collector IWSI009
Main Unit | ||
Model |
IWSI009 |
|
Color |
Black |
|
CPU speed |
72MHz |
|
Keyboard |
T9 |
|
Memory | ||
RAM |
16KB |
|
ROM |
16MB |
|
Screen | ||
Size |
2.4’’ |
|
Color |
16bit true color(65536 colors) |
|
Resolution |
240*320 |
|
Physical | ||
Battery |

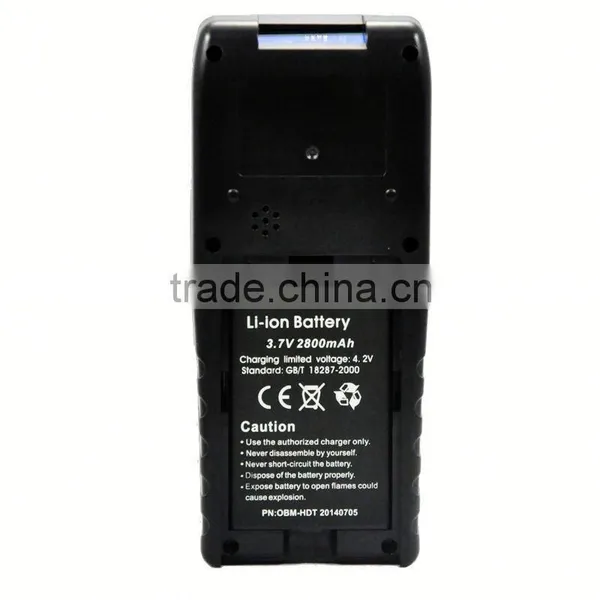

Rechargeable Lithium-ion (3.7V,1900mAh) |
|
Working time |
16 hours |
|
Standby |
15 days |
|

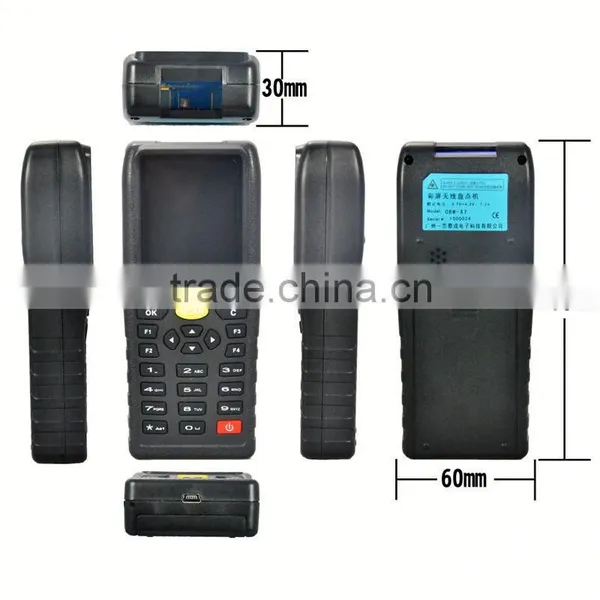

Dimension |
138mm×60mm×30mm |
|
Material |
ABS + silicone |
|
Charging indicator |
LCD |
|
Working current |
160mA |
|
Standby current |
8mA |
|
Safety standard |
national laser safety standard Class II |
|
EMC |
CE & FCC DOC compliance |
|
Scanning | ||
Light Source |
650nm |
|
Scan Pattern |
Single line |
|
Decode Rate |
100±2 scans / second |
|
Resolution |
3mil |
|
Scan width |
20mm@window,220mm@200mm |
|
Depth of Field |
0~250mm(0.33mm,PCS 90%) |
|
Roll |
30° |
|
Pitch |
65° |
|
Skew |
55° |
|
Print contrast |
Not less than 30% |
|
Operating Mode |
Continuous / itemized scanning |
|
Error Rate |
1/5million |
|
indicator |
beeper,LCD |
|
Barcode supported |
EAN-8,EAN-13,UPC-A,UPC-E,Code 39,Code 93,Code 128,EAN128,Codaber,Industoal 2 of 5,Interleave 2 of 5,Matrix 2 of 5,MSI |
|
Transmission | ||
Cable |
USB 2.0 |
|
Wireless |
433MHz(Max.300m) |
|
Environment | ||
Storing Temperature |
-20°C~60°C |
|
Working Temperature |
0°C~45°C |
|
Humidity |
5%~95% |
|
Lumination |
Max.5,000 Lux(Fluorescence) |
|
