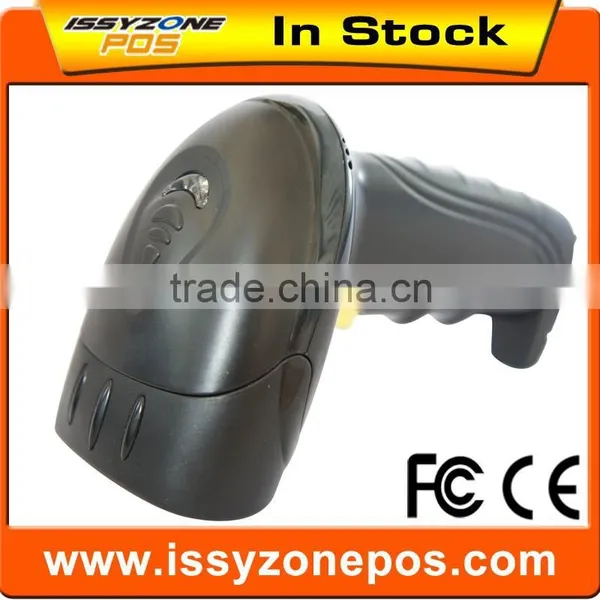

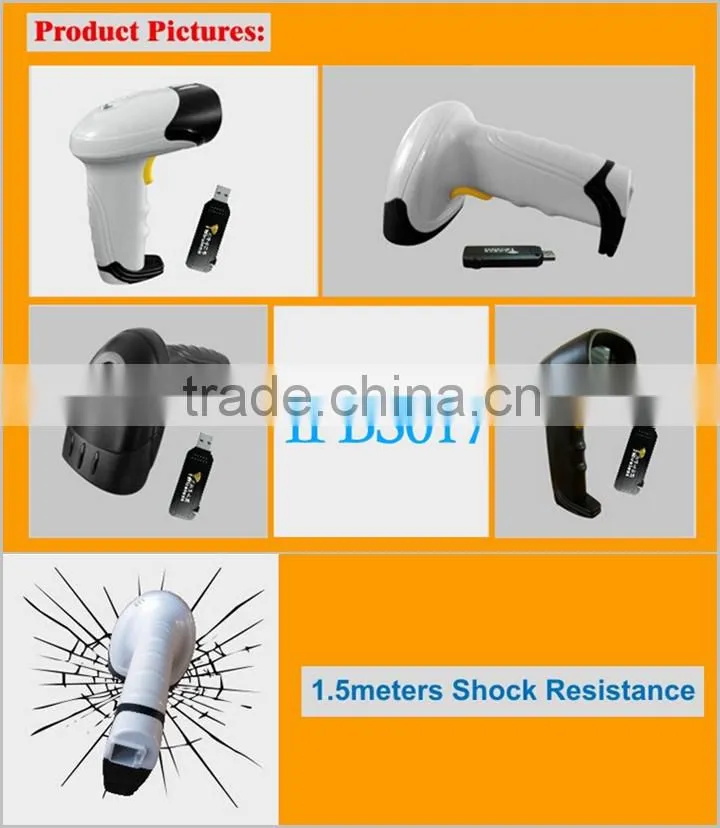

Wireless Barcode Scanner With Memory In Stock Black Color IPBS017
Specifications
Certificate:CE, FCC, RoHS, etc.;
Color:black,white;
Features:
(1) 2.4G bidirectional wireless RF module
(2) Automatic frequency modulation; excellent anti-jamming capability
(3) 250K wireless transmission rate
(4) 30meters effective open distance. The scanner will beep three times when it exceeds the effective distance or fails to transmit data.
(5) Exclusive machinery ID
(6) User-defined ID is convenient to distinguish the data sources.
(7) Easy to match with
(8) The inventory mode is easy to be used. It can store 500-10000 bar codes. (custom made if more than 500 bar codes)
(9) It can turn to standby mode automatically. Standby current is less than 10UA and that makes the battery standby time much longer.
(10) When the battery voltage is 3.5V, the scanner will have a long beep sound every time it is power on or scanning.
(11) Special charging circuit makes sure the charging safety.
Main Function:
(1) User ID function: user-defined ID; user-defined showing or not showing the user ID.
(2) Instant upload data
(3) Inventory mode function: instruction of uploading, displaying the number of bar codes and clearing bar codes. (data can be uploaded repeatedly)
(4) User-defined time of standby
(5) USB interface
Technical Parameters | |
Light source |
Visible laser diode, wavelength 650nm |
Error rate |
1/50,000,000 |
Safety |
EN60825-1, national laser safety standard Class1 |
Decoding Capability |
1D barcode like UPC/EAN/JAN, UPC/EAN with Supplementals, UCC/EAN 128, Code 39, MSI, Code11, Codabar, Code93, Discrete 2 of 5, IATA, RSSvariants, Chinese 2 of 5, Inteleaved 2 of 5, China Post Code, etc. |
Charging Interface |
RJ-45 crystal plug, 2 meters long (5V charger, LED light is red when it’s charging and green when it gets full charged.) |
Trigger mode |
Manual |
Resolution |
≥3mil |
Depth of scanning field |
5mm-630mm |
Scanning speed |
120 scans/sec |
Scanning mode |
Single line |
Scanning resolution |
Minimum 30% reflective difference |
Transmission Frequency |
2.4G |
Transmission Distance |
30 meters linear distance |
Charging Time |
4 hours |
Charging Voltage |
DC 5V±5% |
Setting Mode |
Manual(scan the setting barcodes) |
Operating current |
20MA(operating mode); 100MA(maximum peak) |
Power |
100MW(operating mode); 500MW(maximum peak) |
Standby Current |
<20uA |
Photic Intensity |
3000-12000Lux |
Scanning Angle |
±60°±65°±42°(left&right, front&back, turn) |
Prompting Mode |
LED light |
Temperature |
0°C-50°C(operating mode); -40°C-60°C(storage) |
Shock resistance |
1.5 meters drop on concrete surface |
Size |
L*W*H: 145mm × 65mm × 105mm |
Weight |
About 250g |
Housing material |
ABS+PVC+PC |
EMC |
EN55022, EN55024 |
Electrical Safety |
EN60950-1 |
Packaging Level |
IP42 |
Test Standard |
EN55022:2006+A1:2007 |
EN55024:1998+A1:2001+A2:2003 | |
EN61000-3-2:2006+A2:2009 | |
EN6100-3-3:2008 | |
Application Fields
