Home > Products > Barcode Scanner > Hot Selling Mini Wireless Barcode Bar Code Scanner IPBS019

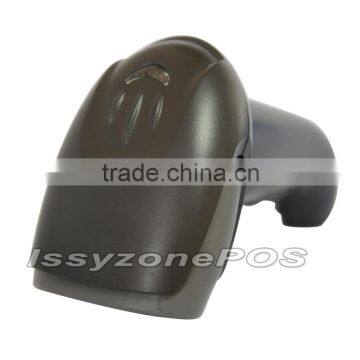

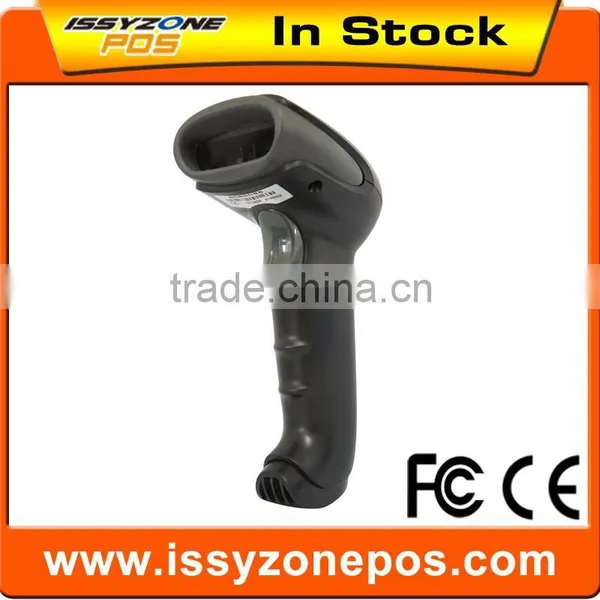

Hot Selling Mini Wireless Barcode Bar Code Scanner IPBS019
- gz
- T/T Credit Card PayPal
You May Like
-
China Handheld Wireless Barcode Scanner Wholesales Price IPBS039
-
IPBS035 300M Long Distance Handheld Wireless Barcode Scanner With Memory
-
Portable Mini Barcode Scanner Reader Usb MNS003
-
MNS008 Mini Barcode Scanner Bluetooth Barcode Reader
-
Handheld Library Bluetooth Barcode Scanner Reader POS Black IPBS006
-
Hot Selling Android Mobile Bluetooth Barcode Bar Code Scanner IPBS002
Product Details
| Products Status | Stock | Type | Barcode Scanner | |
| Scan Element Type | CCD | Colour Depth | 42 Bit | |
| Interface Type | USB | Max Paper Size | Mini Wireless Barcode Scanner | |
| Optical Resolution | 4mil/0.1mm at PCS90% | Scan Speed | Up to 500scans/sec | |
| Brand Name | ISSYZONEPOS | Model Number | IPBS019 | |
| Place of Origin | Guangdong, China |
Product Description
Hot selling Mini Wireless Barcode Bar code Scanner IPBS019
1. Can Read All Standard 1D Barcodes even on Electronic Screen | ||
| 2. Interface:USB/KB/COM | ||
| 3. Light Source:Visible Red Light 632nm LEDs | ||
| 4. Sensor:Linear CCD Sensor | ||
| 5. Processor Tpye: ARM Cortex™-M3, 32-bit | ||
| 6. Scan Rate:Up to 500scans/sec | ||
| 7. Easy connect to Android mobile/tablet | ||
| Electrical Characteristics | ||
| Interface | RS232 KB USB | |
| Supply Voltage | DC+5V±5% | |
| Output Voltage (Typ.) | ±9V +5V±5% | |
| Output low Voltage (Max.) | 0.7V | |
| Current Draw | ± 10% | |
| Power On (Typ.) | 170mA | |
| Stand by (Typ.) | 50mA | |
| Operation (Typ.) | 150mA | |
| Performance | ||
| Light Source | Visible Red light 632nm LED | |
| Sensor | Linear CCD Sensor | |
| Processor Type | ARM Cortex™-M3, 32-bit | |
| Operating Frequency. | 8 MHz (Internal) | |
| Scan Rate | Smart detect up to 500 scans/second | |
| Reading Distance | 500mm at 20mil/0.5mm, PCS90% | |
| Print Contrast Ratio | PCS45% at 4mil/0.1mm | |
| Resolution | 4mil/0.1mm at PCS90% | |
| Reading Angle | Test Conditions : Code 39, 10mil/0.25mm,PCS90% | |
| Pitch Angle | 5°~60° (±5°) | |
| Skew Tolerance | 5°~60° (±5°) | |
| Ambient Light | 10,000 Lux Max | |
| Environmental | ||
| Operating Temperature | 0 ℃ to 50℃ (32 ℉ to 122 ℉) | |
| Storage Temperature | -20℃ to 70 ℃ (-4 ℉ to 158 ℉) | |
| Relative Humidity | 20% to 95% (Non-condensing) | |
| Reliability | ||
| Life Time | ||
| Light Source | 40,000 hours | |
| MTBF(Calculated) | 80,000 hours | |
| Thermal Shock | ||
| High Temp. | 60℃ (140℉) | |
| Low Temp. | -20℃ (-4℉) | |
| Cycle time | 30 minutes for high temp.,30 minutes for low temp. | |
| Cycles | 24 cycles | |
| Mechanical Shock | 2000G, 0.7ms, 3 axes | |
| Readable Symbologies | ||
| Readable | Default Enable | |
| All UPC/EAN/JAN | V | V |
| AN128 Code | V | |
| Code 39 | V | V |
| Code 39 Full ASCII | V | |
| Code32 / Italian Pharmacy | V | |
| Code 128 | V | V |
| CODABAR/NW7 | V | V |
| Interleave 25 | V | V |
| Industrial 25 | V | |
| Matrix 25 | V | |
| MSI/PLESSEY | V | |
| Telepen | V | |
| Code 93 | V | |
| Code 11 | V | |
| China Postage | V | |
| Code 26 | V | |
| LCD25 | V | |
| GS1 DataBar | V | |
| GS1 DataBar Stack | V | |
