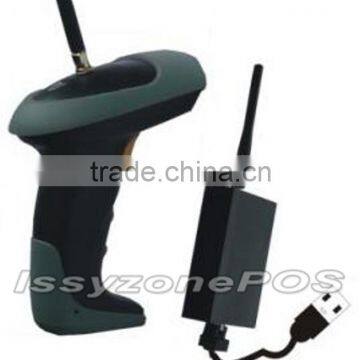

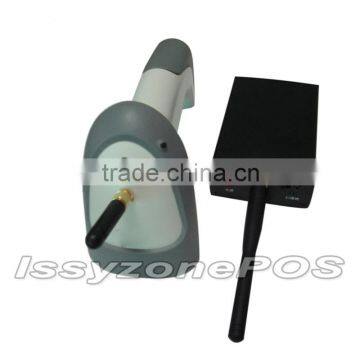

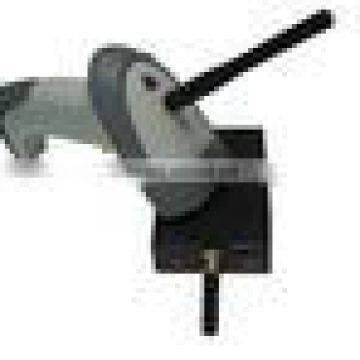

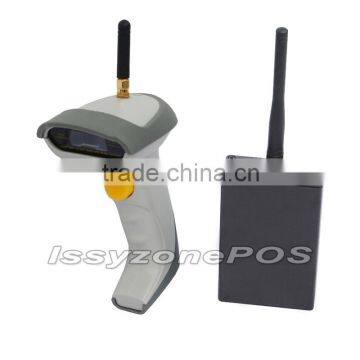

2015 New Wireless Barcode Reader IPBS023
Independent patent wireless transmission module:Transmission stability, Solved the problem of data can’t upload when product communication error.
Patented charge-discharge protection circuit technology: Solved the problem of battery and charging circuit faults frequently.
Excellent Decoding Performance: Gold-plated optical technology ,32 bits master chip equipped with proprietary software, smooth decoding barcodes which with reflective, folds, blur, color code even in light environment
Rich In Decoding Catagory: EAN-8, EAN-13, UPC-A, UPC-E, Code 39, Code 93, Code 128, EAN128, Codabar, industrial 2 of 5, Interleave 2 of 5, Matrix 2 of 5, MSI, Chinese postal codes.
PERFORMANCE PARAMETERS | |
Scan Rate |
150 line/sec |
Identifiable Contrast |
≥35% |
Scanning Angle Capability |
Horizontal : 72° Vertical:82° |
Decode Capability |
EAN-8, EAN-13, UPC-A, UPC-E, Code 39, Code 93, Code 128, EAN 128, Codabar, Code 25 non-interleaved, Code 25 interleaved , Matrix 2 of 5, MSI, PostBar, etc |
Light Source |
Wavelength: 650±8nm red laser |
Port |
USB2.0, PS/2,RS232 |
LED Indicator |
Buzzer and bi-color light: Red-power, Blue-decoding Successfully |
WIRELESS PARAMETERS | |
Transmission Distance |
350M |
GHz |
433M |
Obstacle penetrability |
Strong |
Battery |
1800MA |
ENVIRNMENTAL PARAMETERS | |
Crash resistant |
Can withstand 1.5M free fall |
Standards |
IP54 |
Operating |
0degrees to 45 degrees |
Storage Temperature |
-40degrees to 60 degrees |
Humidity |
10% to 92% Relative humidity, Non-condensing |
Light Intensity |
450 Candlelight |
PHYSICAL PARAMATERS | |
Weight (pcs) |
N.W: 140g/pcs G.W:520g/pcs |
Size (pcs) |
Host: 168mm×68mm×83mm Package:185mm×110mm×80mm |
ELECTRICAL PARAMETERS | |
Voltage |
5V |
Work Current |
85mA |
Static Current |
36mA |
Laser Grade Standard |
China national laser safety standards level 2 |
EMC |
CE& FCC DOC Compliance |
