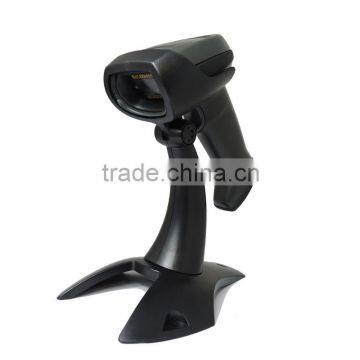

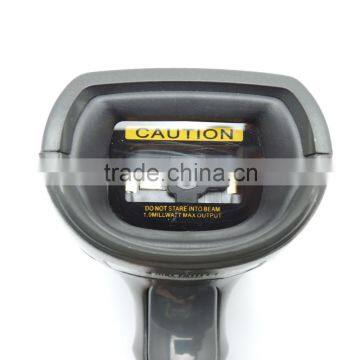

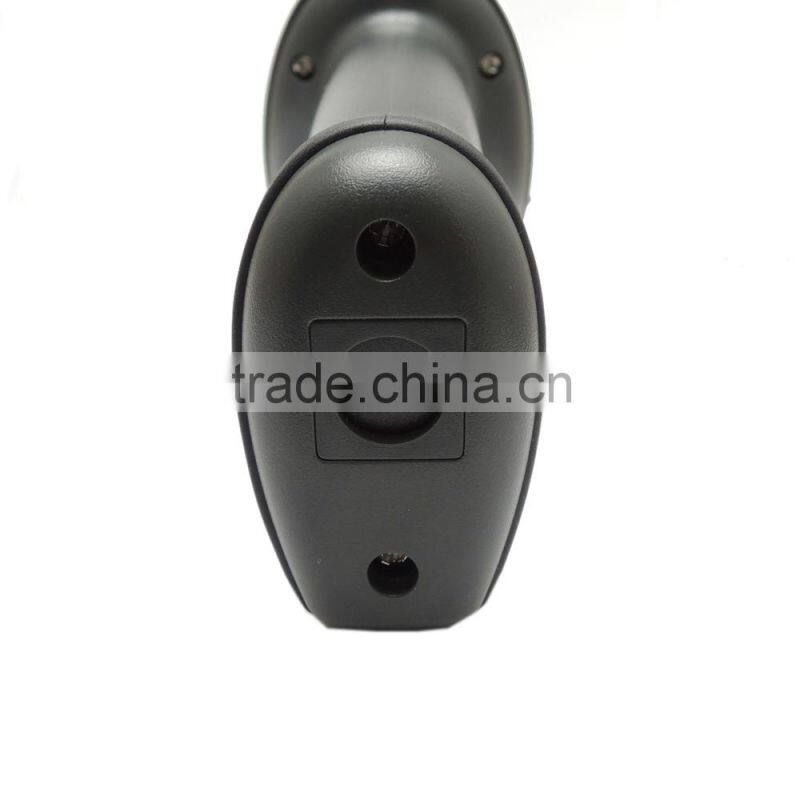

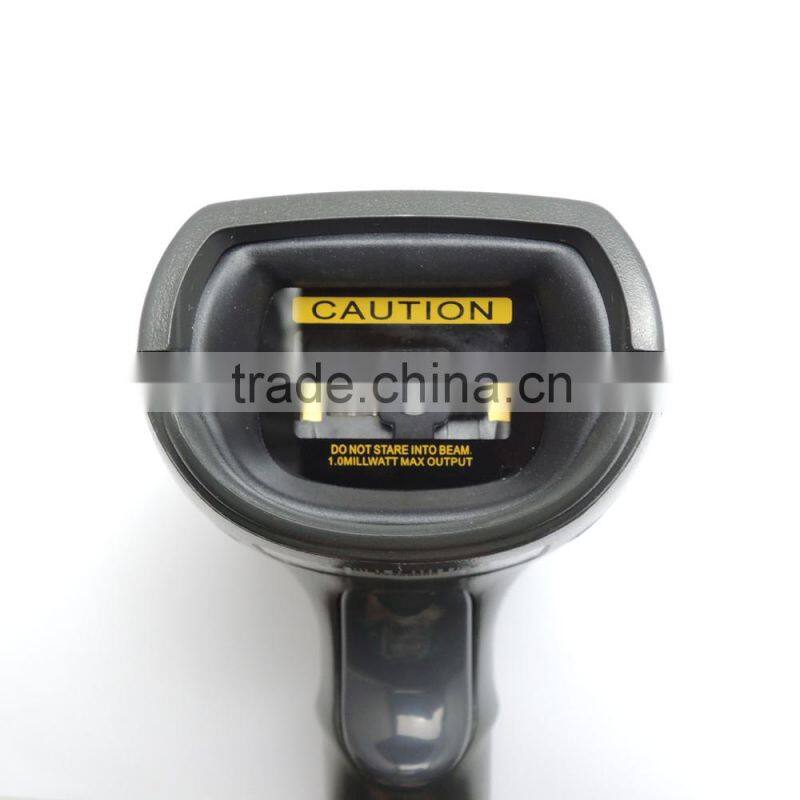

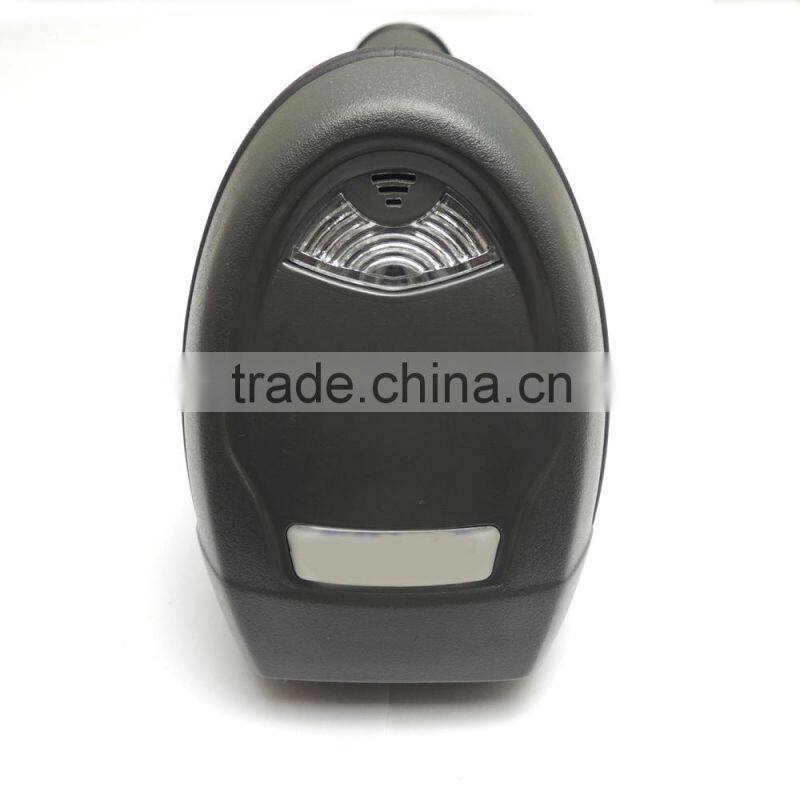

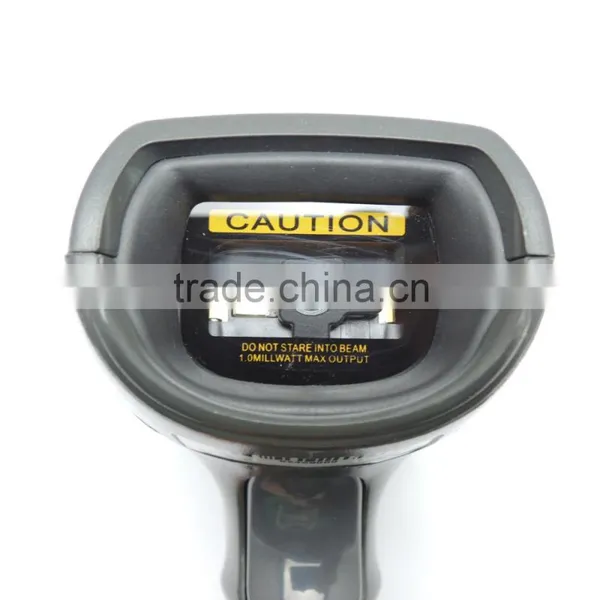

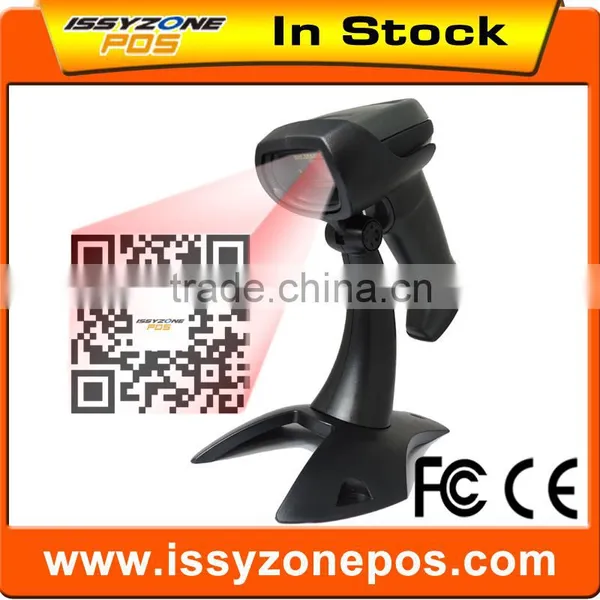

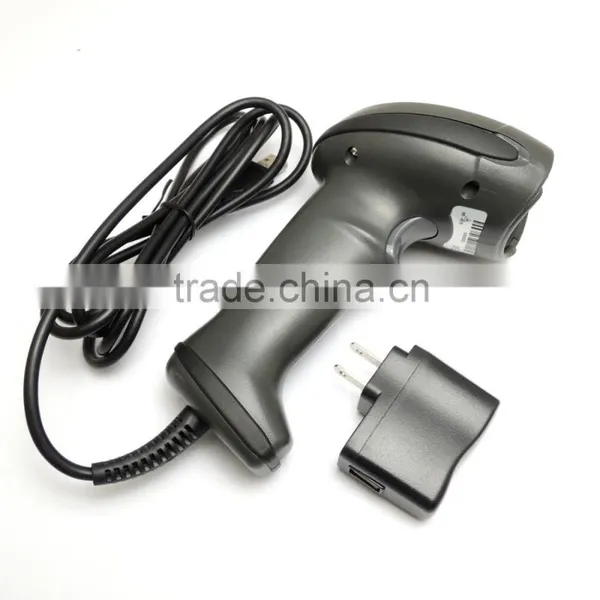

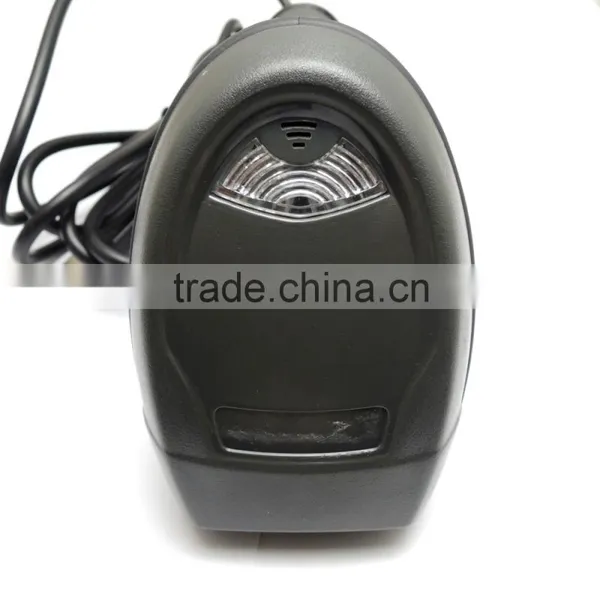

Handheld QR Image Barcode Scanner Reader 1D 2D I2DBC010
Light Source |
Aimer:617nm LED White 6500K Illumination:625nm LEDs |

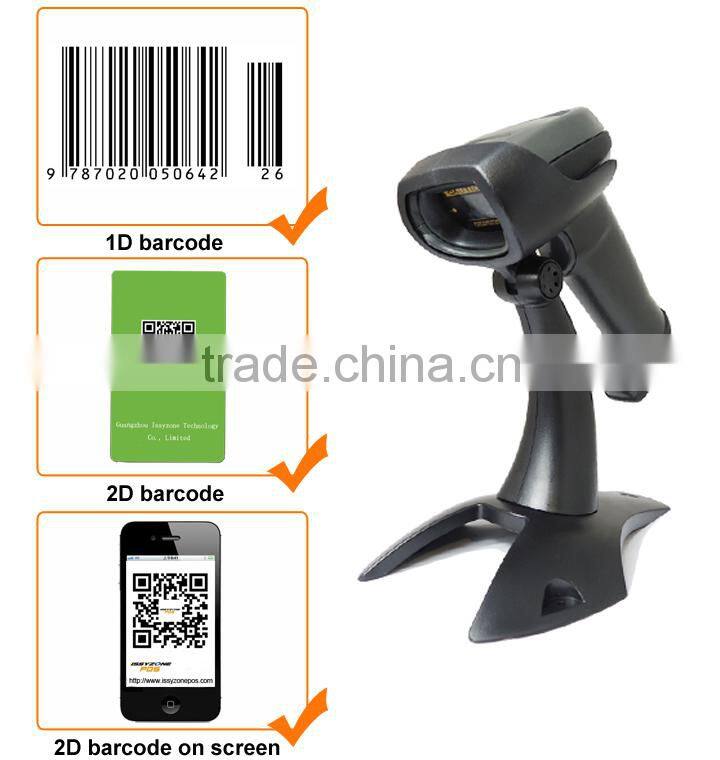

Decode Capability | |
1D |
UPC/EAN, UPC/EAN with supplementals, BooklandEAN, ISSN, UCC Coupon Extended Code, Code128, GS1-128, ISBT 128, Code 39, Code 39 FullASCII, Trioptic Code 39, Code 32, Code 93, Code11, Matrix 2 of 5, Interleaved 2 of 5, Discrete 2of 5, Codabar, MSI, Chinese 2 of 5, GS1 DataBar variants, Korean 3 of 5, ISBT Concat |
2D |
PDF417,MicroPDF417,CompositeCodes,TLC-39,Data Matrix,Maxicode ,QR code ,Micro QR,Aztec |
Scanning Type |
Image CMOS |
Scan Rate |
Above 25inch/63.5cm per second |
Trigger Mode |
Manual /continuous scan |
Roll/Pitch/Yaw Angle |
30° /65°/55° |
Resolution |
SR:Code 39 4.8mil;UPC 60% 5mil,PDF417 5mil,Datamatrix 7.5mil |
Depth of scanning field |
5mm-390mm |
Print Contrast |
≥25%,minimum reflective |
Indicator |
LED,buzzer |
Interface Support |
USB-HID,USB-COM,RS232 |
Physical Parameter | |
Dimension |
L175mm*W71mm*H101mm |
Housing Materials |
ABS+PC |
Weight |
249g |

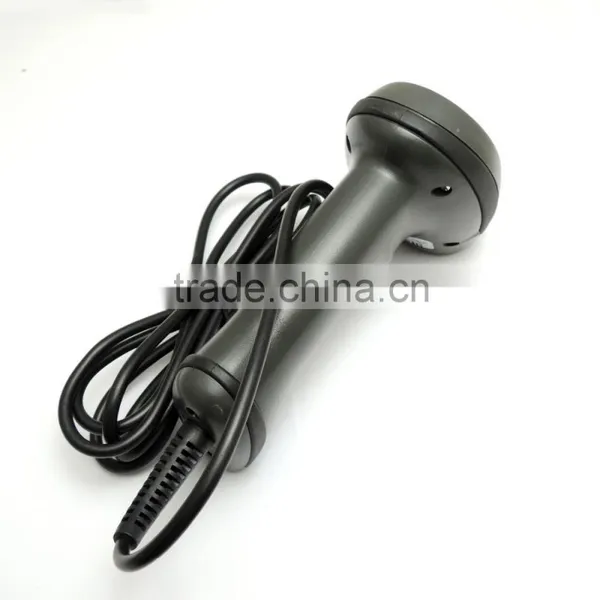

Cable Parameter |
2M |
Electrical Parameter | |
Voltage |
DC 5V |
Current |
250mA (Peak value) |
Environmental Parameter | |
Operating Temperature |
-20°C~50°C |
Storage Temperature |
-40°C~70°C |
Humility |
5%-95%(no condensing ) |
IP Level |
IP54 |
LUX |
3000-8000Lux |
Impact Resistance |
withstands multiple 3m drops to concrete |
1.Do you have the items in stock?
The most of products are in stock. We can send the goods out within 3 days after payment received. For the goods are out of stock, production time is about 7-10 days.
2.Do you offer other relevant items?
Yes we do. We are offering barcode scanner, receipt printer,magnetic card reader and data collector and Pos system.
3.If the goods are damaged badly, who is responsible for it?
We will be responsible for the damaged goods when it is damaged during transport, and we can exchange the new goods for you.
4. How do I know that you have sent the products out?
Once the prodcuts are sent out, a tracking number will be provided so that you can check where your goods at all times.
