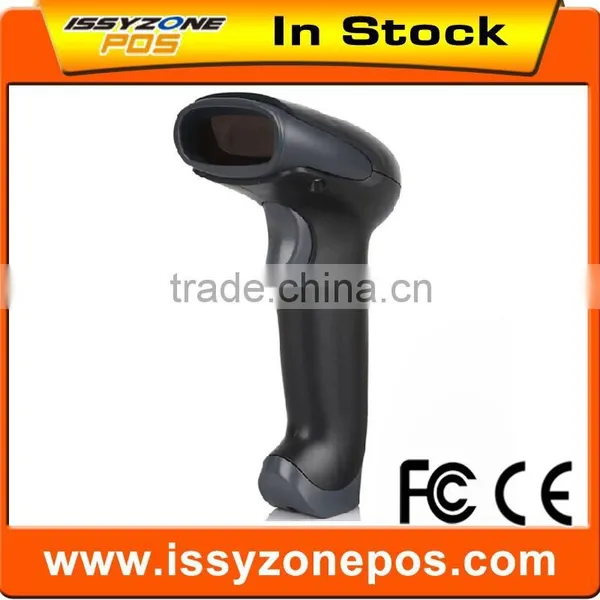

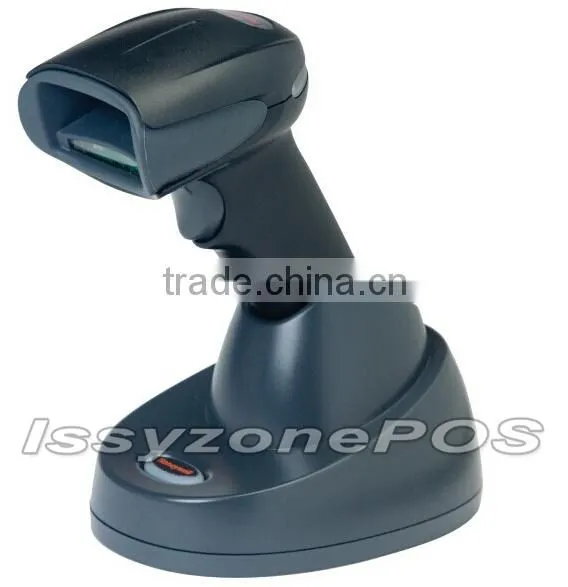

USB 2D Barcode Scanner QR Code PDF417 100mm /sec 13mil UPC I2DBC006
| physical parameters | |
| Scanning type | Lmage type |
| Safety penrfomance | Accord with natinonal level two laser safety atandards |
| Physical dimension | Length * width * heght 155mm*65mm*95mm |
| Package size | Length * width * heght 200mm*130mm*105mm |
| Material | ABS+TPU |
| Scanner weight | 180g |
| Package weight | 340g |
| LED indicator | Red |
| Performance parameter | |
| Bar code density | Depth of fiefld |
| 5 mil Code39 | 33-95mm(1.3-3.7in) |
| 13 mil UPC | 32-255mm(1.3-10.0in) |
| 20 mil Code39 | 35-355mm(1.4-14.0in) |
| 6.7 mil PDF417 | 30-95mm(1.2-3.7in) |
| 10 mil Data Matrix | 30-100mm(1.2-3.9in) |
| 15 mil Data Matrix | 21-162mm(0.8-6.4in) |
| 20 mil QR | 23-200mm(0.9-7.9in) |
| Working current | 340mA |
| DC power supply | Class2;5.2VDC@1A |
| Working power | 2W;400mA@5V-The typical value |
| Barcode type | Standard 1D,2D bar code(PDF417,Data Matrix,QR etc) |
| Key scan times | 50000000times |
| System interface | USB,RS232,Virtual serial port |
| The data line length | 2 meters |
| Enviromental parameter | |
| Operating temperature | 0°C-40°C |
| Storage temperature | -40°C~60°C |
| Operating humidity | 5%-95%Relative humidity,no condensation state |
| Electrostatic protection | ±15KVDC Air discharge,±8kVDC Direct /indirect discharge |
| Fall-down test | 50order/1.5M |
| Ambient light immunity | 0-100.000LUX |
| Exercise tolerance | 100mm/sec 13milUPC |
| IP Class | ip54 |
| MEI | Accord en50081,par1 specifications |
| EMC Electromagnetic compatibility | EN55022,EN55024 CIASS B |
| Dust | Seal to resist invasion of dust particies in the air |
1.Do you have the items in stock?
The most of products are in stock. We can send the goods out within 3 days after payment received. For the goods are out of stock, production time is about 7-10 days.
2.Do you offer other relevant items?
Yes we do. We are offering barcode scanner, receipt printer,magnetic card reader and data collector.
3.If the goods are damaged badly, who is responsible for it?
We will be responsible for the damaged goods when it is damaged during transport, and we can exchange the new goods for you.
4. How do I know that you have sent the products out?
Once the prodcuts are sent out, a tracking number will be provided so that you can check where your goods at all times
Our Mission is to maximize The Value of Made In China.
Welcome to . We are a supplier mainly provide POS system. Main products: barcode scanner, receipt printer, magnetic card reader and data collector.
Our history:
In 2010, Issyzone was built in Guangzhou.
At that time, we were just a small team of two people.
But now, we have developed to thirty people due to our sales development by five years’ endeavor.
Our products:
In 2010, we started our market of barcode scanner.
In 2012, we broadened our product range by introducing POS system.
We believe that we will have high quality electric products in the future. We still provide high quality service and good quality products for our customers.
Our commitment:
7 days no reason to return
We provide the “7 days no reason return” service, in order to make sure our customers to have a happy transaction. You can return your products without any reason.
We have aftermarket and original parts. All of products are tested and then sent to you. If you have any trouble in using, we are glad to help you solve the problem.
Our aim:
Make your business easy.
Contact us now, and you'll get all the product lists!
At the same time our advanced sales manager will be there to provide you the best service.
Perfect Quality Control System,VIP server solve your
problem in time.
