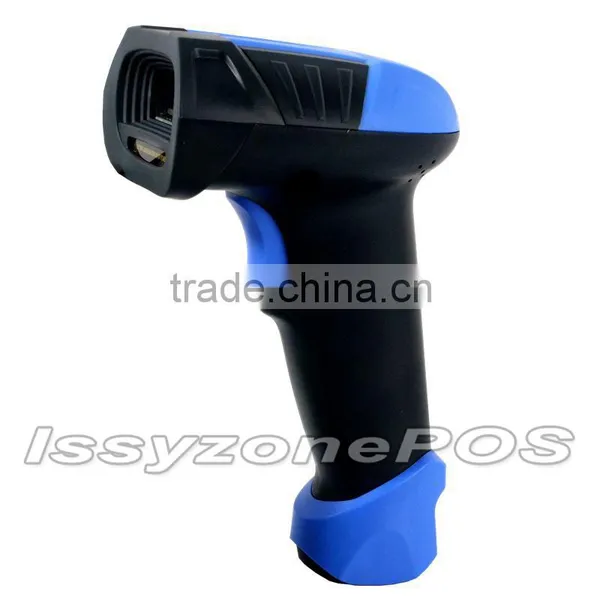

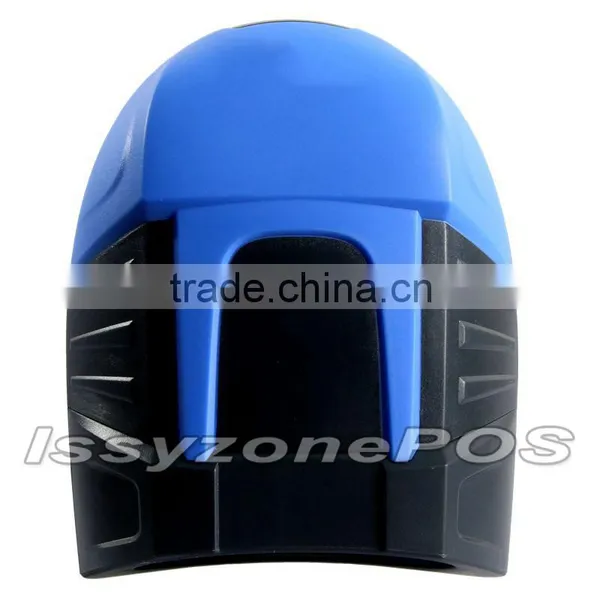

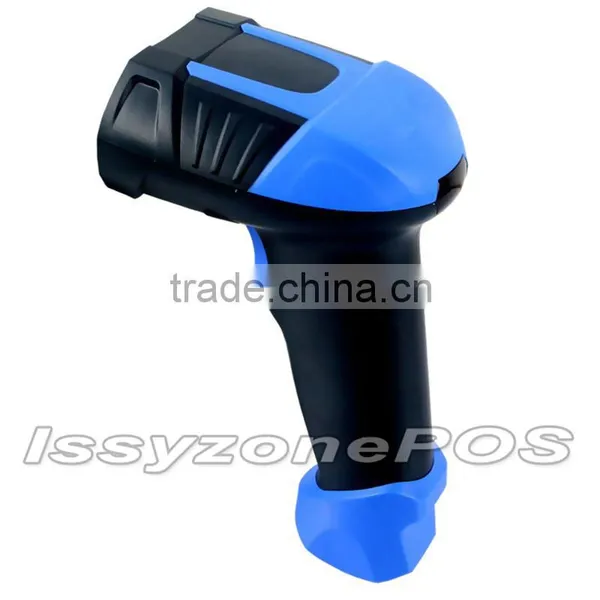

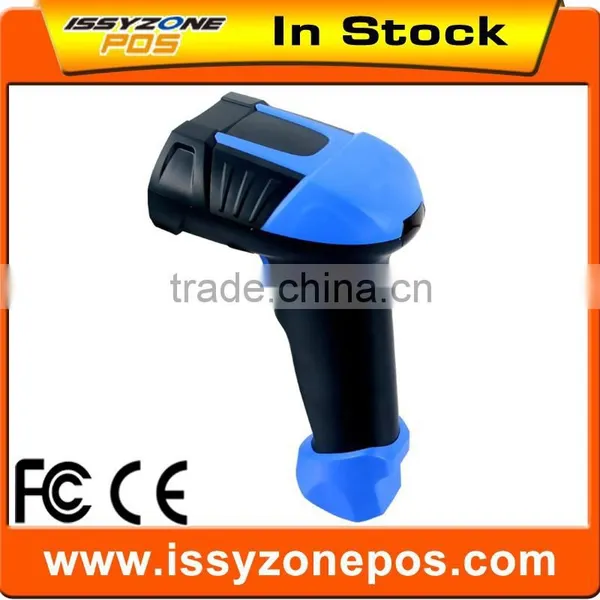

2015 New 2D Barcode Scanner Reader I2DBC001
* The industry's original anti-glare technology that can quickly read a variety of shiny surfaces and special surface barcodes can also be interpreted infusion bags, plastic packaging pharmaceuticals and other difficult to read barcodes. For a variety of industries and retail, manufacturing plants, medical and logistics.
* Original bifocal optical control technology, both high-density barcode reading, wide barcode can be read.
PERFORMANCE PARAMETERS | ||||
SENSOR Resolution |
960*640 |
|||
|
Decoding Ability |
1D |
EAN-8,EAN-13,UPC-A,UPC-E,Code 39,Code 93,Code 128,EAN128,Codebar,industrial2 of 5,Interleave 2 of 5,Matrix 2 of 5,MSI,postal code ect. |
||
2D |
PDF417,DM,QR,Chinese-Sensible Code ect. |
|||
Accuracy and Depth |
Testing Code |
Depth(Min) |
Depth(Max) |
|
3mil code39 |
90mm |
130mm |
||
4.3mil DM |
90mm |
135mm |
||
5mil DM |
90mm |
155mm |
||
6mil DM |
78mm |
165mm |
||
7mil code39 |
50mm |
208mm |
||
10mil DM |
38mm |
210mm |
||
20mil DM |
38mm |
320mm |
||
Light Source |
CMOS |
|||
Interface |
USB2.0,RS-232,KB |
|||
LED Indicator |
Buzzer and bi-color light: Red-power, Blue-decoding Successfully |
|||
ENVIRONMENTAL PATAMETER | ||||
Crash Resistant |
Can withstand 2M free fall 300 times |
|||
Environmental |
IP54 |
|||
Storage Temperature |
-20 Degree to 55 Degree |
|||
Humidity Temperature |
-40 Degree to 65 Degree |
|||
Work Humidity |
5% to 95% Relative humidity, Non-condensing |
|||
Storage Humidity |
5% to 95% Relative humidity, Non-condensing |
|||
Light Levels |
0-120000LUX |
|||
PHYSICAL PARAMATERS | ||||
Weight (pcs) |
N.W: 145g/pcs G.W: 310g/pcs |
|||
Size (pcs) |
Host: 90mm*74mm*172mm Package: 185mm×110mm×80mm |
|||
ELECTRICAL PARAMETERS | ||||
Voltage |
5V |
|||
Current |
280mA |
|||
Power |
1.4W |
|||
Laser Level |
EN60950-1 |
|||
EMC |
EN55022,EN55024 |
|||
Application Fields
1.Do you have the items in stock?
The most of products are in stock. We can send the goods out within 3 days after payment received. For the goods are out of stock, production time is about 7-10 days.
2.Do you offer other relevant items?
Yes we do. We are offering barcode scanner, receipt printer,magnetic card reader and data collector.
3.If the goods are damaged badly, who is responsible for it?
We will be responsible for the damaged goods when it is damaged during transport, and we can exchange the new goods for you.
4. How do I know that you have sent the products out?
Once the prodcuts are sent out, a tracking number will be provided so that you can check where your goods at all times
