Specifications
1.QX3030 Small Laser Engraver and Cutter2.LCD touch panel, 40W
3.DSP system and USB interface
4.Square orbit
5.CE, FDA

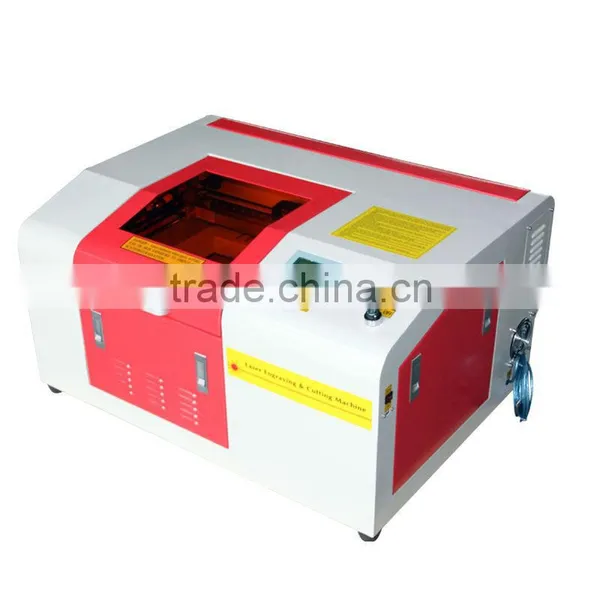

New Laser Engraver----QX3030
Technical parameter:
Product model |
QX3030 |
Maxi working area |
300x300mm |
Laser power (standard configuration) |
40W |
optional 50W | |
Laser Types |
Hermetic And Detached CO2 Laser Tube |
Engraving speed |
0-75,000mm/min |
Cutting speed |
0-40,000mm/min |
Location precision |
≤0.01mm |
Resetting positioning accuracy |
≤0.01mm |
Power supply |
AC 220V/50Hz |
Gross power |
<1,000W |
Operating temperature |
0 - 45° |
Operating humidity |
5 - 95% |
Minimum shaping character |
English 1×1mm |
360°slope engrave |
Yes |
Driving system |
stepper |
Cooling mode |
Water-cooling and protection system |
Auxiliary Devices |
Exhauster And Exhaust Pipe |
Software |
Lasercut 5.3 |
Graphic format supported |
BMP, CIF, JPEG, TGA, TIFF, PLT, AI, DXF, DST (TIANDAO Embroidery Software), DWG, CDR, etc |
Optional |
Up&Down work table, Digital display, Rotary Clamp, Red light pointer, Auto focus, Filtrator |
Optional water cooling system |
water pump, water chiller, air cooler |
1) Flat working table with holes: easy to exhaust gas, at the same time convent for cutting small samples.

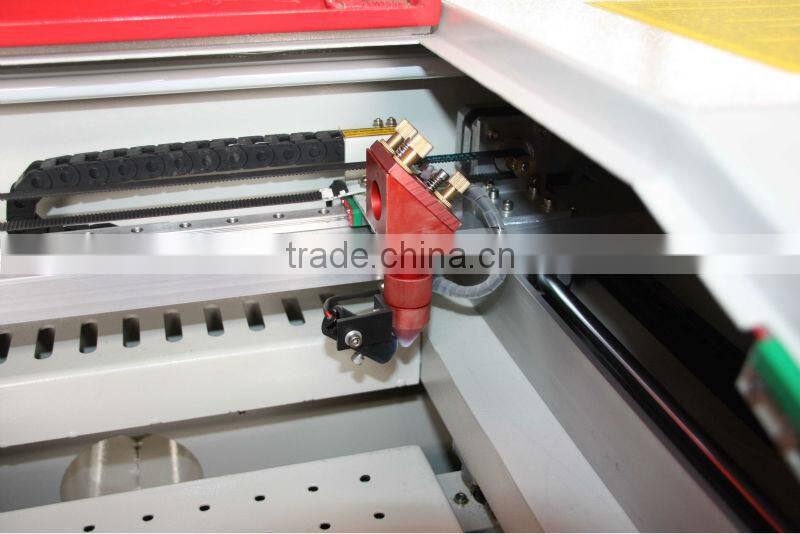

2) Red Pointer: to show where laser should work, and easy to adjust laser path.

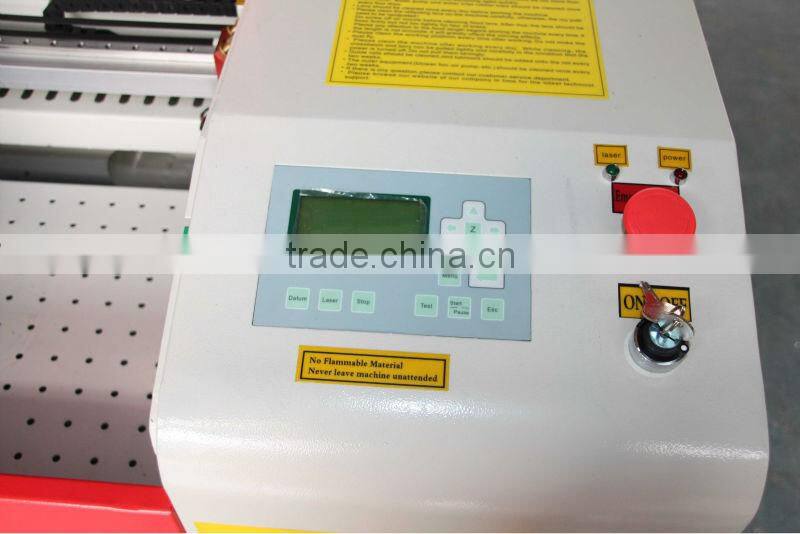

3) Laser Button: when laser light shoot, it will be bright.
4) Power Button: when have power, it will be bright. They are easy to check machine if have any questions.
5) Safety Switch: When door close, has laser dot shoot, when door open, has no laser dot shoot, protect user from hurt by laser light.
6) Separate control system box, separate laser power box, separate control panel

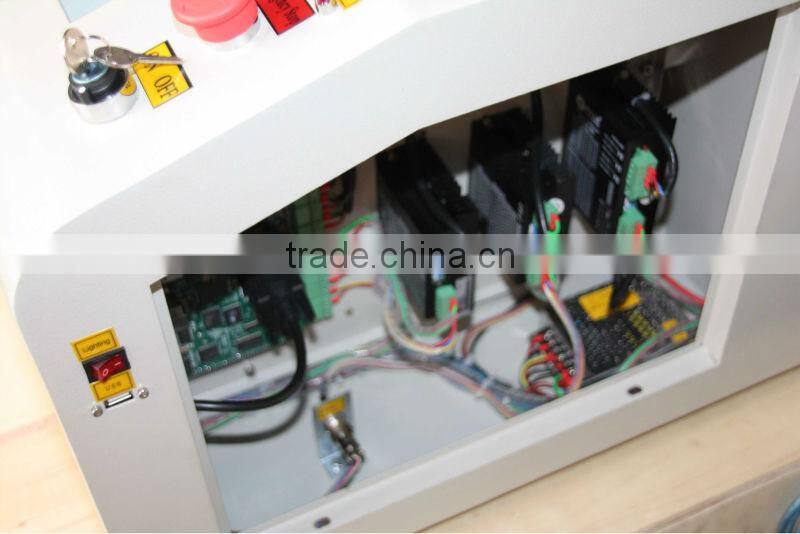

A. laser equipped with the control system in a separate box in the right side of the machine, and marked X,Y,Z motor and X,Y,Z driver respectively.

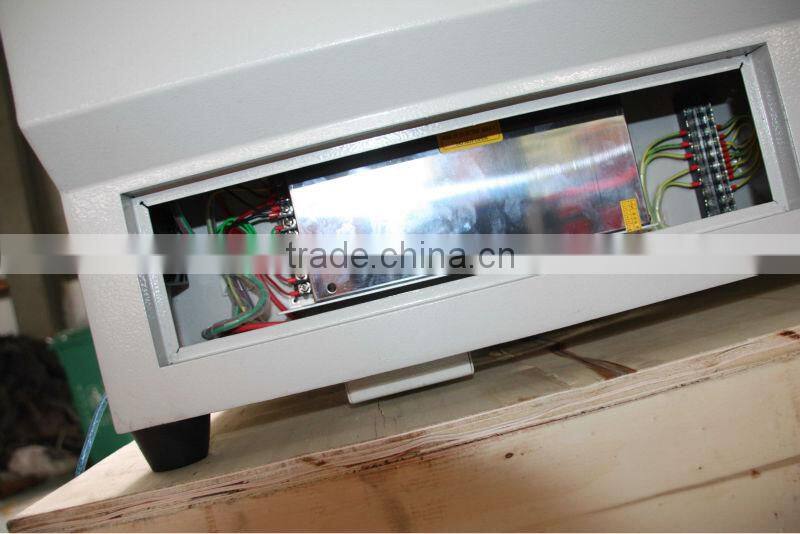

B. put the power supply in a separate box in the left side of machine.
C. External spares plug and socket:Everything is under full ready-mode condition. USB data cable, electric shock resistant protector, ground wire, water chiller plug, are well installed and connected with machine, marked with label, which making operation much easier for end user.

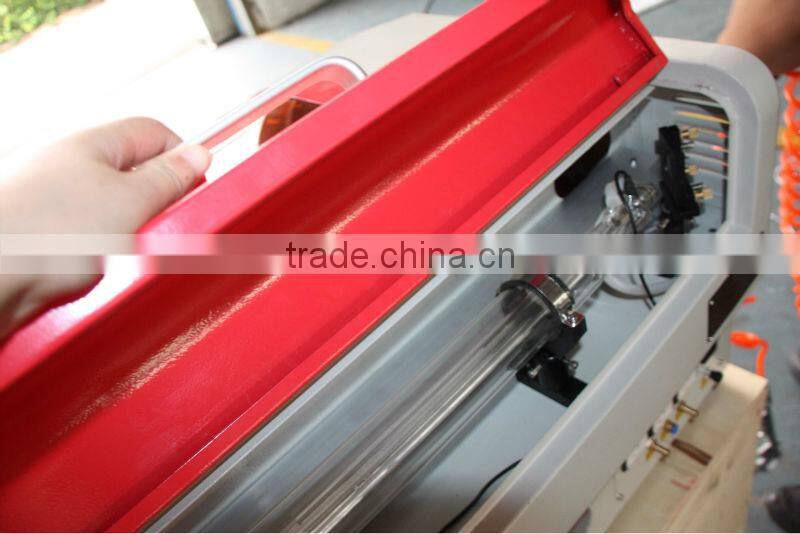

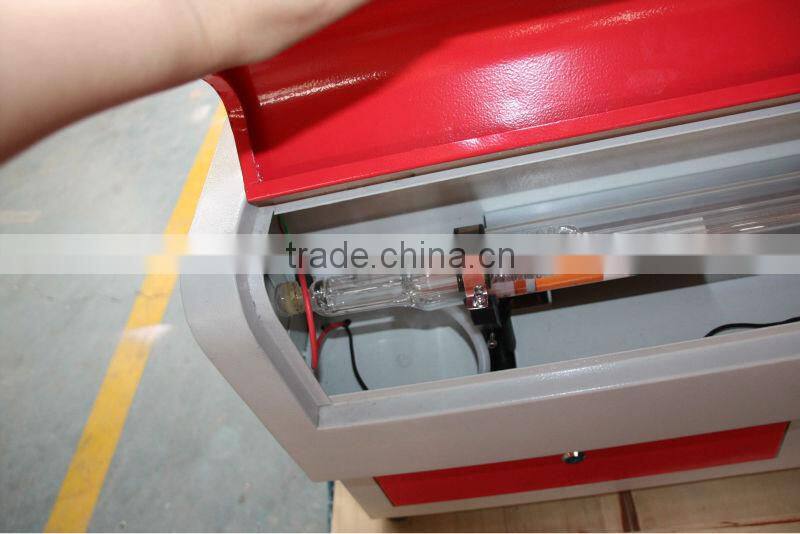

7) Laser Tube: It is 40W, optional 50W.

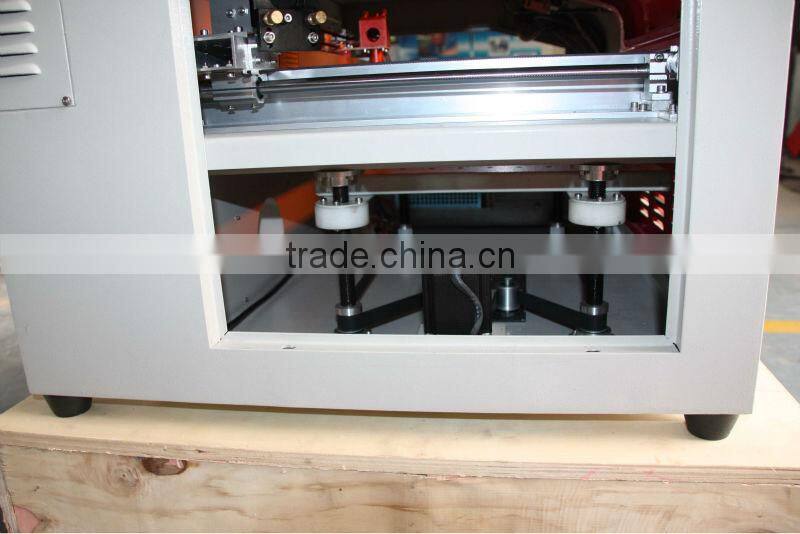

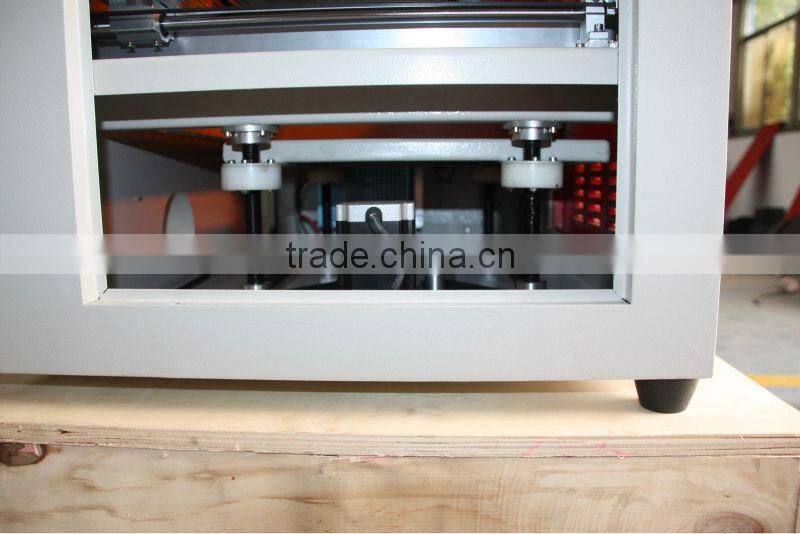

8) Motorized up&down table: 8CM Up&down Height. It could process thick materials.

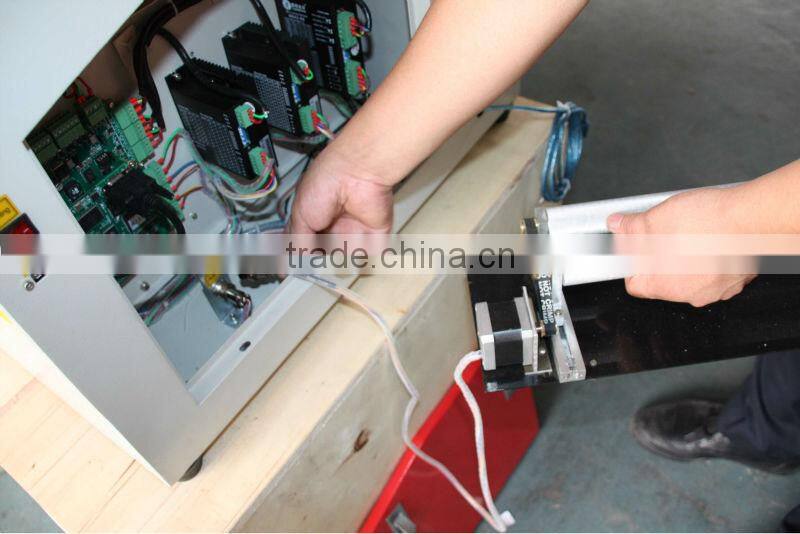

9) Rotary clamp: Machine equipment rotary connection. It could process round materials.
Small Rotary Clamp Parameter: Diameter 5-10CM Maximum Length: 20-25CM.
