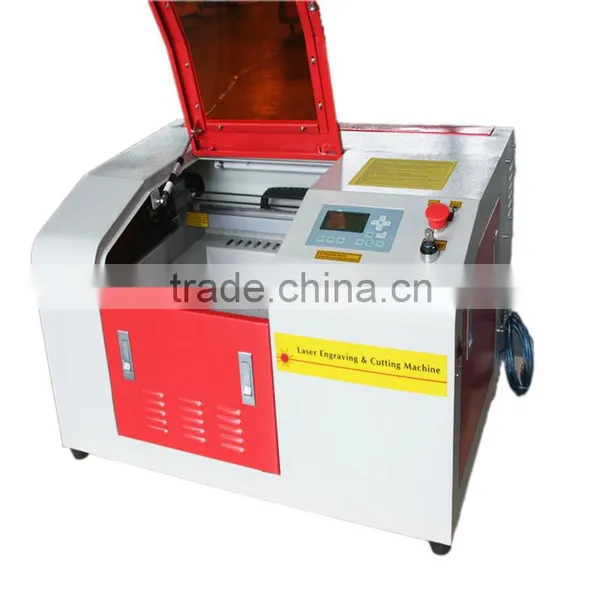

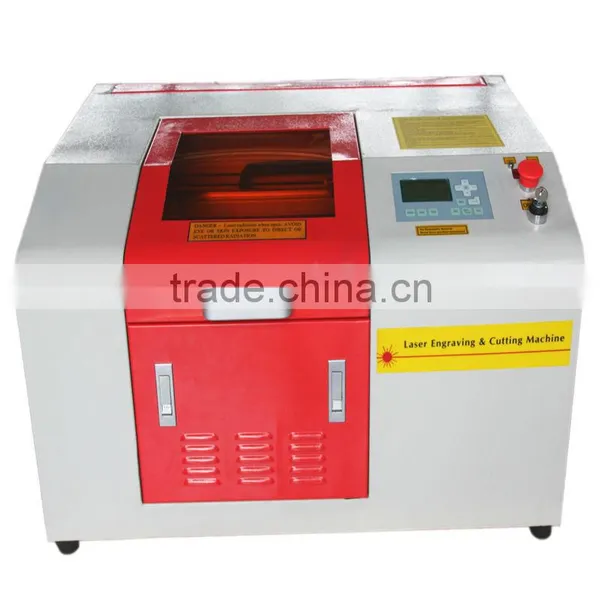

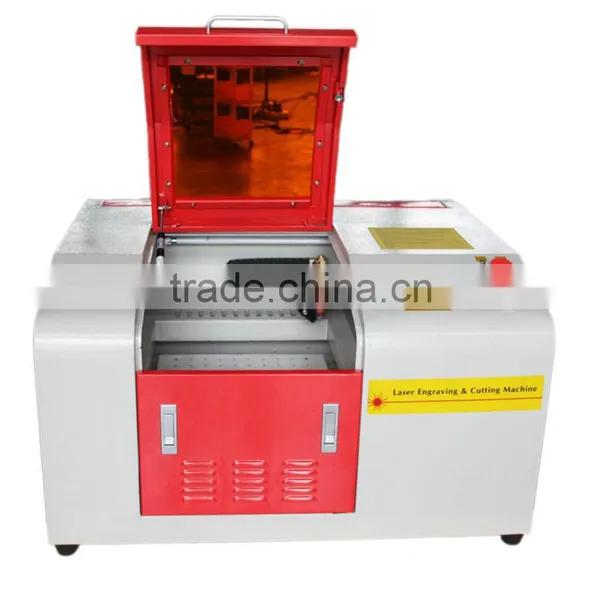

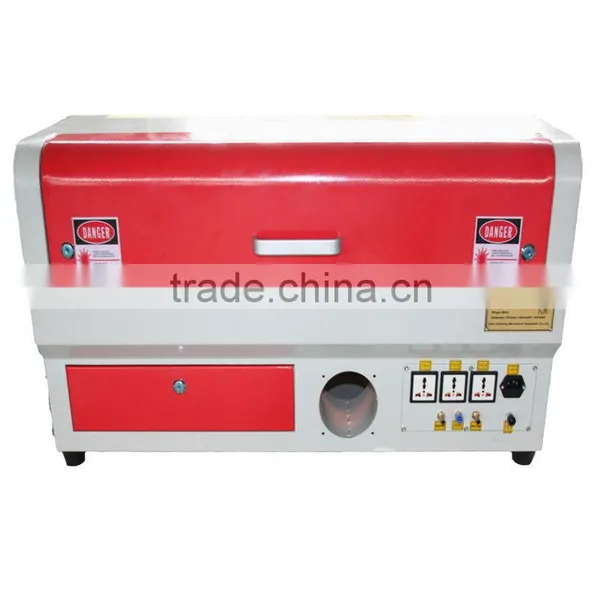

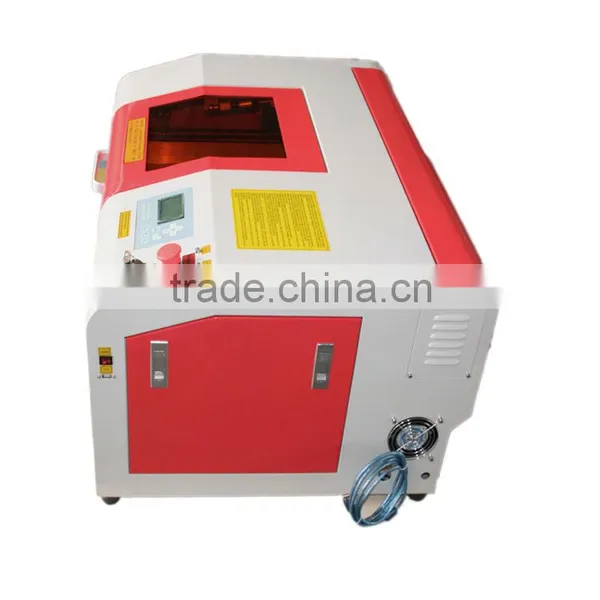

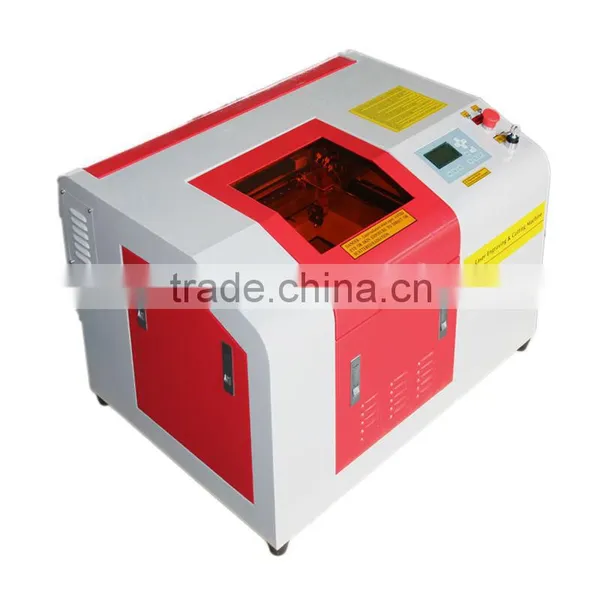

Super Mini Laser Engraving Machine With Up-down Table
- Qingdao
- T/T Credit Card PayPal
You May Like
Product Details
| Condition | New | Laser Type | CO2 | |
| Engraving Area | 30x30cm | Engraving Speed | 0-1000mm/s | |
| CNC or Not | Yes | Cooling Mode | Water Cooling | |
| Applicable Material | Acrylic, Crytal, Glass, Leather, MDF, Paper, plastic, Plexiglax, Plywood, Rubber, Stone, Wood | Graphic Format Supported | AI, BMP, DWG, DXF, DXP, PLT | |
| Place of Origin | Shandong, China | Brand Name | QX | |
| Model Number | 3030 | Dimension(L*W*H) | 80x60x45cm | |
| Certification | CE, ISO, SGS | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Mini lazer engraving machine with up-down table
Machine character:
1. Leetro card with USB,2. USB interface
3. LCD touch panel
4. square guide high performance 2-phase moto
5. 40W(1M) CO2 laser tube
6. Motorized up-down honeycomb worktable
7. Water flow sensor
8. Water pump, Air pump,Exhaust fan
Main application:
Available materials: acrylic, PVC, rubber sheet, plastic, crystal, glass, wood, bamboo, oxhorn, figuline,marble, leather, cloth, double-color board, etc. nonmetal materials
Technical parameter:
Product model | QX3030 Mini lazer engraving machine |
Maxi working area | 300x300mm |
Laser power (standard configuration) | 40W |
optional 50W | |
Laser Types | Hermetic And Detached CO2 Laser Tube |
Engraving speed | 0-75,000mm/min |
Cutting speed | 0-40,000mm/min |
Location precision | ≤0.01mm |
Resetting positioning accuracy | ≤0.01mm |
Power supply | AC 220V/50Hz |
Gross power | <1,000W |
Operating temperature | 0 - 45° |
Operating humidity | 5 - 95% |
Minimum shaping character | English 1×1mm |
360°slope engrave | Yes |
Driving system | stepper |
Cooling mode | Water-cooling and protection system |
Auxiliary Devices | Exhauster And Exhaust Pipe |
Software | Lasercut 5.3 |
Graphic format supported | BMP, CIF, JPEG, TGA, TIFF, PLT, AI, DXF, DST (TIANDAO Embroidery Software), DWG, CDR, etc |
Optional | Up&Down work table, Digital display, Rotary Clamp, Red light pointer, Auto focus, Filtrator |
Optional water cooling system | water pump, water chiller, air cooler |
Machine parts:
Assistant parts:

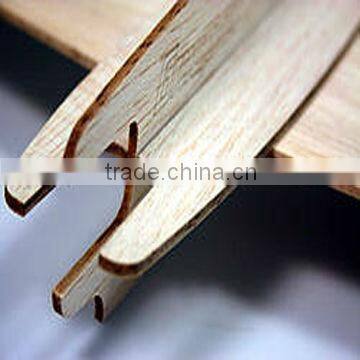

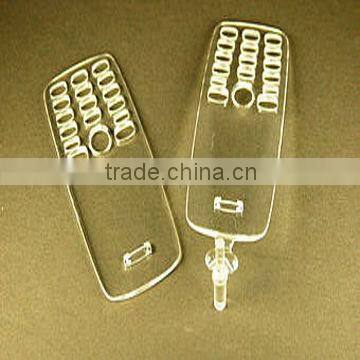

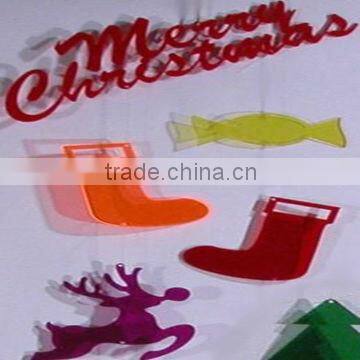

Application samples:
We specialize in manufacturing CNC routers,laser engraving and cutting machines, laser engraver and laser cutter,laser engraving machine and laser cutting machine plasma cutting machines and cutting plotters,Welcome to visit our factory in Jinan city.
