Specifications
1.adopts opened worktable,can widely cutting.2.using flight path design
3.more precise
Features:
1) Opened worktable, widely cutting.
2) Fast speed, smooth cutting and small joint.
3) Totally enclosed lightway, powerful security.
4) Imported linear guideway, higher precision
Aplicable materials:
acrylic,rubber,wood,bamboo,jade,marble,organic glass,glass,crystal,plastic,leather,cloth,paper and other non metal materials.
Applicaable industries:
advertisement,arts and craft, leather,toy,textile and garments,model,building upholster,computerized embroidery and clipping,package,paper,printing industry,etc.
parameter:
| model | QX1325 |
| engraving area | 1300*2500mm |
| laser tube watt | 80W |
| option watt | 60w,80w,100w,120w,150w |
| laser type | Co2 laser tube |
| engraving speed | 0~1000mm/s |
| resetting positioning accuracy | <0.01mm |
| minimum forming character | figure/English:1×1mm |
| power supply | 220v±10% 50HZ or 110v±10% 60HZ |
| driving system | stepper motor |
| communication interface | USB |
| control system | DSP offline control system |
| software supported | Artcut,Photoshop,Coredraw,AutoCAD,laser cut |
| main graphic format supported | PLT/DXF/BMP/AI |
| engraver for curve surfaces | rotary clamp is optional and used to engrave on curse surfaces |
| laser tube protection device | Yes |
| cooling way | water cooling |
| Assistant Equipment | water pump,exhaust fan and pipe,air pump |
| Certificate | CE,FDA,ISO9001 |
samples:

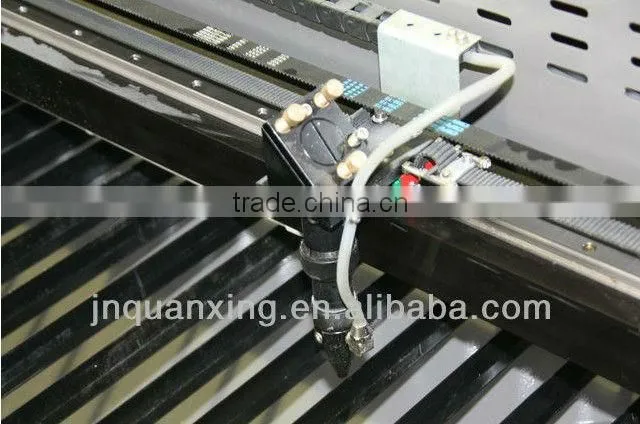

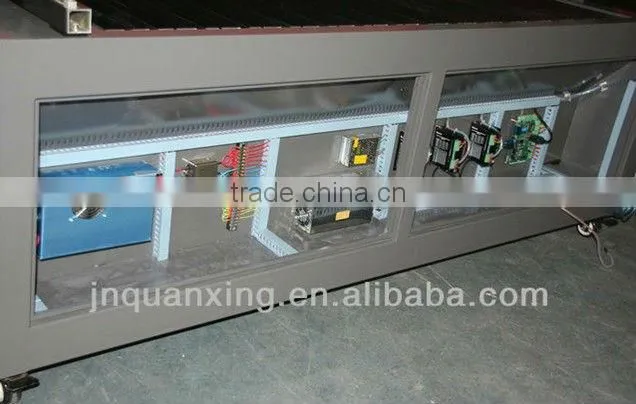

parts:
certificate:
WARRANTY:
1. 12 Months for Machine
2. 3 Months for laser tube, lens and mirror
3. 6 Months for equipments outside, such as water pump, fan, air pump,etc.
Tech support:
1.Detailed manual and video to guide the user how to use the machine and maintenance
2 also supply the specification settings for the speed and power to engrave or cut on various material.
3. Lifely and fast technical guide and solution within 24hours by email and web camera.
