Home > Manufacturing & Processing Machinery > Laser Equipment > Laser Cutting Machine > Small Laser Cutting Machine in China

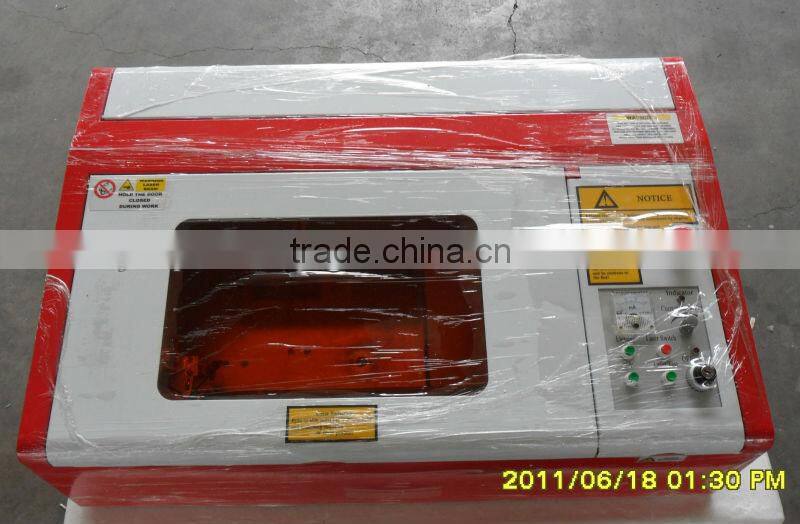

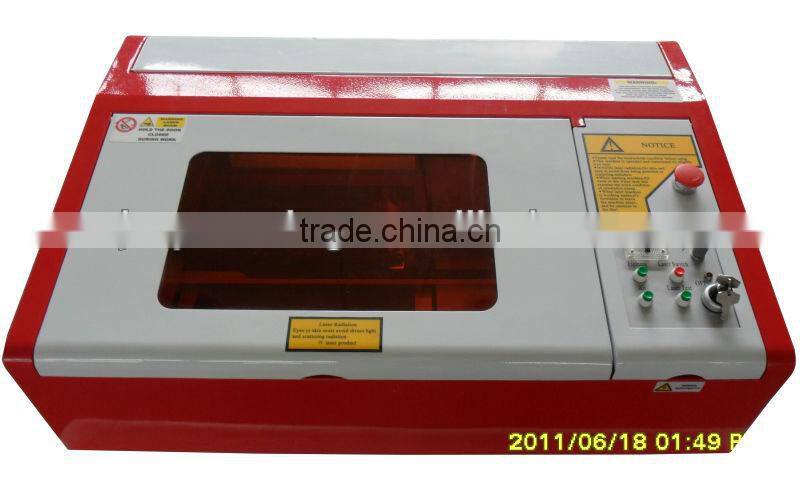

Small Laser Cutting Machine in China

Name: Small Laser Cutting Machine in China
Brand: Quanxing
SKU: 118932979
Availability: InStock

Small Laser Cutting Machine in China thumbnail-1

Small Laser Cutting Machine in China photo-1

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Condition:

New

Laser Type:

CO2

Applicable Material:

Acrylic, Crytal, Glass, Leather, MDF, Paper, plastic, Plexiglax, Plywood, Rubber, Stone, Wood

Contact Supplier Request Quote Chat Now

Jinan Quanxing Mechanical Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao/Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Laser Type CO2

Applicable Material Acrylic, Crytal, Glass, Leather, MDF, Paper, plastic, Plexiglax, Plywood, Rubber, Stone, Wood

Cutting Thickness 1-25mm acrylic

Cutting Area 315X220mm

Cutting Speed 0-400mm/s

CNC or Not Yes

Cooling Mode Water Cooling

Control Software DSP

Graphic Format Supported AI, PLT, DXF, BMP, DST, DWG, AI, PLT, DXF, BMP, DST, DWG

Place of Origin Shandong, China

Brand Name Quanxing

Model Number QX-4060

Certification CE, ISO, SGS, Other, CE, ISO, SGS, FDA

After-sales Service Provided Overseas third-party support available

Specifications

Small laser cutting machine in China
1.various workingtable
2.USB interface
3.up &down worktable
4. CE,FD

Small laser cutting machine in China

QX2030 Desktop laser engraving cutting machine
Model	QX2030
Engraving Area	315X220mm
Laser Power	35W(some factories called 40W)
Engraving Speed	0-500mm/s / 19.7in./s
Cutting Speed	0-50mm/s / 0-1.97in./s
Cutting Depth	0-4mm / 0-0.0157in.
Up and down work table	Manual Up and down 50mm adjustable
Minimum Shaping Character	1 X 1mm / (0.04 X0.04)in.
Resolution Ratio	0.0254mm / 0.001in. (1000dpi)
Power Supply	220+/-10% 50HZ/110+/-10% 60HZ
Resetting Positioning	Accuracy less than or equal to 0.01mm / 0.0004in.
Gross Power	500W
Motor Type	Stepper Motor
Communication Interface	USB 2.0
Graphic Format Supported	PLT,DXF,BMP(Direct output); JPG,GIF,PGN,TIF(Conversion output)
Software supported:	Design software: CorelDraw, PhotoShop Direct output software: Newlydraw (Included)
Engraver For Curve Surfaces(Yes/No)	Yes, ≤1.5mm
Water Cooling(Yes/No)	Yes
Laser Tube(life hours)	1200-1500 Hours
Equipment Dimensions	800X500X250cm / (31.5 X20 X9.8)in.
Net weight	35KG
Gross weight	37KG
Shipping Dimensions	945x640x430mm / (37.2X 25.2 X16.9)in.
Spare Parts Recommend (R): Laser Tube(R), Lens(R), Mirror(R)
Optional: Air pump, Honeycomb worktable for cutting, Red dot pointer, Clamp tool for stamp

Introduction:

QX9060 laser engraving and cutting machine is a laser equipment exploited specially according to advertisement, decoration and the development of the relative fields. This type of machine has the double effect of laser engraving and cutting. The equipment has the imported contrail and it is stable when running, the cutting waste is few, the cost is low, the engraving effect is good, the engraving depth can be adjusted, the frame of the cutting has no waste and need not to be polished.

Characteristics:

The imported beeline lead rail, imported stepper engine with the lower speed running structure, the cutting is very stable, the cutting face is smooth.

High intention, high precision mechanic structure design, the data control is stable.

Choose high technical laser tube, the beam of light is of high quality and the life is long.

Input the American imported focusing lens and mental condensing lens, the cutting strength is high.

Co figurate the industrial water cooling system with protection, the continuum work ability is stable.

The compatibility of the software is good, which can support the format of PLT, BMP, and DXF etc.

Applicable materials:

Non-metal materials such as double color board, Plexiglas, glass, acrylic,bamboo and wood, rubber, marble, granite and tiles, leather, cloth etc.

Applicable industry:

billboards, artistic gifts, crystal ornaments, paper-cut, bamboo and wooden product, garment and leather, embroidery, decoration and upholster industry.
