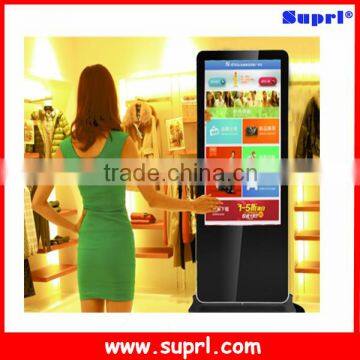

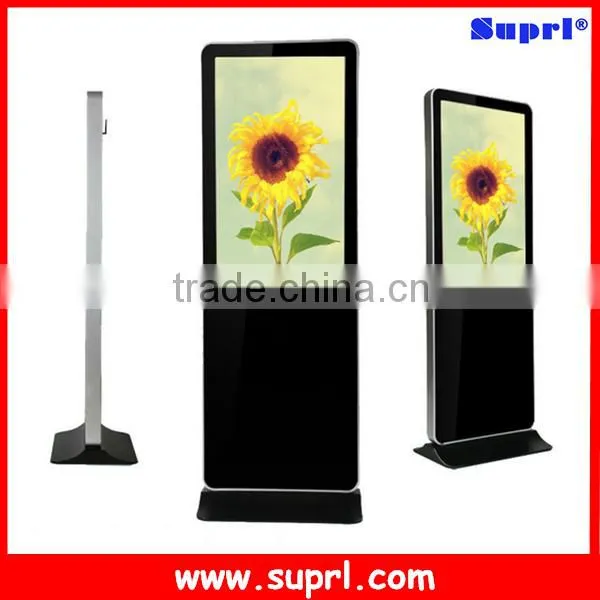

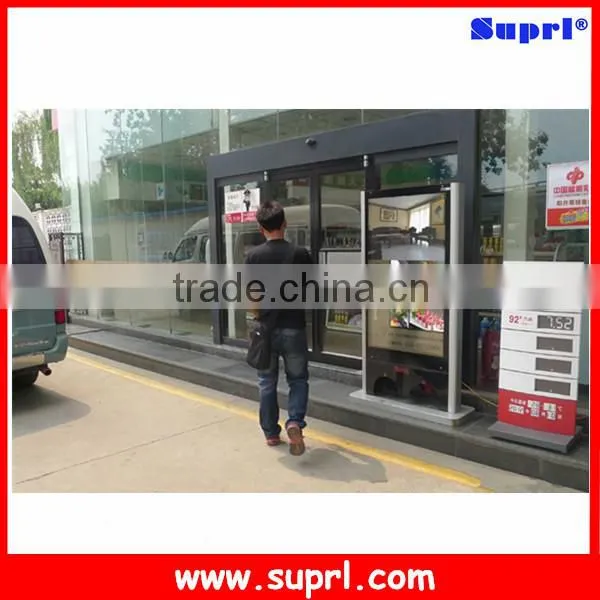

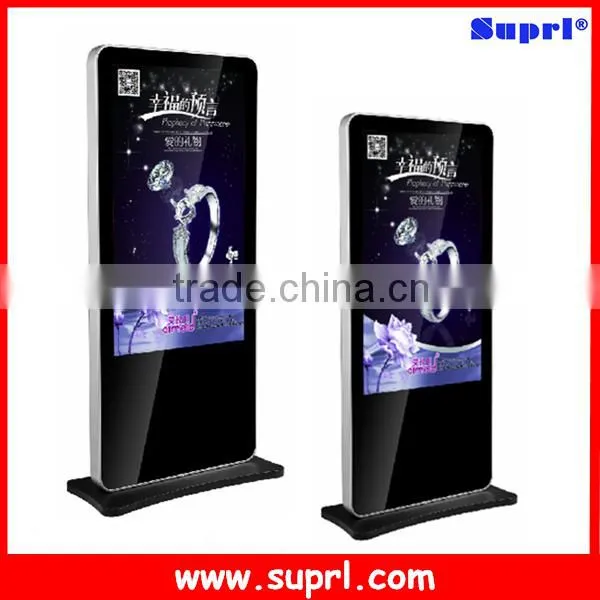

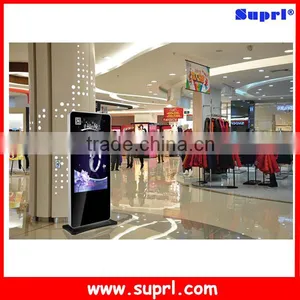

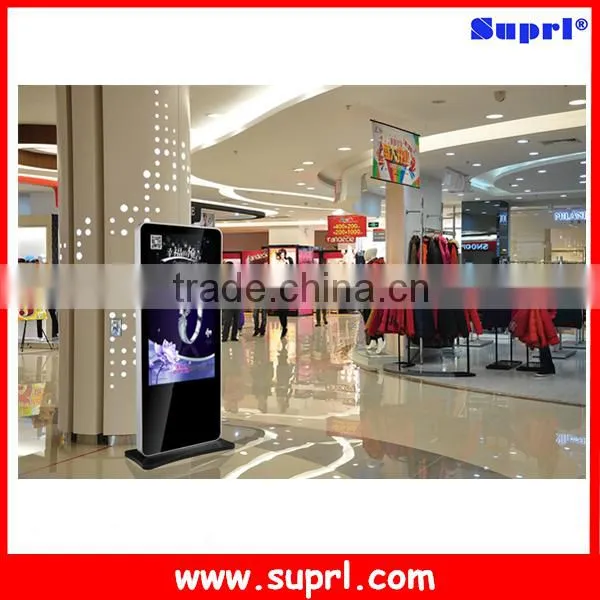

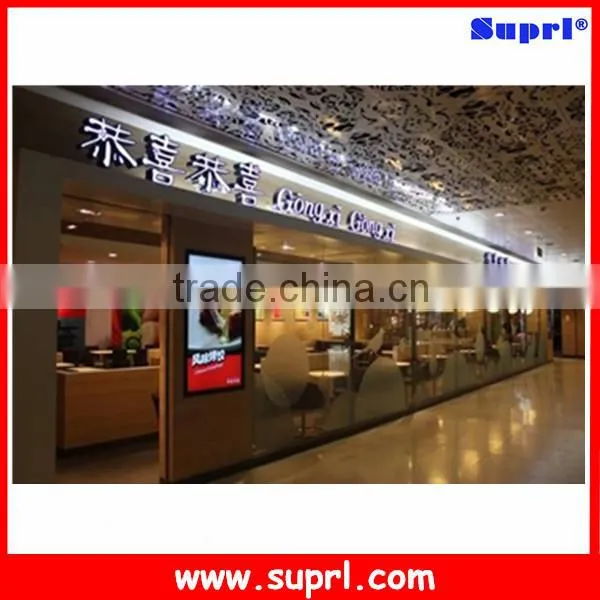

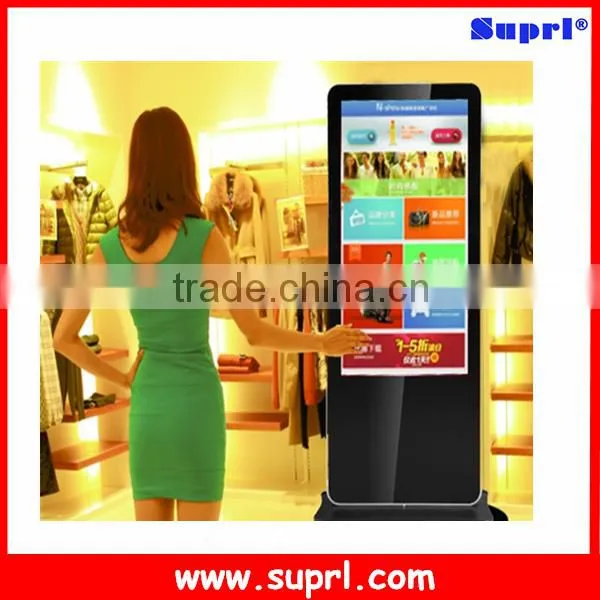

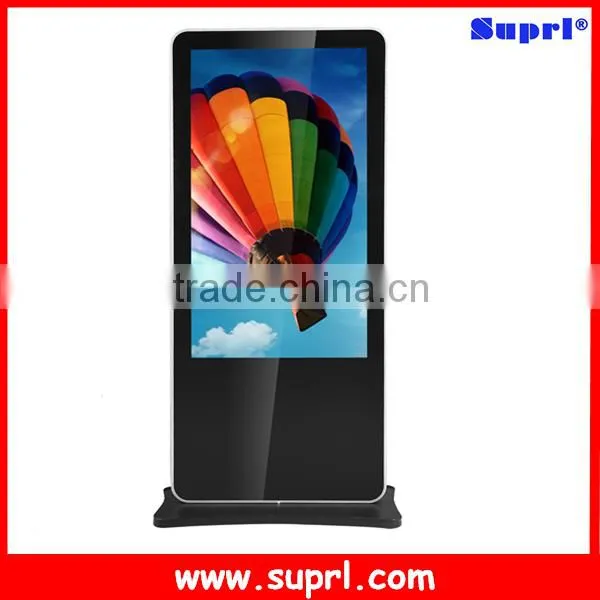

Help Center55" Advertising Slim Multi Touch Screen Kiosk
Related Products
-
42 Inch Free Standing Shopping Mall Kiosk DesignUS$ 600 - 800MOQ: 1 Piece -
17 Inch Floor Standing Android Bill Acceptor Payment KioskUS$ 400 - 700MOQ: 1 Piece
-
18.5" Self Service Kiosk Machine With Ticket PrintUS$ 400 - 700MOQ: 1 Piece
-
17" Touch Screen LCD Self Service Kiosk MachineUS$ 400 - 700MOQ: 1 Piece
-
21.5 Inch OEM LCD Coin-operated Kiosk With PrinterUS$ 400 - 700MOQ: 1 Piece
Basic Configuration | ||
|
Central PC (Customizable) |
Motherboard |
H61 |
CPU |
Dual core G2030, Main frequency: 3.0 GHz, Interface type: LGA 1155. Optional: i3/i5/i7 |
|
RAM |
DDRIII 4G / 8G |
|
HDD |
500G, 7200rpm, 3.5" S-ATA |
|
Inter face |
RS-232 Ports; LTP; USB Ports, 10/100M Net Port; Integrated Net Card, Sound Card |
|
Monitor |
Screen size |
32",42",46",55",65" etc. |
Brightness |
500cd/m2 |
|
Contrast |
1000:1 |
|
Response time |
5ms |
|
Dot pitch |
0.264mm |
|
Best resolution |
1920*1080 |
|
|
Touch Screen |
Screen size |
32",42",46",55",65" etc. |
Touch type |
Infrared |
|
Resolution |
4096x4096 |
|
Feature |
High transparence, precision and durability |
|
|
Kiosk Enclosure |
Material |
Cold-rolled steel ST12 SPCC with 1.5mm~2.0mm thickness. |
Surface finishing |
Car painting technology. Steel cabinet sprayed metallic paint, Anti-rust, Anti-acid, Anti-dust. |
|
Color and Logo |
Customizable |
|
Features |
Easy service access through front or back door. |
|
Accessories |
Speakers |
Stereo loudspeaker, 8Ω 10W |
Fans |
Internal ventilation system |
|
Power Supply |
Input voltage |
100~240V/AC |
Frequency |
50Hz to 60Hz |
|
Operation System |
Windows 2000 / Windows XP / Windows 7 / Vista / Windows 8 / Linux / Android |
|
Package |
Safe packing with bubble foam, carton box or plywood case |
|
Safety |
Anti-vandal safety; |
|
Electric safety: compliant with GB4943 Standard; | ||
EMC(Electro Magnetic Compatibility): Compliant with GB9254 and GB/T17626 Standard | ||
Monitoring system: Digital video security monitoring system (optional) | ||
|
Data safety: EPP is compliant with VISA Security Standard, PCI compliant (optional) ; Card reader is compliant with EMV Level1 Standard; | ||
Optional Component
Select optional devices according to your needs | ||
Printer |
Thermal Printer : Width 56mm /78mm /80mm /112mm /210mm; black mark sensor; full/half cutter |
|
Card printer: Encoding Magnetic cards, Contact or Contactless IC cards | ||
Document scanner |
1D/2D barcode scanner |
|
ID/Passport scanner | ||
Cash or coin modules |
Cash acceptor |
Acceptance:> 96%, capacity: 600notes, 900notes, 1000notes, 1200notes, 2200notes. |
Coin acceptor |
Coin diameter: 15~32mm, thickness: 1.5~2.5mm; |
|
Coin recycler |
Coin diameter: 15.7~28.5mm, thickness: 1.1~2.5mm; maximum 5 denominations. |
|
Keyboard |
EPP |
3DES Metal EPP : 16 keys, waterproof, dustproof, vandal proof IP65 |
Other peripheral |
Advertising screen /Wifi /GPRS /Webcamera /UPS /Card dispenser /3G Module |
|
Application
Business Organizations: Supermarket, large-scale shopping malls,
exclusive agency, chain shops, large-scale sales, starrated hotels,
restaurants, travel agencies, pharmacy.
Financial Organizations: Banks, negotiable securities, funds, insurance
companies, pawnshops;
Non-profit Organizations: Telecommunications, post offices, hospital, schools;
Public Places: Subway, airports, stations, gas stations, toll stations, bookstores,
parks, exhibition halls, stadiums, museums, convention centers,
ticket agencies, HR market, lottery centers;
Real Estate Property: Apartments, villas, offices, commercial buildings, model
rooms, property brokers;
Entertainments: Movie theaters, fitness halls, country clubs, clubs, massage
rooms, bars, cafes, Internet bars, beauty shops, golf course.
