Two Speed Hydroponics Centrifugal Inline Fan
- 5000 Piece / Pieces per Month
- FOB NINGBO
- T/T Credit Card
Product Details
Electric Current Type: | AC | Blade Material: | Plastic | Mounting: | Duct Fan |
Place of Origin: | Zhejiang, China | Brand Name: | HCSINO (OEM is available) | Model Number: | HCEU-D |
Power: | 68-380W | Voltage: | 110V/60HZ, 230V/50HZ, 230V/60HZ | Air Volume: | 165~1900m3/h |
Speed: | 2650 r/min | Certification: | CE, Other, CE,FCC,EMC,SAA |
Product Description

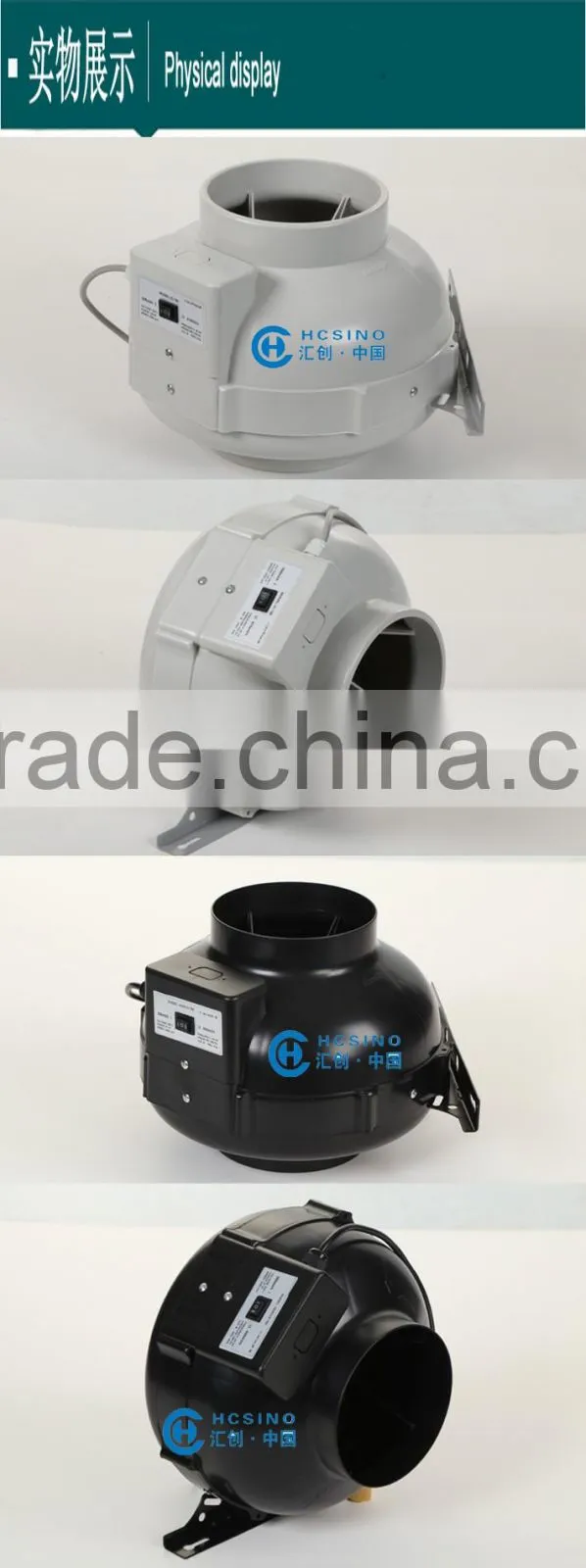

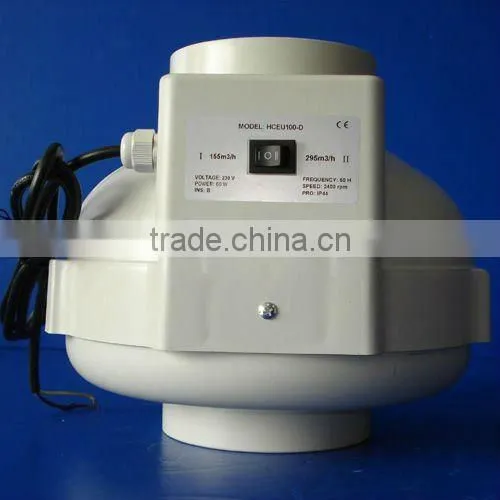

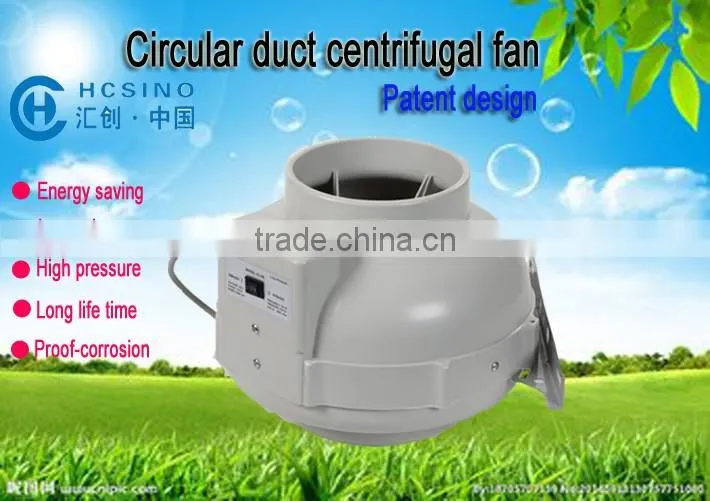

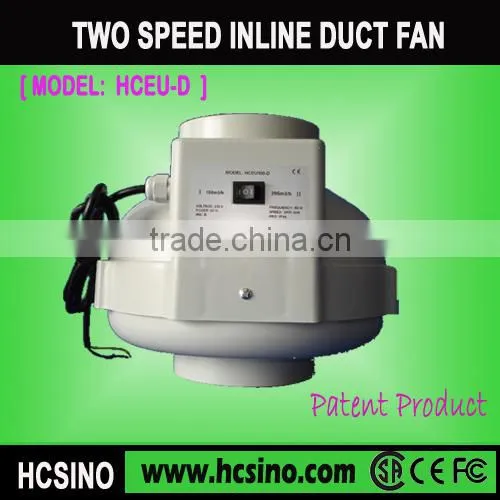

Product Name: Two Speed Hydroponics Centrifugal Inline Fan
- Centrifugal fan
- Housing Material: Plastic

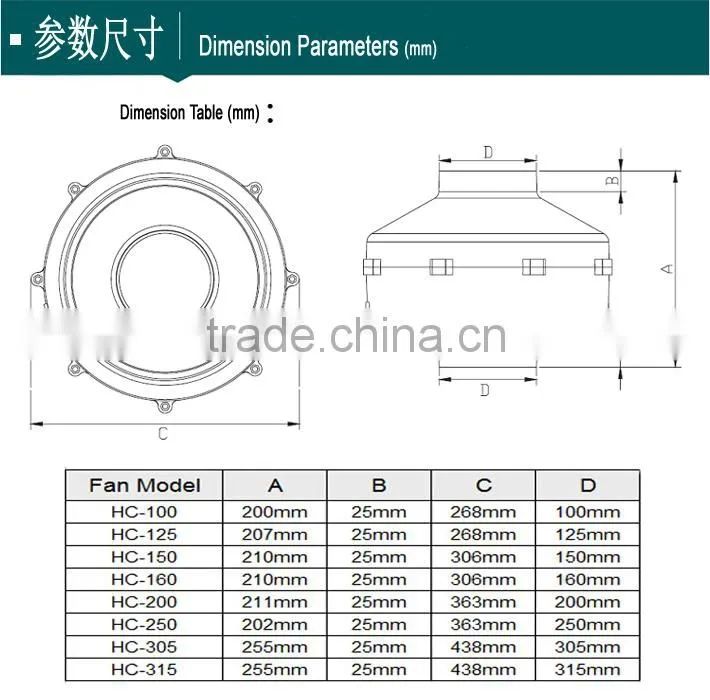

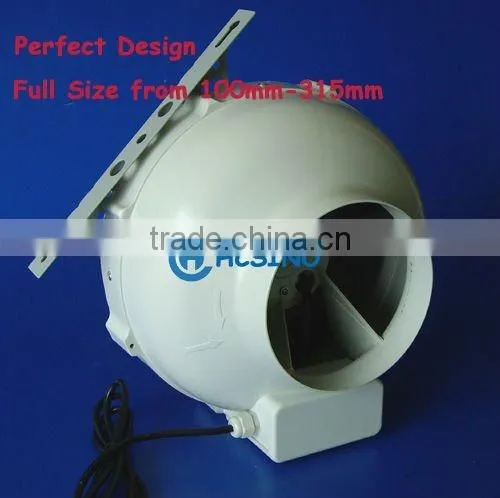

- Typical sizes available: Φ100; Φ125;Φ150; Φ160; Φ200; Φ250; Φ305; Φ315
- Colour available: White,Black ,grey,(green, yellow, etc.)

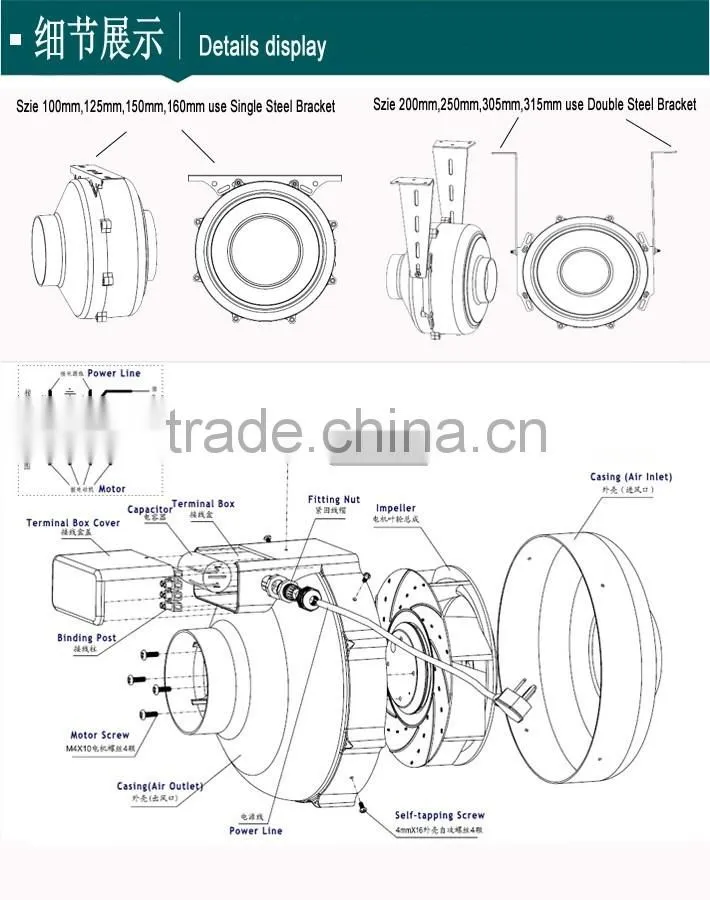

- With metal installation bracket,easy installation.
- With 1.5 m power cord (All kinds of plu can be chosen)
- With certifications of Unility model patents and Design patents.
- Products with CE,FCC,SAA,EMC,ROSH approved.
- Accessories:It can be connected with a variable speed controller, Providing the customer with variable airflow setting.

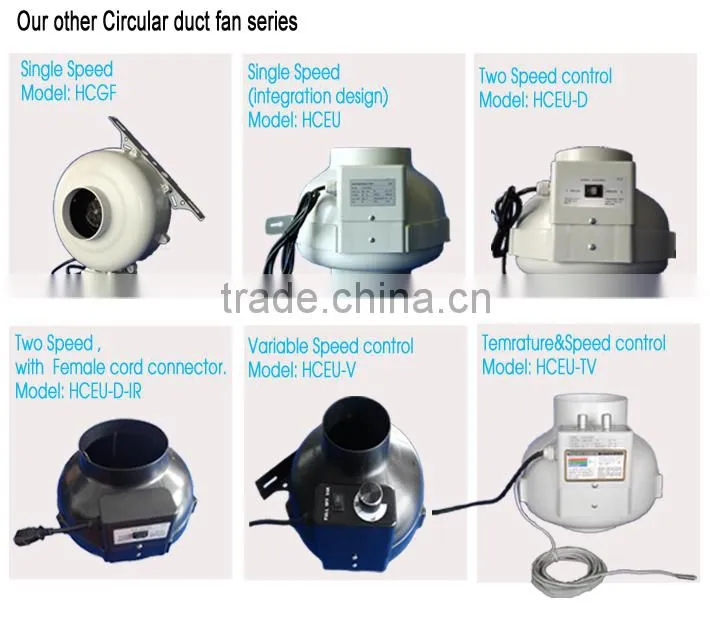

- Circular duct fan types:Single speed,Two speed,Variable speed,Temperature&speed control.

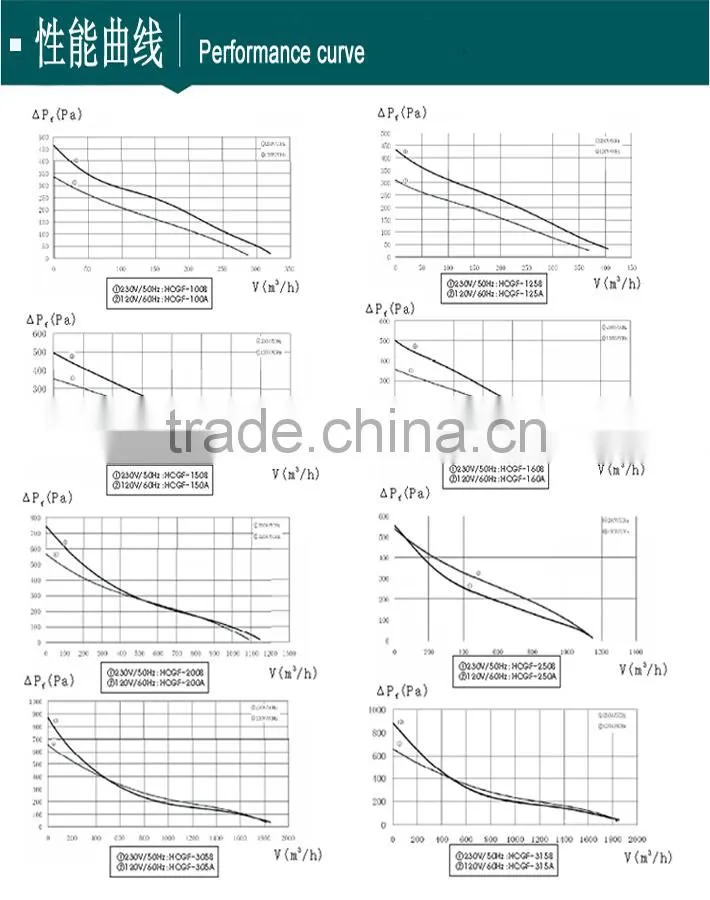

Product Specification: Two Speed Hydroponics Centrifugal Inline Fan
Model | Valtage | Frequency | Power | Air flow | rotate speed | Preeesure | noise | working temperature | Weight | Packing size |
(HCEU) | (V) | (HZ) | (W) | (m3/h) | (r/min) | (Pa) | (dB) | ( °C ) | (kg) | (cm) |
Φ100/4" | 230 | 50 | 80 | 175/350 | 2590 | 350 | 58 | -20~+60 | 2.5 | 27x27x24 |
Φ125/5" | 230 | 50 | 82 | 220/430 | 2540 | 330 | 58 | -20~+60 | 2.5 | 27x27x24 |
Φ150/6" | 230 | 50 | 120 | 305/610 | 2375 | 380 | 58 | -20~+60 | 3.2 | 29x29x24 |
Φ160/6.5" | 230 | 50 | 130 | 350/680 | 2580 | 370 | 58 | -20~+60 | 3.4 | 29x29x24 |
Φ200/8" | 230 | 50 | 190 | 525/1100 | 2145 | 570 | 58 | -20~+60 | 4.5 | 36x36x25 |
Φ250/10" | 230 | 50 | 195 | 600/1200 | 2180 | 570 | 58 | -20~+60 | 4.5 | 36x36x25 |
Φ305/12" | 230 | 50 | 245 | 925/1850 | 2410 | 660 | 58 | -20~+60 | 5.8 | 45x45x29 |
Φ315/12.5" | 230 | 50 | 250 | 950/1900 | 2375 | 680 | 58 | -20~+60 | 5.8 | 45x45x29 |
Product Description : Two Speed Hydroponics Centrifugal Inline Fan

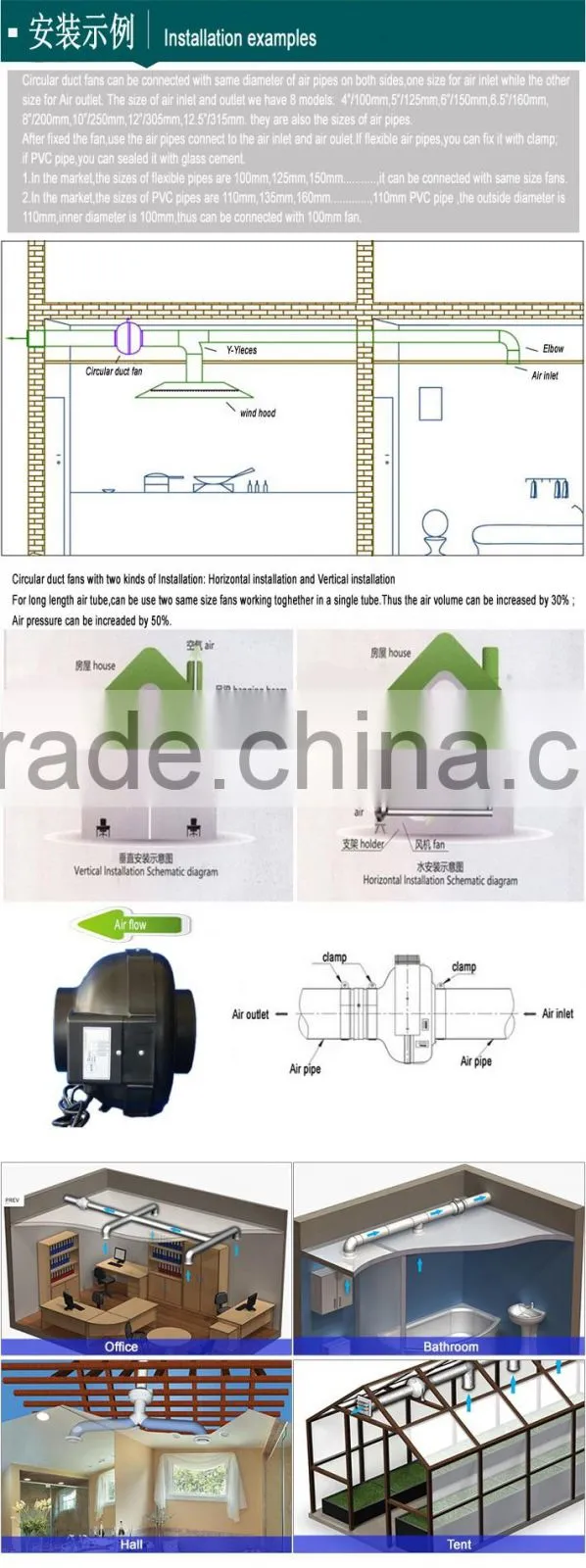

The size of air inlet is the same as air outlet. The fan can be connected with all kinds of air ducts (the size of air inlet and outlet is 100-315MM). Then, it saves a lot of money for pipeline design and installation expenses.

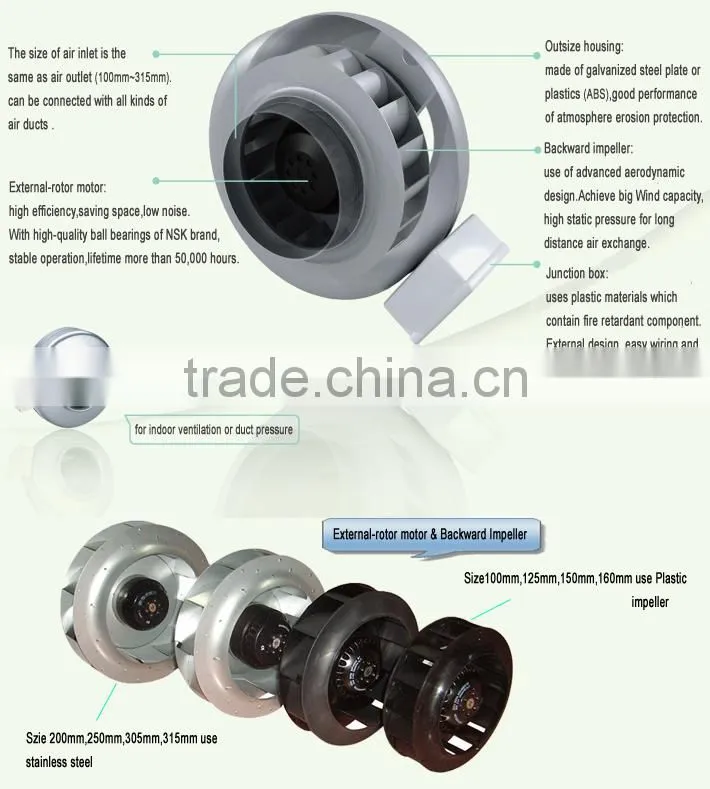

The crust matches well with the wind rotors which are designed by aerodynamics. It's designed to alleviate vibrations and noises. Then, it has the features of low noise, high static pressure, low volume, simple installation and low weight.
And it's suitable for wind sending, wind discharging, wind return, air filling and filtering of restaurants, hotels, supermarkets, warehouse and Greenhouse,Grow tent. Also, it can be used for indoor ventilation or air filling by higher pressure, and heat radiating of HVAC system.

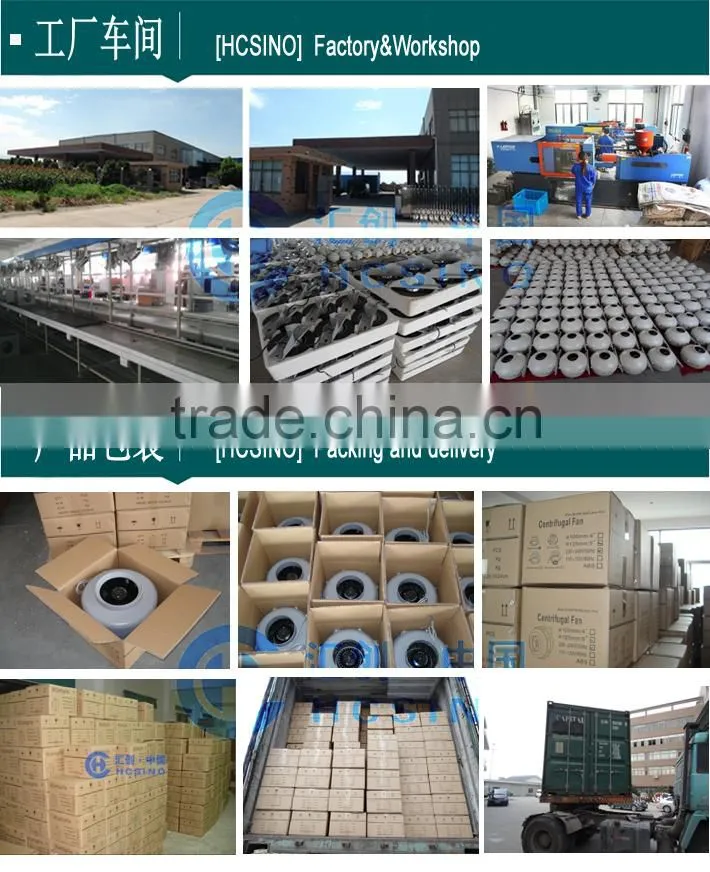

General Introduction of HCSINO
v More than 10 years manufacture experience.
v Fully committed to producing technologically advanced all kinds of Ventilation fans,air flexible ducts,fan speed controller,carbon air filter,air diffusers,Grow tent,GI metal pipe fittings and other Accessories
.can be used as customers requirement .
v Focus on providing our customers with top quality and innovative products.
v We are now the only on in China whom with test Machine, Before packing, each product will be tested.
v With sound business credit, excellent after-sales service, and modern manufacturing facilities, we have earned an excellent reputation among our customers across the globe.
Regularly Asked Questions ( RAQ)
1.Q:Are your company a manufacturer or trading company?
A:We are a manufacturer with years of exporting experience
2.Q:Where is your factory? How can I get there?
A:Our factory is located in hangzhou City, Zhejiang Province.Closed to Hangzhou (Xiao Shan) International Airport. It takes about half one hour by car from the airport to our company. Almost all of our customers can take the flight to Hangzhou international airport first, and then we can send a car to pick up you.
3.Q:Can your products be customized?
A: Almost all of our products can be customized, including the sizes, color, logo, package and so on. OEM is acceptable.
4. Q: What is the advantages of your products?
A: Our circular duct fan is a new types of duct fan with Certifications of Unility modle patents and Design aptents.And products with CE,FCC,SAA,which can be sold all over the world.
5. Q: What makes your company a reliable supplier?
A: Many years of experience in manufacturing and exporting.Before packing, each product will be tested.
Strict quality control, the QC strictly carries on a precise process to ensure the best quality. We have the most professional overseas sales and customer service team. In a word, we offer you not only the products, but also the professional service.
