Home > Products > Plastic Round Inline Fan > Greenhouse Circulation Plastic Ventilator

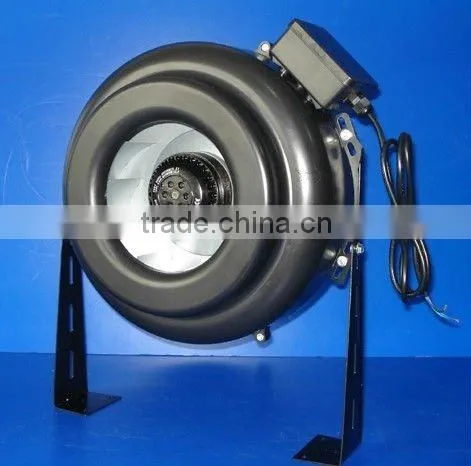

Greenhouse Circulation Plastic Ventilator
- 3000 Piece / Pieces per Month
- fob ningbo
- T/T Credit Card
Product Details
Place of Origin: | Zhejiang, China | Brand Name: | HCSINO or OEM | Model Number: | HCGF |
Product Description
Specifications
High quality moulded impellerThermally protected AC motor
Includes mounting bracket
CE, EMC, FCC certificates
1 Phase, (Plastic Housing) Powerful and Quiet c/w Mounting Brackets
These fans are manufactured with a high impact polyester casing complete with detachable mounting brackets and incorporate the reliable, long life, external rotor motor c/w a high efficiency backward curved impellor
This range of fans are excellent for long ducting runs, low noise and easy to install. Ideally suited for a wide range of general residestial, commercial and industrial exhaust or supply ventilation applications.
National Patent Products.
Independently reseached, developed, manufactured and promoted by HCSINO
DETAILS
Colour available: Black, White, etc
Accessories: It is possible to connect a variable speed controller, Providing the customer with variable airflow setting.
TECHNICAL PARAMETER
Model | Voltage | Frequency | Power | Rotate | Air Flow | Pressure |
(HCGF) | (V ) | (HZ) | (W) | (R/Min) | (M3/H) | (Pa) |
Φ100mm | 120 / 230 | 60 / 50 | 68 | 2590 | 310 | 350 |
Φ125mm | 120 / 230 | 60 / 50 | 70 | 2540 | 400 | 365 |
Φ150mm | 120 / 230 | 60 / 50 | 99 | 2375 | 620 | 380 |
Φ160mm | 120 / 230 | 60 / 50 | 130 | 2580 | 670 | 400 |
Φ200mm | 120 / 230 | 60 / 50 | 180 | 2145 | 1050 | 580 |
Φ250mm | 120 / 230 | 60 / 50 | 190 | 2280 | 1150 | 610 |
Φ305mm | 120 / 230 | 60 / 50 | 215 | 2410 | 1850 | 680 |
Φ315mm | 120 / 230 | 60 / 50 | 230 | 2375 | 1900 | 710 |
SPEED CONTROLLER FOR CHOOSING
