4"~12.5" Inline Duct Fan With CE Certification

4"~12.5" Inline Duct Fan With CE Certification thumbnail-1
4"~12.5" Inline Duct Fan With CE Certification photo-1
US$ 1 - 69 MOQ: 50 Pieces
Key Specifications
Get Latest Price
Electric Current Type:
AC
Blade Material:
Plastic
Mounting:
Duct Fan
Contact Supplier Request Quote Chat Now
Hangzhou Huichuang Import & Export Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
fob ningbo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Electric Current Type AC
Blade Material Plastic
Mounting Duct Fan
Place of Origin Zhejiang, China
Brand Name HCSINO
Model Number HCGF
Power 68~222
Voltage 230
Air Volume 310~1900
Speed 2590
Certification CE

Specifications

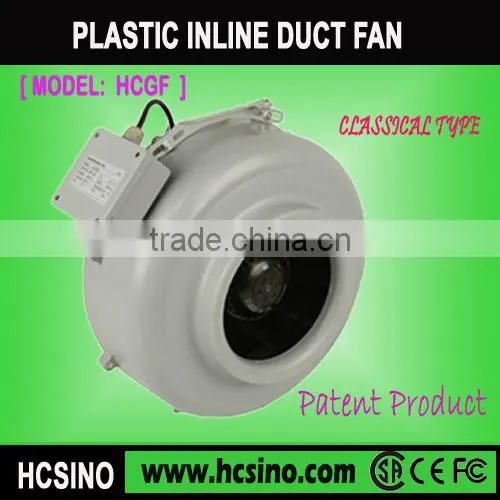

plastic inline duct fan
1.Plastic Housing
2.Perfect design & construction
3.High quality, excellent service
4.Includes moun

4"~12.5" Inline duct Fan with CE certification



 Product Description :

  • Housing  Material:  Plastic

    Typical sizes available:  Φ100;  Φ125;  Φ150;  Φ160;  Φ200;  Φ250;  Φ305;  Φ315
    Colour available: White ( Other colour : black, grey,green, yellow,  etc)
    It is used to transmit and strengthen the air flow inside a network of ventilation ducts.
    The fan is equipped with ball bearing, enabling the installations to be mounted both horizontally and vertically.

    The casing is made from Plastic (ABS) and the fan sat included fixings for a secure installation.

    Accessories:It is possible to connect a variable speed controller, Providing the customer with variable airflow setting.

  •

    TECHNICAL PARAMETER

    Model

    Voltage

    Frequency

    Power

     Rotate

        Air Flow

    Pressure

    (HCGF)

    (V )

    (HZ)

    (W)

    (R/Min)

    (M3/H)

    (Pa)

    Φ100mm

    120 / 230

    60 / 50

    68

    2590

    310

    350

    Φ125mm

    120 / 230

    60 / 50

    70

    2540

    400

    365

    Φ150mm

    120 / 230

    60 / 50

    99

    2375

    620

    380

    Φ160mm

    120 / 230

    60 / 50

    130

    2580

    670

    400

    Φ200mm

    120 / 230

    60 / 50

    180

    2145

    1050

    580

    Φ250mm

    120 / 230

    60 / 50

    190

    2280

    1150

    610

    Φ305mm

    120 / 230

    60 / 50

    215

    2410

    1850

    680

    Φ315mm

    120 / 230

    60 / 50

    230

    2375

    1900

    710



    Fan speed controller for choose

    4"~12.5" Inline duct Fan with CE certification

  •

4"~12.5" Inline duct Fan with CE certification



4"~12.5" Inline duct Fan with CE certification
