Help CenterItaly Inline Centrifugal Fan (HCGF)
Related Products
Specifications
Italy Inline Centrifugal Fan1.Factory direct sales
2.plastic housing
3.It's our patent

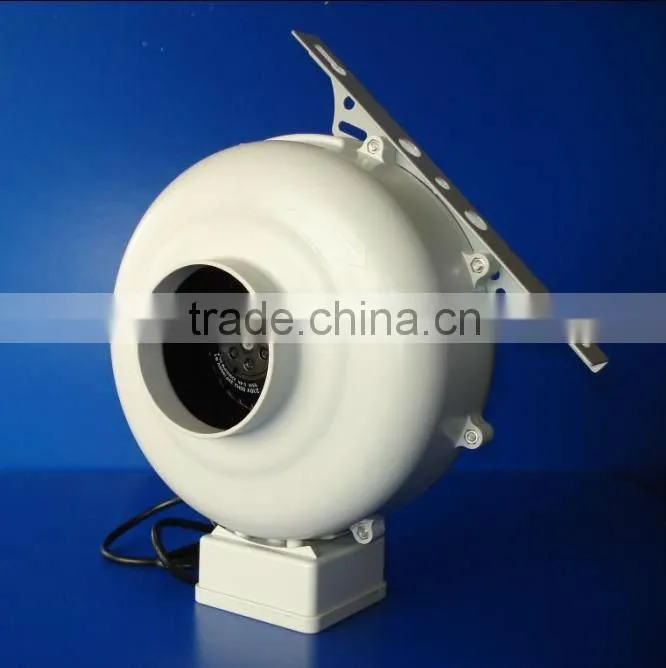

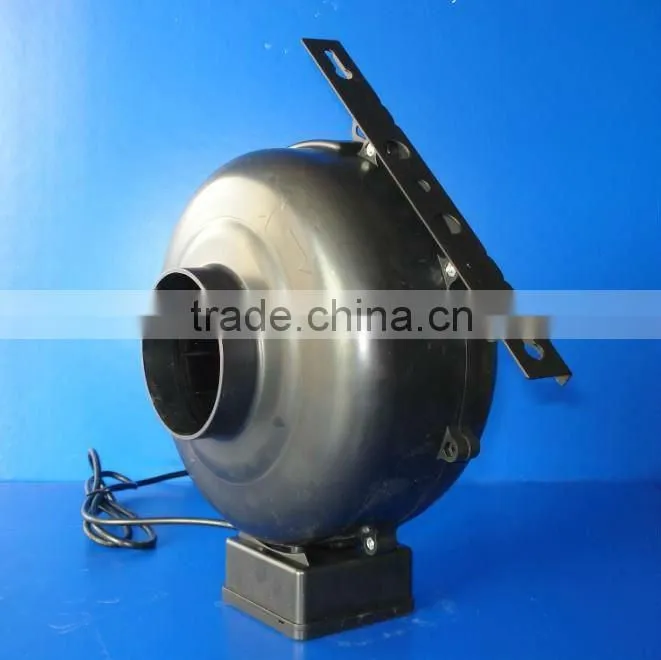

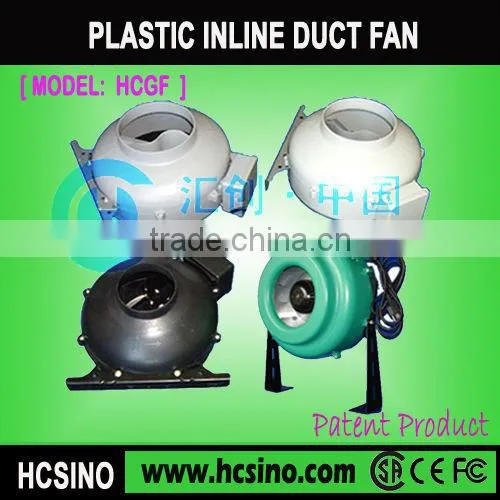

Italy Inline Centrifugal Fan
Model.HCGF
120V/60HZ or 230V/50HZ
Product Description
Plastic Inline ventilation fan is a product which bears many national inventions.It's a new type of duct fan with a patented shape.
The size of air inlet is the same as air outlet. The fan can be connected with all kinds of air ducts (the size of air inlet and outlet is 100-315MM). Then, it saves a lot of money for pipeline design and installation expenses.
The crust matches well with the wind rotors which are designed by aerodynamics. It's designed to alleviate vibrations and noises. Then, it has the features of low noise, high static pressure, low volume, simple installation and low weight.
And it's suitable for wind sending, wind discharging, wind return, air filling and filtering of restaurants, hotels, supermarkets, warehouse and Greenhouse,Grow tent. Also, it can be used for indoor ventilation or air filling by higher pressure, and heat radiating of A/C cooling equipments.
♣ Products with CE,FCC,SAA,EMC,ROSH approved.
| Model | Voltage | Frequency | Power | Rotate | Air Flow | Pressure |
| (HCGF) | (V ) | (HZ) | (W) | (R/Min) | (M3/H) | (Pa) |
| Φ100 | 120/230 | 50/60 | 68 | 2590 | 310 | 350 |
| Φ125 | 120/230 | 50/60 | 70 | 2540 | 410 | 330 |
| Φ150 | 120/230 | 50/60 | 99 | 2375 | 610 | 380 |
| Φ160 | 120/230 | 50/60 | 130 | 2580 | 670 | 370 |
| Φ200 | 120/230 | 50/60 | 180 | 2145 | 1050 | 570 |
| Φ250 | 120/230 | 50/60 | 180 | 2180 | 1100 | 570 |
| Φ305 | 120/230 | 50/60 | 215 | 2410 | 1850 | 660 |
| Φ315 | 120/230 | 50/60 | 222 | 2375 | 1900 | 680 |
With CE ,FCC approval Centrifugal fan motor,230V/50HZ or 120V/60HZ are available.As different country with different voltage.

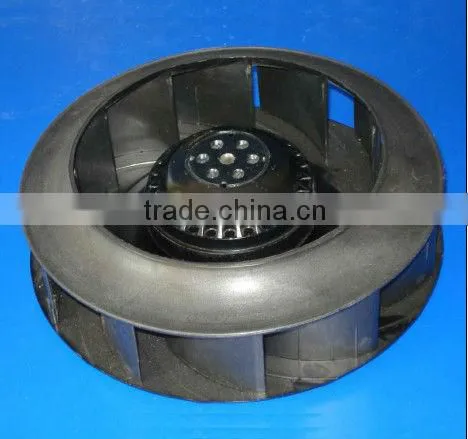

Backward impeller, paddles of impeller are backward inclined .:
1.The imppellers of Diamter 100mm-160mm fans are manufactured by new type plastics paddles and metal plates.
2.For fans diameter from 200mm-313mm wih all metal paddles and plates

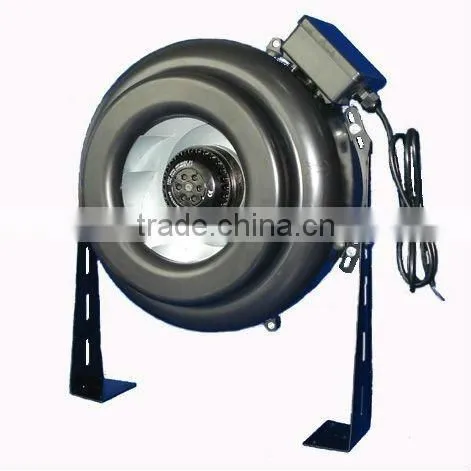

With Metal mouting Bracket for easy installstion of each fan:
1.For fan Diameter from 100mm-160mm with single bracket
2.For fan diameter from 200mm-315mm with double Bracket

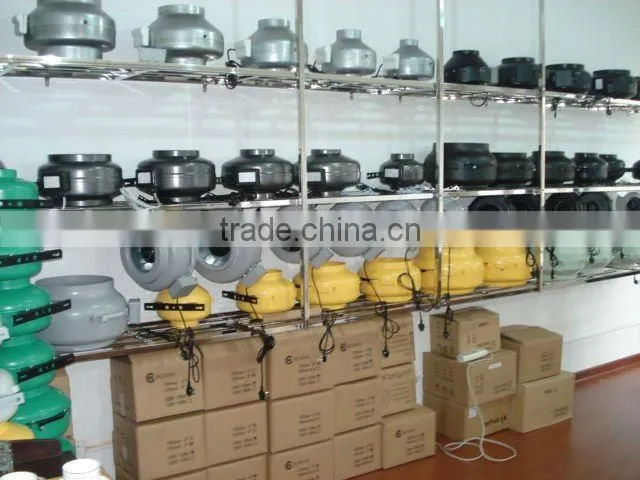

Corner of our Sample Showroom and warehouse
