Specifications
Inline fan1.110~240VAC .4"~12.5"
2.With 4m long external temperature sensor
3.With Temperature&speed control

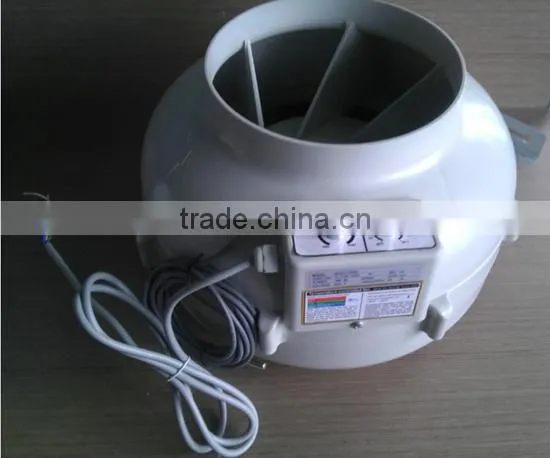

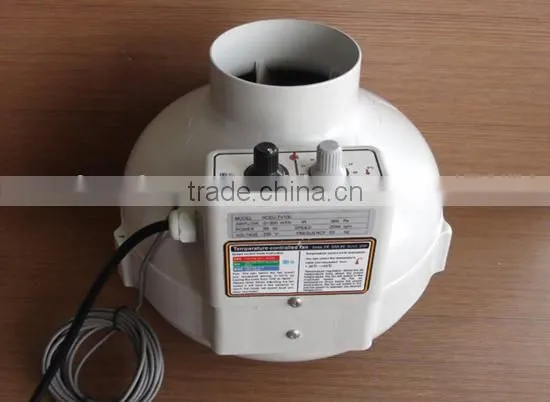

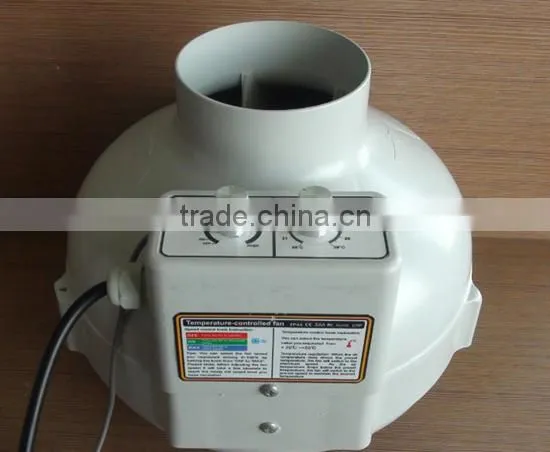

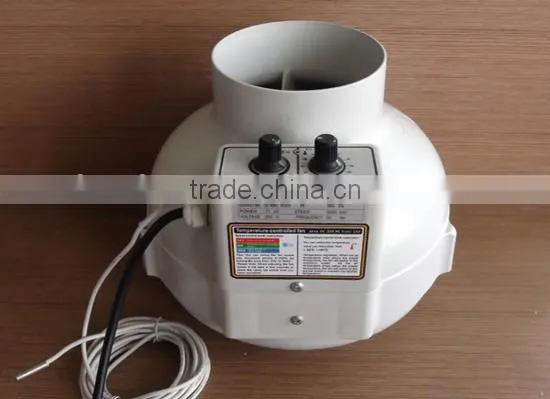

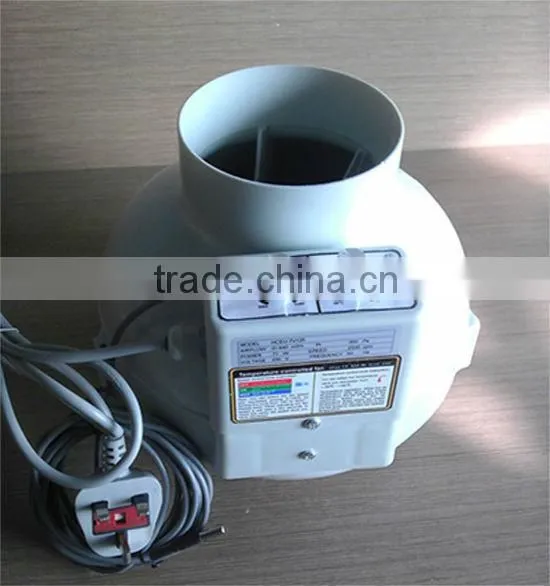

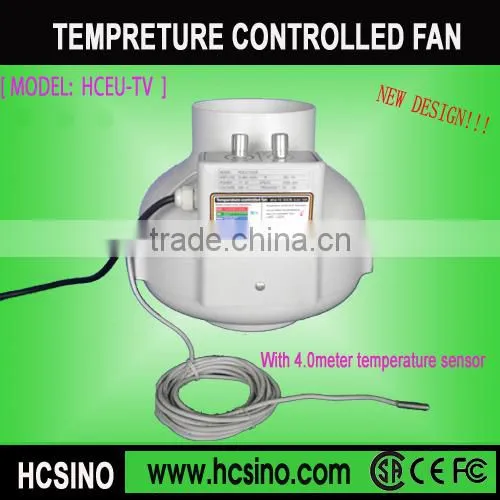

Commercial ventilation Circular inline duct fan,Temperature control
Inline centrifugal fan general instroduction:
*Built-in speed control knob.
*Built-in temperature control knob.
*4m long temperature probe for accurate temperature reading of your grow room
*Integrated thermal cut-out with automatic reset
*High-quality moulded impeller
*Easy installation and dismantling
*Duct mountable in many positions, bracket included
1. Input:110~240VAC available
2. Fan Housing Material: Plastic
3. Typical sizes available: Φ100 ; Φ125 ; Φ150 ; Φ160 ; Φ200 ; Φ250 ; Φ305 ; Φ315

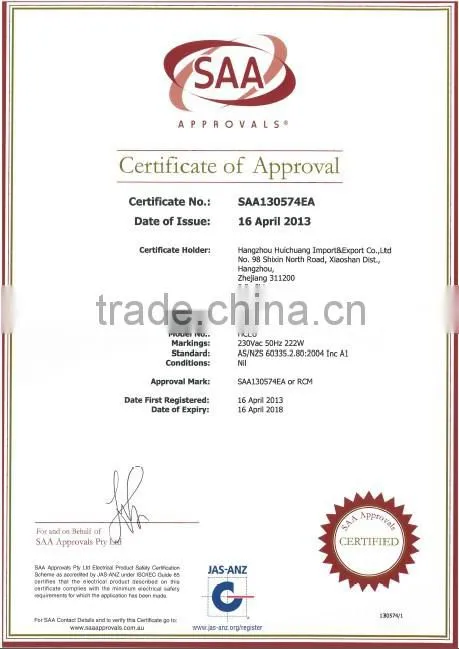

4. With certifications of CE, FCC, SAA,EMC,RoHS
5. With metal installation bracket

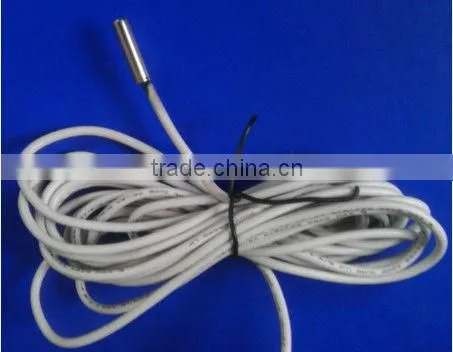

6. With 4.0meter temperature sensor
7. With 1.5 m power cord
8.It's our patent.

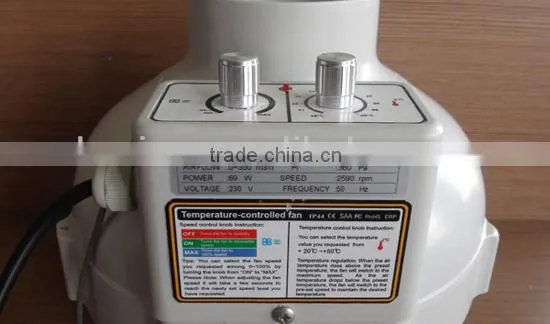

There are two control dials to set the required temperature and airflow. If the air temperature rises above the thermostat threshold (maximum set temperature), the motor will automatically switch to the maximum speed.
As the air temperature drops below the thermostat threshold the motor will switch to the pre-set speed to maintain the desired temperature.
For example,
-Rated wind speed is set to the 30% of Max. speed
- The running critical temperature is set to 25 degrees
-If The pipe air temperature is 20 degrees,The motor will running at rated wind speed; When The pipe air temperature rose to 27 degrees,Motor will running at 100% full speed .
- While the temperature dropped to 25 degrees, and motor will go back to the rated wind speed and running.
Temperature controlled ventilation provides the ideal solution for horticultural spaces that experience the temperatures of HID lighting, giving plants a more stable growing environment and higher productivity.
| Model | Voltage | Frequency | Power | Rotate | Air Flow | Pressure |
| (HCEU-TV) | (V ) | (HZ) | (W) | (R/Min) | (M3/H) | (Pa) |
| Φ100 | 120/230 | 50/60 | 69 | 2590 | 0~305 | 360 |
| Φ125 | 120/230 | 50/60 | 71 | 2535 | 0 ~440 | 350 |
| Φ150 | 120/230 | 50/60 | 100 | 2350 | 0 ~ 610 | 420 |
| Φ160 | 120/230 | 50/60 | 130 | 2580 | 0~ 680 | 430 |
| Φ200 | 120/230 | 50/60 | 190 | 2150 | 0 ~1050 | 600 |
| Φ250 | 120/230 | 50/60 | 190 | 2100 | 0 ~1100 | 550 |
| Φ305 | 120/230 | 50/60 | 250 | 2410 | 0~1810 | 650 |
| Φ315 | 120/230 | 50/60 | 250 | 2460 | 0~ 1850 | 680 |
