Kneading Machine

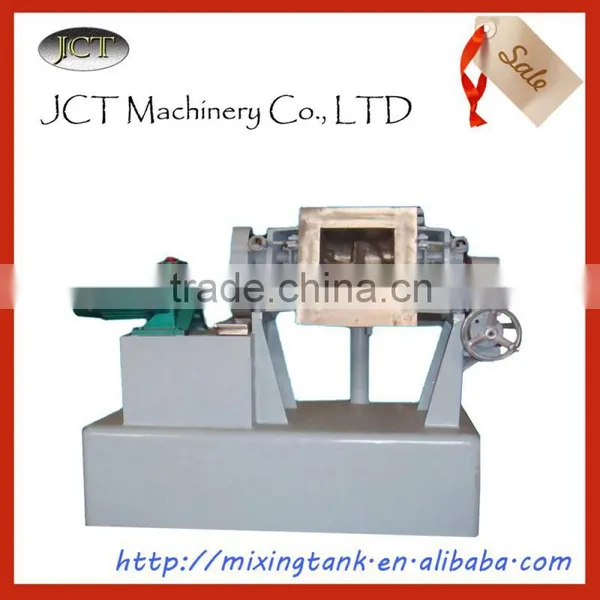

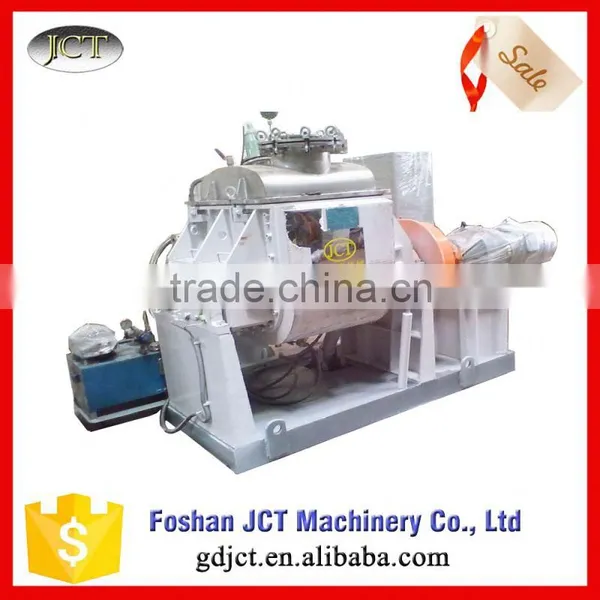

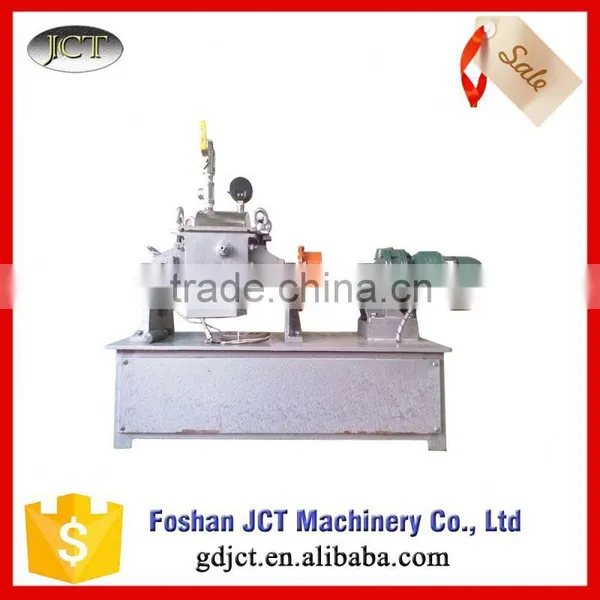

1. Different kinds of Kneading Machine for chewing gum and small candy making
carbon steel kneading machine
carbon steel kneading machine

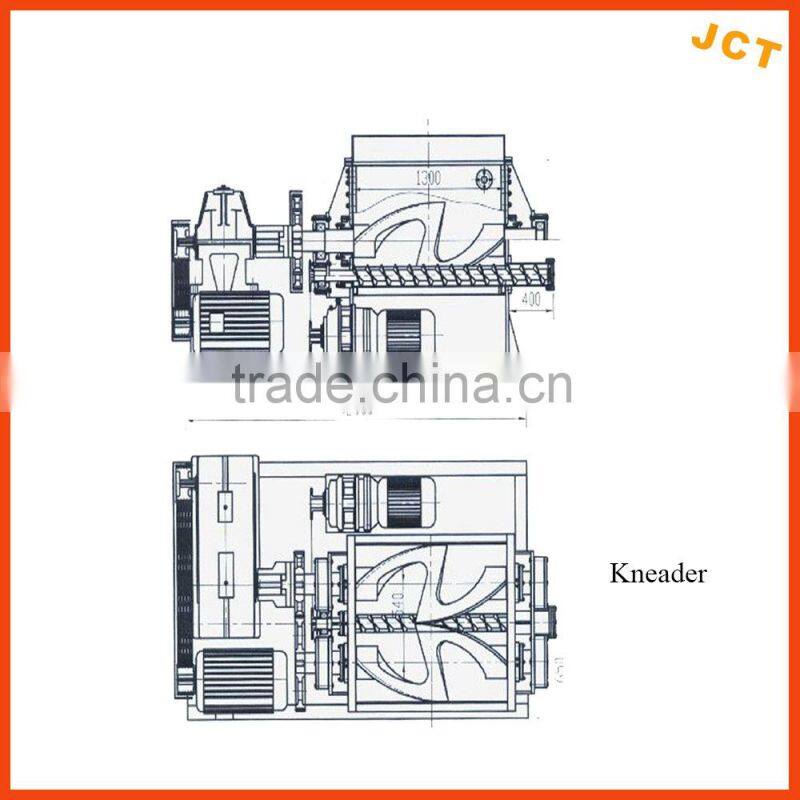

Structure Chart of The Kneaing Machine small candy making machine
carbon steel kneading machine

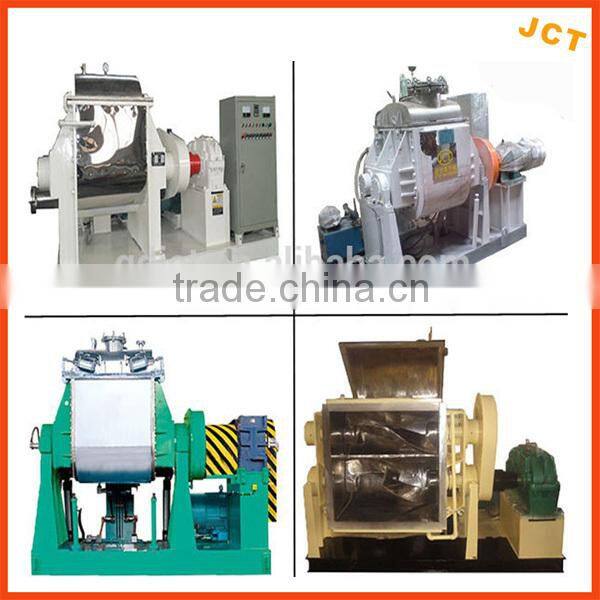

Kinds of Kneading Machine provided.
Mainly include:
1). Hydraulic lid off (For small amount production).
2). Hydraulic tilting (Referring to the parameter).
3). The bottom bumping (Automatic operation or mass production recommended).
3). Laboratory Kneading Machine for testing.
carbon steel kneading machine

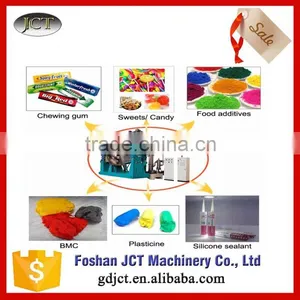

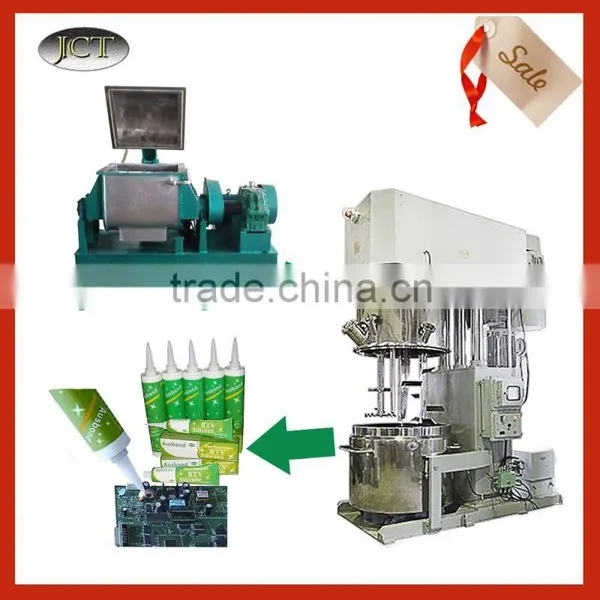

2. Applicationof the Kneading Machine :
carbon steel kneading machine
Kneading machine is widely used for the raw material mixing of Ink, Eraser, Silicone sealant, Plasticine, Gum and other high viscosity materials.
carbon steel kneading machine
3.Features of The Kneading Machine :
1). With no dead spot, Kneading Machine works high-efficiency in mixing, kneading, crushing and dispersing for viscous materials.
2). Inverter for frequency control.
3). Vacuum or Forcing are available.

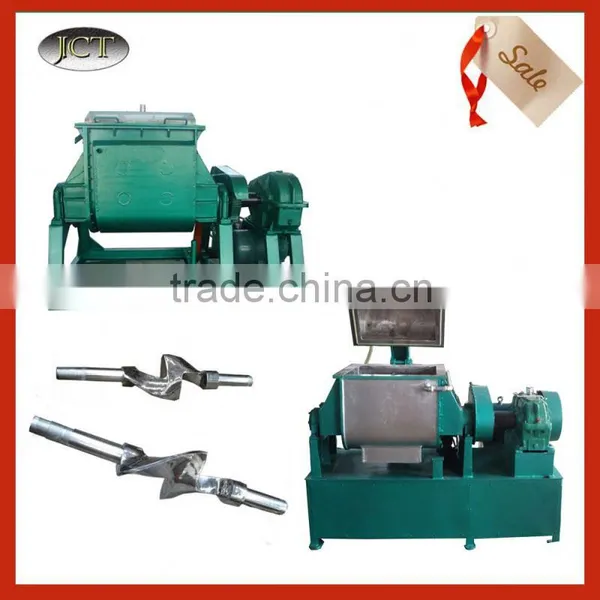

4). Two sigma or Z-type blades.
5). Discharge mode: Hydraulic lid off, Hydraulic tilting, Bottom pumping.
6). Jacketed electric heating or cooling.
7). Items are made of stainless steel.
carbon steel kneading machine
4. Technical specification of the Kneading Machine
|
Model
|
Volume (L) |
Drive motor power (KW) |
Mixing Speed (rpm) |
Discharge mode |
Heating |
|
||||
Full volume |
Feeding amount |
Paddle fast / slow paddle |
Optional parameters |
Optional parameters |
||||||
NHZ-5 |
5 |
3 |
2.2-4 |
75/50 |
Manual / Hydraulic tilting |
Running Hot oil |
Electrical heating |
Pressure Steam |
||
NHZ-20 |
20 |
12 |
3-5.5 |
63/42 |
||||||
NHZ-50 |
50 |
30 |
4-7.5 |
63/42 |
||||||
NHZ-100 |
100 |
60 |
5.5-7.5 |
43/29 |
||||||
NHZ-200 |
200 |
120 |
7.5-15 |
43/29 |
Hydraulic tilting |
The bottom pumping |
Screw extruding |
|||
NHZ-300 |
300 |
180 |
11-18.5 |
43/29 |
||||||
NHZ-500 |
500 |
300 |
18.5-30 |
43/29 |
||||||
NHZ-1000 |
1000 |
600 |
22-55 |
32/22 |
||||||
NHZ-1500 |
1500 |
900 |
30-90 |
32/22 |
||||||
NHZ-2000 |
2000 |
1200 |
45-110 |
32/22 |
||||||
NHZ-3000 |
3000 |
1800 |
55-130 |
33/22 |
||||||
|
Remarks: 1.Temperature range: 0-300°, 2. Pressure range:-0.1-0.6MPa, 3. Inverter for frequency control if necessary. | ||||||||||
carbon steel kneading machine

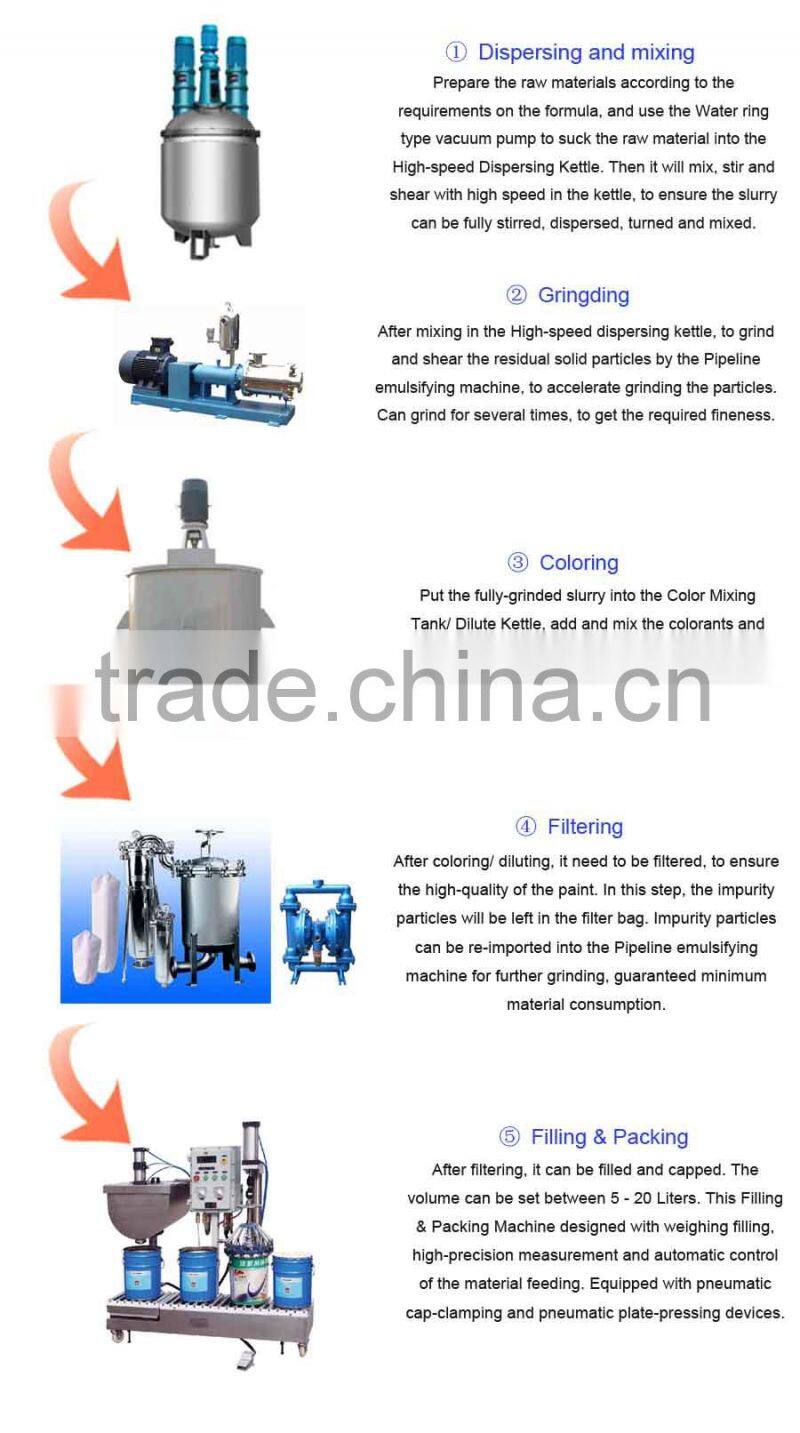

5.OUr production line
carbon steel kneading machine
6. Packing and Shipping
l Standard Export Packing
l FOB (usually), CIF, CFR
carbon steel kneading machine
7. Warranty and after-sale services
- 18 months' free of charge warranty for all of our machines except of the pipes, valves, pumps etc.
- Customer request for product modification or new product development are invited.
- 24 hours technical support by Email, Skype, Mobile-phone
- Engineers are available to overseas for technical support or producing guidance.
- Original manufacturers' price for quick-wear parts of our machines.
carbon steel kneading machine

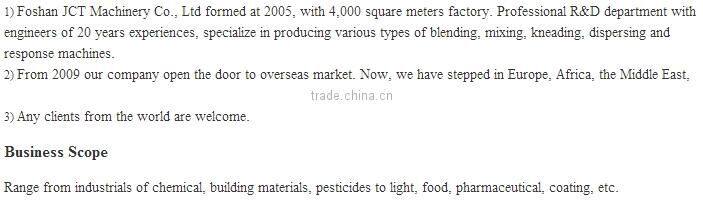

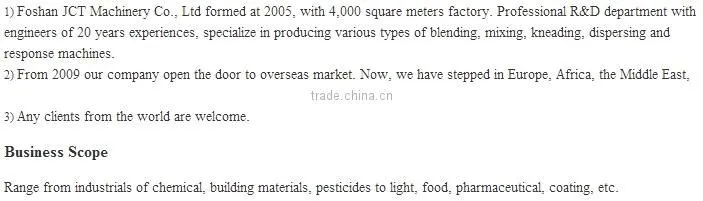

8. About Us
Our Website: http://gdjct.en.china.cn
carbon steel kneading machine
9. Office and Clients
carbon steel kneading machine
10. Certificate
carbon steel kneading machine

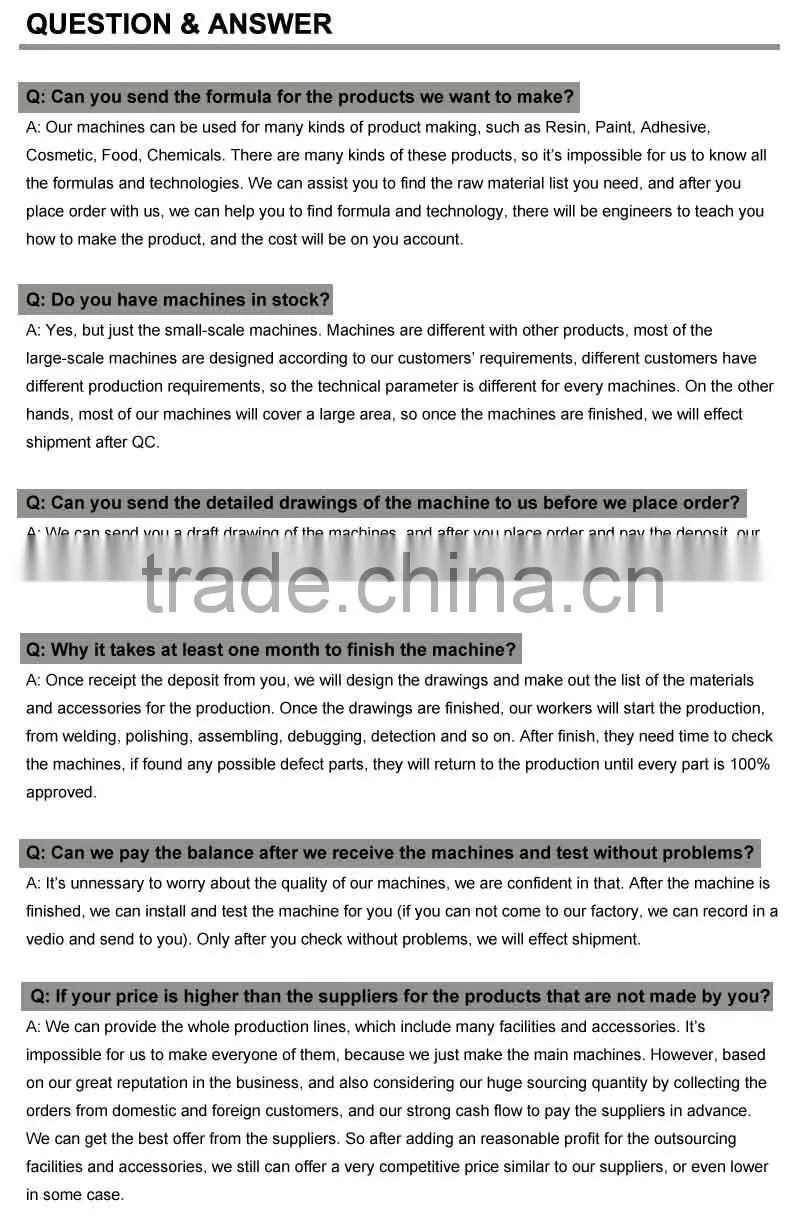

11. FAQ
carbon steel kneading machine
12. Contact information
