YAW-300C type Computer control Automatic Cement compressive and flexural testing machine
It is mainly used for cement mortar compressive flexural strength test body for testing. In full compliance with GB / T17671-1999 Method of testing cements--Determination of strength.Hydraulically applied test force, the entire testing process is completed by a computer program control.Hydraulically loaded test space duplex, with one machine, saving space and easy operation.The whole machine is made up of the host (including hydraulic source) and computer measurement and control system.
The function of this machine and YAW-300 type Fully automatic computer control cement pressure testing machine are the same, please see page on introduction.
Technical parameters | |||
The biggest test force,KN |
300/10 |
Column spacing(compressive and flexural),mm |
250/ 180 |
Test force measurement range |
2%-100% |
Piston stroke,mm,mm |
80 |
relative error value |
≤±1% |
The piston diameter,mm |
Ø140/ Ø50 |
Loading speed, KN/S |
2.4/0.05 |
The highest pressure system,mpa |
25 |
Speed control precision |
1% (set value) |
The oil pump motor power,kw |
1.5 |
Bearing plate size(compressive and flexural),mm |
Ø155/ Ø100 |
The host dimension,mm |
820*450*1300 |
The distance between the clamp |
170/200 |
Net weight |
About600 |

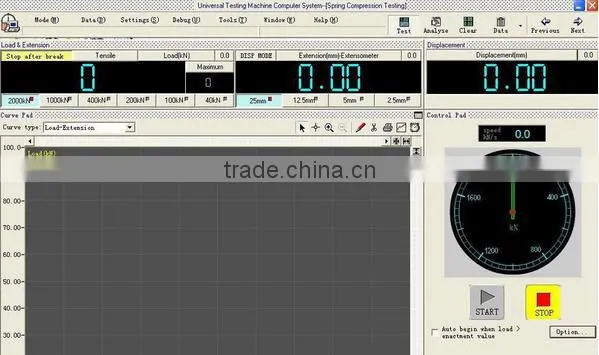

- Software
- OFFICE
-
PACKAGE AND STORAGE
1.Are you a trading one or a factory?
Factory + trade (integration), 21 years focusing on test instruments field,6 years exporting experience.
2.After an order is placed, when to deliver?
Generally about 25 days, If we have inventory, we can arrange shipment within 3 days.
Please be aware that our production lead times depend on specific items and item quantities.
3.What about the warranty with after - sales services?
12 months warranty. Besides,we can help you to repair your problem controller freely,even it's not from our factory. What you need to do is to send us the controller.
After the warranty, the professional after-sale service team will provide perfect technical support,and help customer solve problems encountered while using our product, handles guest problems and complaints in
a professional and timely.
4.What about the services and product' quality?
Each instruments must be carried out 100% quality examination and test when shipping and delivery goods.
Product use training, each of our product provide video training to show you how to install & operate.
Main clients has SGS, Bureau Veritas and Intertek. our products are widely recognized and trusted by users.
All the products meet with: ISO, ASTM, AATCC, BS, EN, DIN, JIS and other requireable standards.
