WEW-B Series Microcomputer Control Ring Stiffness Testing Machine

Name: WEW-B Series Microcomputer Control Ring Stiffness Testing Machine
Brand: ZIWEI
SKU: 118841245
Availability: InStock

US$ 10,000 - 20,000 MOQ: 1 Unit

Key Specifications

Place of Origin:

Liaoning, China

Brand Name:

ZIWEI

Model Number:

WEW-B

Shenyang Ziwei Electromechanical Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

DALIAN

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Liaoning, China

Brand Name ZIWEI

Model Number WEW-B

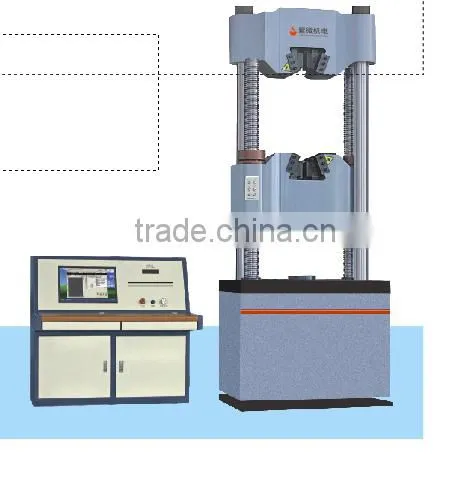

WEW-B series microcomputer control electronic universal testing machine

Host has the fuel tank mounted, four-column, two-space frame structure, tensile test space by a fixed beam and fixed beam formed in the upper frame, and the table constituted by the moving beam compression, bending test space in the lower frame.The size of the test space through the gear chain drive gear adjustment screw moving beam down to achieve. Machine base is equipped with a piston stopper.Test space thread through reducer, chain drive to adjust the size of the moving beam lifting. Piston spacing device mounted on the frame
In cases of different loading rate, tensile, compression, bending, and other precision test
It has the test force, displacement and deformation of three measurement channels as well as the realization of the corresponding test force, stress, strain, deformation, displacement and other parameters of point by point measurement, loading rate by rotating the oil valve handle control at will.
Automatically collecting, processing, display test data, automatically measuring various characteristic points of the tested materials; including Fm, Rm, E, ReH, ReL, Rp0.2, Rt0.5, A, Z, etc. (Note A Elongation rate and Z necking-down rate input type)

Technical parameters
specifications	WEW-100B		WEW-300B		WEW-600B	WEW-1000B	WEW-2000B
	WAW-100B		WAW-300B		WAW-600B	WAW-1000B	WAW-2000B
The biggest test force,KN	100		300		600	1000	2000
Precision grade value	1/0.5
Test force measurement range	2-100%/1-100%
Test force relative error value	≤±1%/≤±0.5%
WAW series test force resolution	1/300000code,UP TO 1/500000code,Don't step all the way, and the entire resolution remains the same
The deformation measurement range	0.2-100%
Deformation relative error value	≤±0.5%FS
The deformation measurement resolution,mm	0.001
Displacement measuring relative error	≤±0.5%FS
Displacement measurement resolution,mm	0.01
WAW series Speed control precision	≤1% (set value)
Tensile /compression test space,mm	500				600		800
Positive column spacing,mm	410				550	580	800
Piston stroke,mm	150			200			250
Circular specimen clamping range,mm	Ø6-22			Ø10-32	Ø13-40	Ø20-60	Ø20-80
Flat specimen clamping range,mm	0-15					0-40	10-70
Upper and lower pressure plate and spherical pressure plate size,mm	Ø120				Ø150	Ø220
Two fulcrum bending spacing,mm	350		350		400	450	550
The total power	2				2.5		3
The host dimension,mm	7235131732	7235131732			8806802130	9707802350	12309003250
The hydraulic source dimension	11709501180
whole machine net weight,kg	About 1400		About 1400		About 2700	About 4100	About 7000
