Specifications
1.plastic injection molding machine2.LCD display
3.PLC control
4.energy saving:30%-50%
5.ISO9000

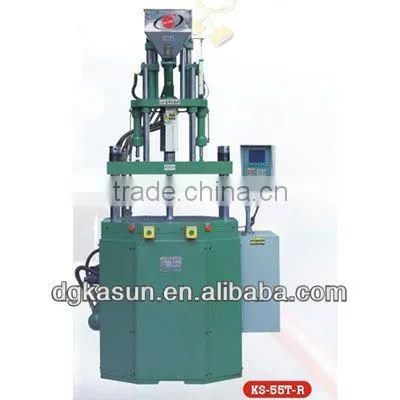

KS-55T-R injection moulding machine
Disk Unit
Oil pressure spares:
Oil motor--------------------------------------Intermot Hydraulic Pressure Ltd.,Italy
Metering pumps dosing-----------------Hai Teke Hydraulic Co.,Ltd. Taiwan
Electromagnetic selector valve------Seven Sea Hydraulic Co,.Ltd. Japan
Semi-closure valve control------------Germany Dr.Rexroth Inc.
Hydraulic valve-----------------------------Hai Teke Hydraulic Co.,Ltd. Taiwan
Electric spares:
Temperature sensing wire--------------Arico (TW) Ltd.
Solid State Relay(SSR)-------------------Taihua (TW) Company
Electronic ruler-------------------------------Mrian (SW) Ltd.
Press stopper---------------------------------AP (TW) Company
Others:
Electronic motor-----------------------------Global Electric Machinery Ltd.
Sealing-------------------------------------------Japan NOK Joint-Stock-Cooperation
Feed pipe group------------------------------Taiwan General Machinery Company
Oil pipe-------------------------------------------Italy ALFA Company
Oil cylinder-------------------------------------Taiwan Jiangjun Machinery Company
| Model | Unit | KS-55T-R |
| Screw Diameter | mm | 30 | 32 | 36 |
| Injection Pressure | Kg/cm² | 1742 | 1331 | 1210 |
| Theoretical Shot Volume | cm³ | 113 | 129 | 163 |
| (ps) Max.shot Weight(ps) | G/oz | 130 | 148 | 187 |
| Injection Rate | cm³/sec | 104 | 118 | 135 |
| Number of Temperature Control | 4 | |
| Clamping Force | Tons | 55 |
| Opening Force | Tons | 9.2 |
| Platen Size | mm | 300*250 |
| Distance Between Tie Bare | mm | 350*970 |
| Min.Mold Height | mm | 180 |
| Oprening Stroke | mm | 215 |
| Ejector Force | Tons | 1.2 |
| Ejector Stroke | mm | 120 |
| Max.Hydaulic Pressure | Kg/cm³ | 140 |
| Pump Output | Liters/min | 69 |
| Pump Motor Power | kw/HP | 11/15 |
| Barrel Heating Power | kw | 6.5 |
| Machine Weight | Tons | 4.9 |
| Machine Dimensions(L×W×H) | m | 2.1*1.9*3.0 |
| Shipping Measurements(L×W×H) | m | 2.3*2.1*3.2 |
| Slide stroke | mm | 2/3 |
| Diameter of disk | mm | 980 |
| Station clearance | mm | 0.05 |
