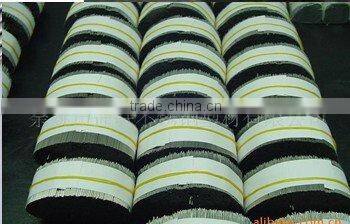

stainless steel capillary pipe
Characteriatics:
1)high precision
2)short-diameter pipes
3)smooth surface...
Our Strength
Since1992,nearly 10 years of experiment and experience,we explored and summarized the way to control the poptimum temperature at the process of manufacture,which guarantee our products are good-looking,smooth both inside and outside;decelerate the aging problem,and the roughness is controlled not more than 5um
Technical information
Grade:TP202,TP304,TP304L,TP310/S,TP316/316L,ETC
O.D:0.33-5.0mm
W.T:0.08-0.2mm
Length:As for your requirement
Standard:ASTM,GB,AISI,JIS,DIN,etc.
Delivery Time:10-50 days,according to customer's quantity
Delivery Condition:Pickled,polished,bright annealed,electrytic polished
package:Plastic bag for each bundle or as for your requirement.
Payment:100% irrevocable L/C at sight,or T/T in advance
High precison short-diametre pipes
Technical standard:
1) GB3090-2000 Stainless steel
2)short diametre steel pipe
Applications
1,Scientiffc research
2.Medical Device Industry injection needles,needle tubes
3.chemical industry
4.Thermal conductivity temperature control device,the sensor tube
5,Instrument tube,mimiature antenna tube
Should any of these itrems be of interes to you,or what you need is not on the list,please fell free to contact us.We will do
our best to offer you high quality paoducts,competitive price and excellengt service as per you requirement.
my company stainless steek tube are wildly used for shower rack storage cart shower basket baggageshelf shower valet
|
Stainless steel pipe |
φ6.5*0.3-0.5 φ8*0.3-0.75 φ9*0.3 φ9.2*0.3 φ9.5*0.3-0.8 φ10*0.3-0.6 φ11.8*0.3-0.75 φ12.7*0.3-0.75 φ14.2*0.3-0.5 φ16*0.3-0.5 φ17.8*0.3-0.5φ18*0.3-0.8 φ19*0.3-0.8 φ22*0.3-0.8 φ24.8*0.3-0.5 φ25.4*0.35-1φ27.5*0.3-0.45 φ28*0.4-1 φ28.6*0.5-1.2 φ30*0.3-1.2 φ32*0.3-1.5φ34.5*0.3-1.2 φ35*0.6 φ38*0.5-1.5 φ42*0.4-1.2 φ48*0.4-1 φ50.8*0.5-1φ63.5*0.5-1 φ76*0.5-1.2 φ89*0.8 φ101*1.2 φ114 φ129 φ159 φ269 |
|
stainless steel precision tubes |
φ3.5*0.3 φ3.5*0.5 φ4*0.3 φ4.2*0.3 φ4.2*0.4 φ4.5*0.5 φ4.8*0.3 φ4.8*0.4 φ5*0.5 φ5*0.3 φ5.5*0.3 φ5.5*0.5 φ5.8*0.25 φ6*0.3 φ6.5*0.3 φ6.5*0.5 φ6*0.8 φ6.7*0.8 φ7*0.3 φ7.2*0.3 φ7.5*0.3 φ7.8*0.3 φ7*0.5 φ7.6*0.3 φ7.9*0.3 φ8*0.3 φ8*0.4 φ8*0.5 φ8.5*0.3 φ8.83*0.3 φ9*0.3 φ9*0.5 φ9*0.25 φ9.15*0.25 φ7*0.25 φ9.5*0.5 φ9.8*0.8 φ10*0.3 φ10*0.5 φ10*1 φ11*0.5 φ12*0.4 φ12*0.3 φ12*0.5 φ12*0.7 φ13*0.4 φ11.3*0.3 φ10.5*0.3 φ15*0.4 φ15.2*0.7 φ16*0.4 |
|
stainless steel capillary tube |
φ0.5*0.1 φ0.6*0.1 φ0.7*0.2 φ0.8*0.15 φ1*0.2 φ1.1*0.15 φ1.2*0.1 φ1.3*0.15 φ1.45*0.1 φ1.5*0.15 φ1.65*0.1 φ1.8*0.1 φ1.96*0.1 φ2*0.15 φ2*0.1 φ2.2*0.1 φ2.52*0.13 φ2.5*0.15 φ2.6*0.15 φ2.8*0.15 φ2.97*0.15 φ3*0.135 φ3.1*0.15 φ3.2*0.15 φ3*0.18 φ3.5*0.3 φ2*0.5φ 3*0.5 φ3.5*0.18 φ3.5*0.15 φ4*0.18 φ4*0.17 φ4.2*0.44 φ5*0.2 |
|
seamless steel tube |
φ4.8*1 φ5*1 φ6*1 φ7*1 φ7*0.8 φ8*1 φ8*0.8 φ8*0.5 φ9*1 φ10*1 φ10*0.8 φ12*1 φ12*0.8 φ12*3.5 φ45*1.5 φ20*2 φ18*1 φ12*2 |
|
Stainless Steel square tubes |
φ6.5*6.5*0.3 φ10*10*0.3 φ12*12*0.3 φ20*20*0.3 φ25*25*0.4 φ75*45*0.3-1.2 φ38*25*0.3-0.5 |
