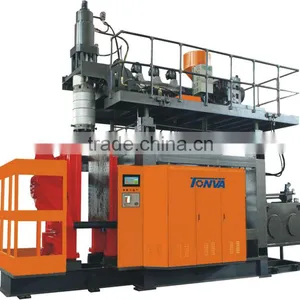

Help CenterPlastic Blow Molding Machine, Accumulator Type
Related Products
-
Extrusion Blow Molding Machine High SpeedUS$ 47,000 - 58,000MOQ: 1 Set -
High Speed 4 Cavities Extrusion1000ml Bottle Blow Machine Quality ChoiceUS$ 46,000 - 46,000MOQ: 1 Set
-
New Design Blow Mould Bottle MachineUS$ 19,800 - 50,000MOQ: 1 Set
-
Plastic Balls Blow Moulding MachineUS$ 19,800 - 50,000MOQ: 1 Set
-
5 Gallon Bottle MoldUS$ 400 - 5,000MOQ: 1 Piece
Specifications
1. 20 years of experience in blow molding machine2.Deflashing system
3.Famous brand component
4.TWO YEAR warranty
Products display:
Main Characteristic:
1.. Power supply: 380VAC, 50Hz (depending on client's country).
2.. This series is applicable for PP,PE,PS raw material, and volume between 20L-60L, it is widely used in plastic barrel, tool boxes, hollow desk board, chairs, auto parts and other large and medium-sized plastic hollow products.
Adopts two pull-rod type closing-mold device by rack and pinion system. The large setting platen is suitable for various sizes of moulds.
Adopts accumulator die head, with high quality nitrogen treatment and hardness of surface, resulting smooth flow and quick parison ejection.
Based on products, equip with 30 points or 100 points standard parison controller, to control the thickness of parison precisely.
Basic working theory:
This kind of blow molding machine is using PLC control system, operating manual in English, pneumatic operated, clamping by hydraulic cylinders actuated by pneumatic primary cylinders. Moreover, it equips with deflashing system, resulting in saving time and manual cost for clients.
Our machine adopts famous brand in most component parts, almost from GERMANY, JAPAN, FRANCE, TAIWAN
Technical parameters:
Category |
Item |
Unit |
TVA-30L |
|
Extruder Unit
|
Screw diameter |
mm |
80 |
Screw L/D ratio |
L/D |
25:1 |
|
Plasticising capacity |
kg/hr |
100 |
|
| number of heating zone | kw |
12.5 |
|
|
extruder heating power
|
zone |
5 |
|
| extruder driving power | Kw |
22 |
|
|
Die head
|
number of heating zone | zone |
3 |
| power of die heating | kw |
6 |
|
|
max die-pin diameter
|
mm |
350 |
|
| accumulator capacity | ml |
5000 |
|
|
specifications
|
machine dimension | L |
50 |
| machine dimension | M |
5*3.1*3.2 |
|
| total weight | tom |
7 |
|
|
Clamping Unit
|
clamping force | kn |
300 |
| platen opening stroke | mm |
350-1050 |
|
| max mould size | mm |
700*1000 |
|
| mould thickness | mm |
360-500 |
|
|
Power
|
max drive | kw |
11 |
| total power | kw |
63 |
|
| fan power for screw | kw |
0.72 |
|
| air pressure | mpa |
0.7 |
|
| air consumption |
m3/min |
0.9 |
|
| average energy consumption | kw |
28 |
After-sale service:
average1. Instruction for Installation and Debugging
Before delivery, TONVA takes responsible for debugging of machine, in order to make sure the provided machine could be safely and smoothly put into operation.
TONVA also take responsibility to have debugging overseas, and Client abroad please sends invitation forward of time to engineer of TONVA, provides the engineer with round-trip tickets, accommodation, vehicle and $40 per day salary.
User Training
Before delivery, TONVA will take responsibility to indoctrinate technical training to the users so that they could understand the machine features and could operate the machine by themselves.
Warranty Period
The warranty period for TONVA machine is one year with a life long maintenance. If the user requires special quality guarantee, other stipulated warranty period may be made after mutual agreement.
