TONVA TVA-20L Model 5 gallon blow molding machine:
Products samples:

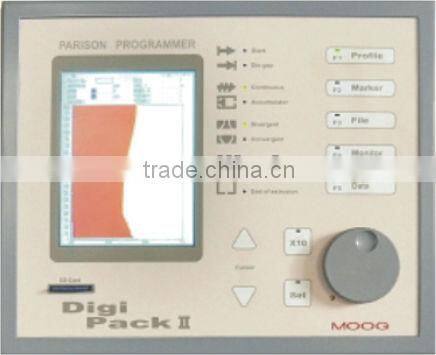

Parison Controller:

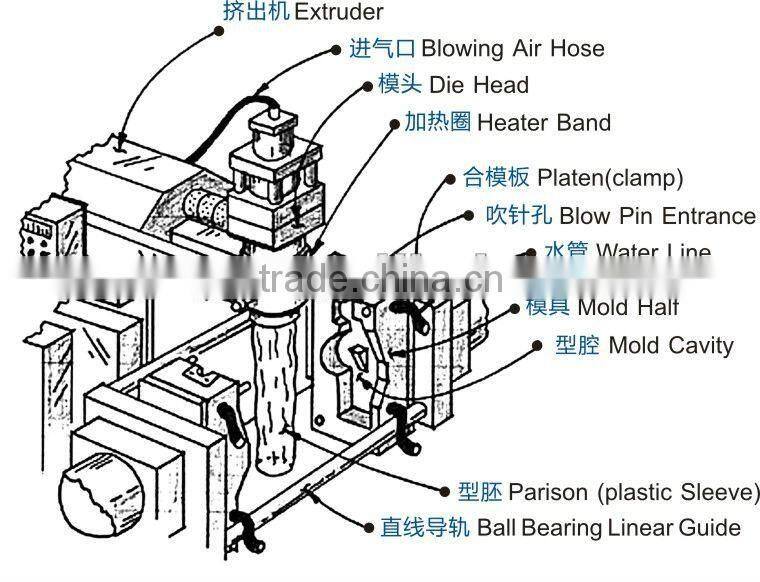

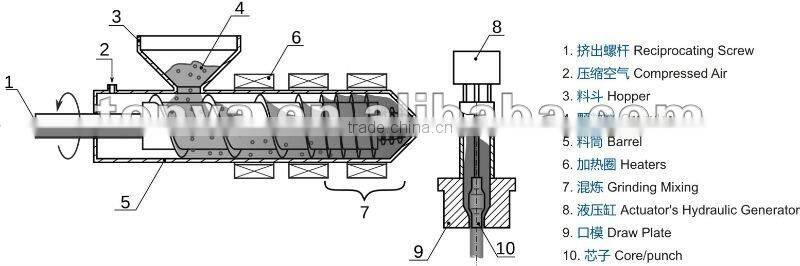

Blowing technology:
Basic Characteristic:
1. Single station, Single accumulator type Die Head, 70mm screw, 40kw motor, PE / PP/ ABS etc.
2. Max capacity: 20L (single cavity)
3. Power supply: 380VAC, 50Hz (depending on client’s requirement)
4.Parison contraller:MOOG 100 points
Brand of component parts:

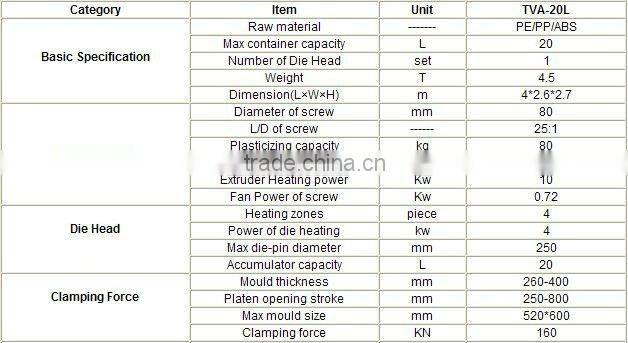

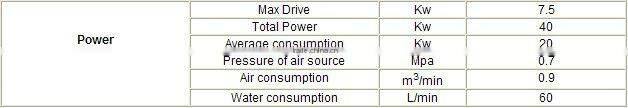

Technical parameters:

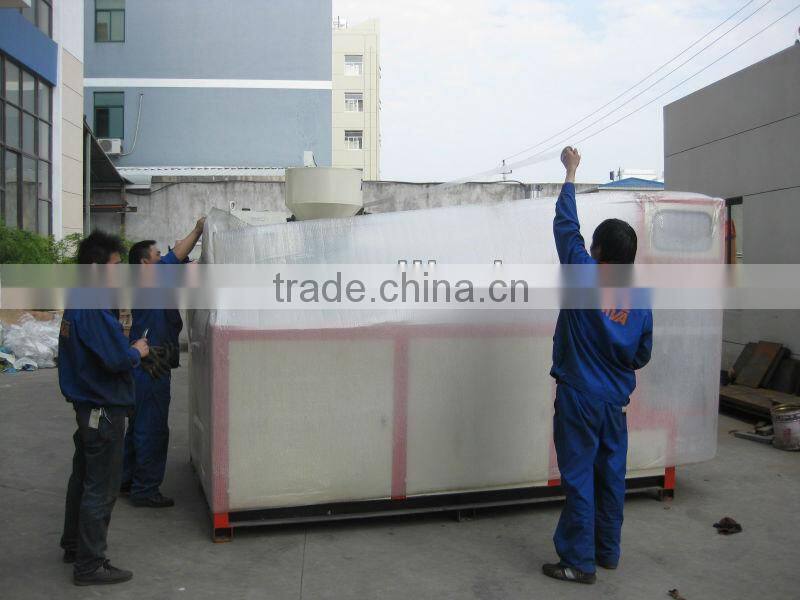

Packing for machine:
Packing for mould:
Tonva blow molding machine after-sale service:
1. Instruction for Installation and Debugging
Before delivery, TONVA takes responsible for debugging of machine, in order to make sure the provided machine could be safely and smoothly put into operation.
TONVA also take responsibility to have debugging overseas, and Client abroad please sends invitation forward of time to engineer of TONVA, provides the engineer with round-trip tickets, accommodation, vehicle and $40 per day salary.
2. User Training
Before delivery, TONVA will take responsibility to indoctrinate technical training to the users so that they could understand the machine features and could operate the machine by themselves.
3. Warranty Period
The warranty period for TONVA machine is one year with a life long maintenance. If the user requires special quality guarantee, other stipulated warranty period may be made after mutual agreement.
Note:Information listed above are for reference only, the production line can be designed according to customer's requirements
