110 Ton Plastic Preform Injection Machine

Specifications

22-year manufacturer of plastic preform injection machine
Famous brand component parts
CE;ISO;SGS
1-year warranty
Customized









Sample Display:

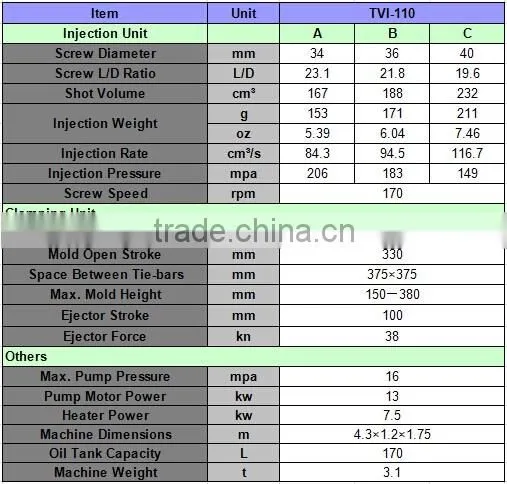

Technical Specification:



Mold Locking Unit:

• The burring, double -toogle three-link-rod five-hinged has the features of smooth motion, large moving die stroke;
• Fine riddty, four-stage mode lock pressure, speed, different quick mode lock device have multiple means of ejection functions;
• Automatic centralized lubrication system;
• Gear regulating the mould driven by oil motor;
• Electrical & mechanical satety protection device.

Injection Unit:

• Dual -cylinder parallet injection;
• Low speed high torque oil motor directly drives screws to complete the pre-injection, with anti-dripping device;
• Multiple-stage control for pressure, speed, position to inject, keep pressure, charge material.

Control Unit:

• It ultilizes the plastic jetting-moulding machine special-purpose computer, CPU work divison control treatment, the ejection;
• Clamp, injection actions can choose linear displacement sensor for its control;
• It also real-timely monitors various actions and gives automatic warning for its defects;
• Multiple-unit plastic moulding data memory system.

Hydraulic Unit:

• It employs the imported hudrautic elements and components, uses the propotional pressure, propotional flow means, offers live load dynamic force;
• Double injecting move jar vertical balance on both sides of injection tube, insured that spray nozzle can not be skew;
• The sealing is good and do not leak the glue;
• Low noise & rapid response oil pump system;
• Adopting the cooling water flow distributor, controlling the cooling temperature easily.





Certification:





Our Lovely Customers:
