IEC 60695 fire retardant V0 pc resin, Pass 125 Ball pressure test and 850 Glow wire test polycarbonate

Company Slogan:  Brand; Innovation; Green; Service.

Company Commitment: Top quality; Constant innovation; Demand-oriented; Best services.

IEC 60695 fire retardant V0 pc resin, Pass 125 Ball pressure test and 850 Glow wire test polycarbonate

Properties:

(1) flammability rating: UL94 V0 (thickness 1.0 mm);
(2) insulation performance: can withstand 1250 to 7000V AC 1min test;
(3) High temperature resistant 130 °C, through 125 °C ball pressure test, and the indentation is not greater than 2 mm;
(4) Appearance: shading (opaque) white porcelain;
(5) mechanical properties: high impact resistance, good toughness, and not easily deformed;
(6) security and reliability: low halogen or halogen-free flame retardant, can provide SGS test report (ROSH, Reach);

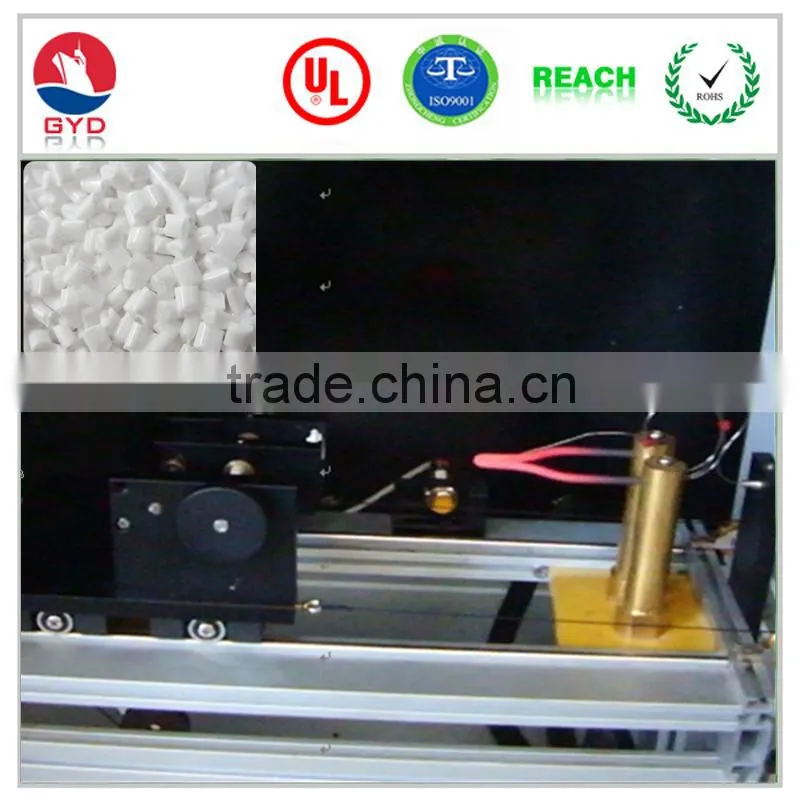

(7) Glow wire ignitability 825+25 ℃  (GWIT:850℃)

Applications:

Regulators cover, UPS casing, surge protectors shell, capacitor housing.

Customized order:

Fire retardant: UL94 V0-5VA with the wall thickness is 1.0-3.2mm, our default thickness is 1.0mm.

Ultraviolet light resistant: F1 and F2,

Glow wire ignitability: 750  ℃ - 960   ℃

High temperature resistant: can be 180 degree.

Color: Pure white and Milk white in Default.

Others: According to customer's request.

	Guangzhou Gangyangda Plastic Co.,Ltd. Website:   Alibaba Website:  http://gangyangda.cn.china.cn Address: No. 6, No. 7 Line, Caohe Industry Zone, Panyu Dist., Guangzhou TEL: +86-020-34612058
PC-B110F-850QY125 property parameter table
Property item		Test condition	Test method	PC-B110F-850QY125	Unit
Physical properties	Specific gravity		ASTM D792	1.21
	Water absorption rate		ASTM D570	0.2	%
	Melt index		ASTM D1238	16	g/10min
Mechanical properties	Tensile strength (yield point)		ASTM D638	54	Mpa
	Tensile rate (rupture point)		ASTM D638	82	%
	Flexural strength		ASTM D790	87	Mpa
	Flexural modulus		ASTM D790	2255	Mpa
	Rockwell hardness		ASTM D785	118	R
	Impact strength (notched)	23℃	ASTM D256	34.6	kg•cm/cm
Thermal properties	Heat deflection temperature	0.45Mpa	ASTM D648	137	℃
	Heat deflection temperature	1.8Mpa	ASTM D648	130	℃
	Vicat softening point		ASTM D1525	150	℃
	UL long-term using temperature with impact		UL746B	120	℃
	Oxygen index		ASTM D2863	28	%
	Ball-pressure test		IEC60695	125±2	℃
	Glow wire ignitability (GWIT)		ASTM D3874	850	℃
	Flame retardant		UL94	V0
Electrical properties	volume resistivity	1MHz	ASTM D257	1016	Ω-cm

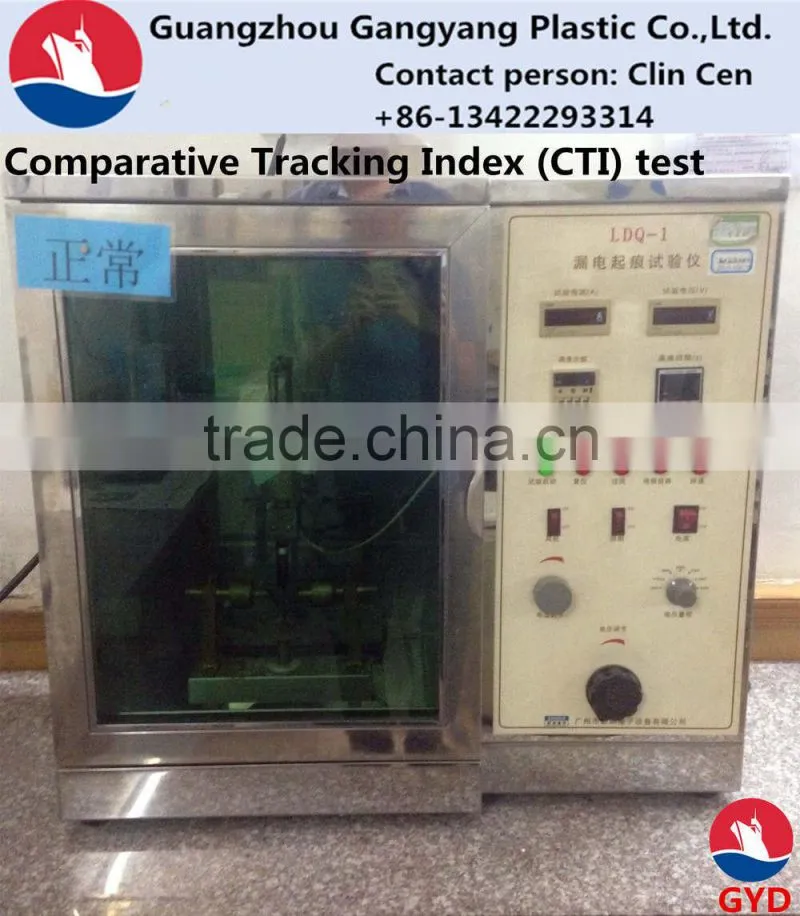

	Comparative Tracking (CTI)		IEC60112	220	V
	Permittivity		ASTM D150	2.96

International certification: IS0-9001, UL, ROHS, REACH.

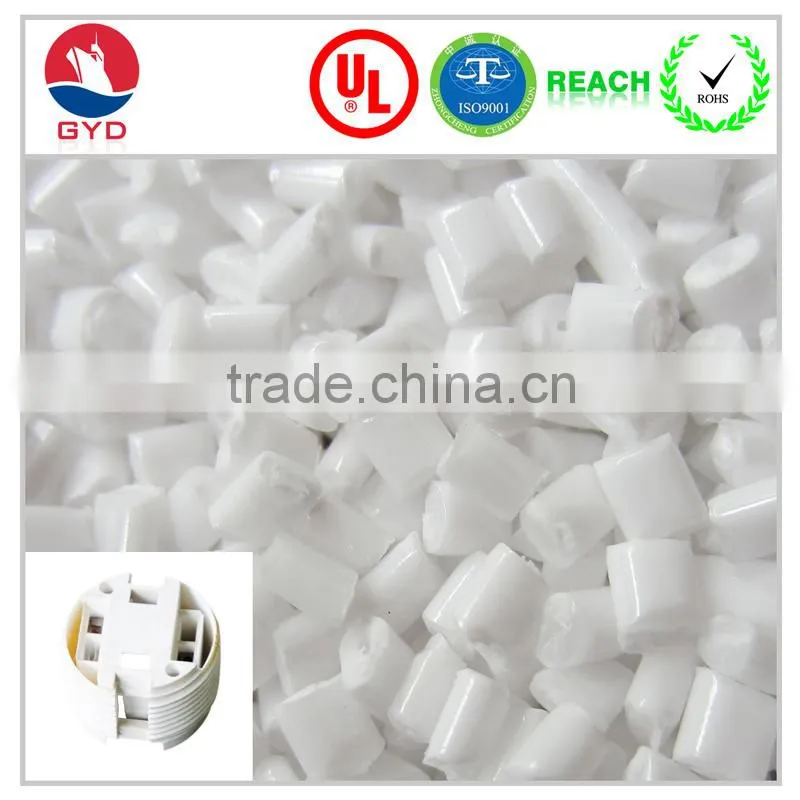

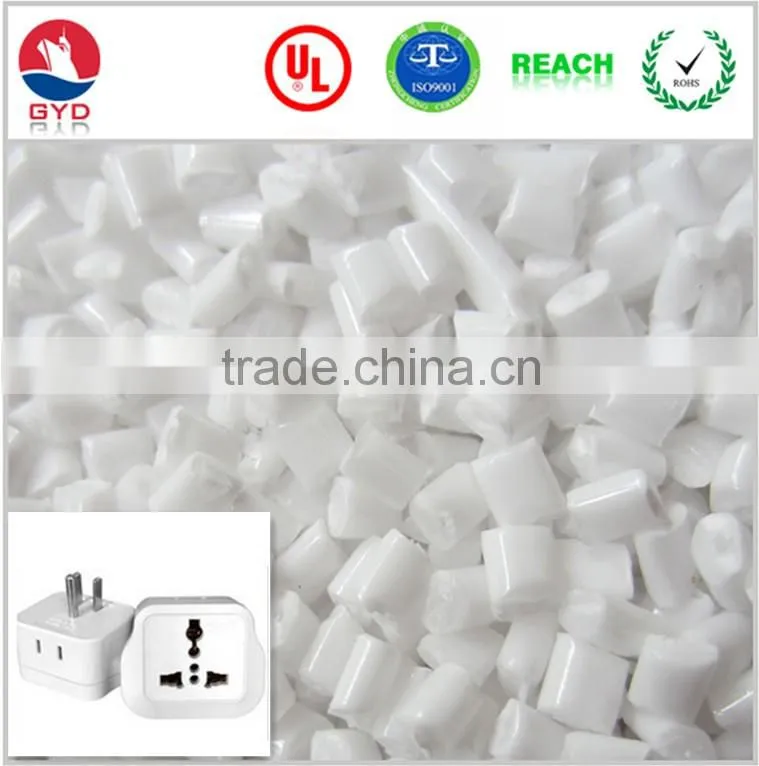

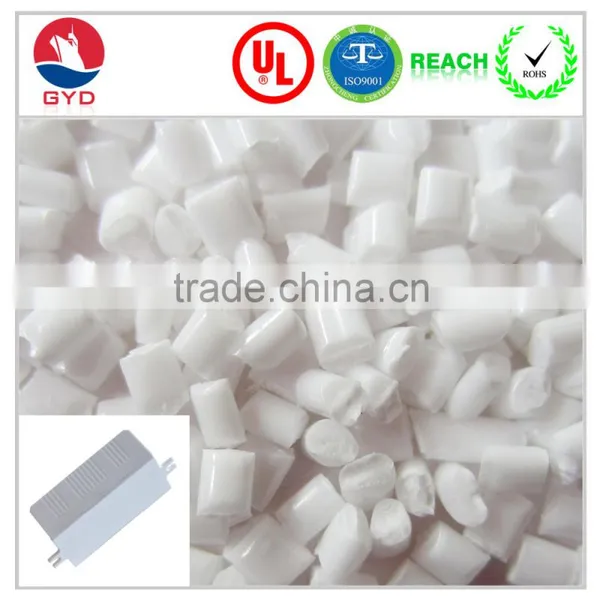

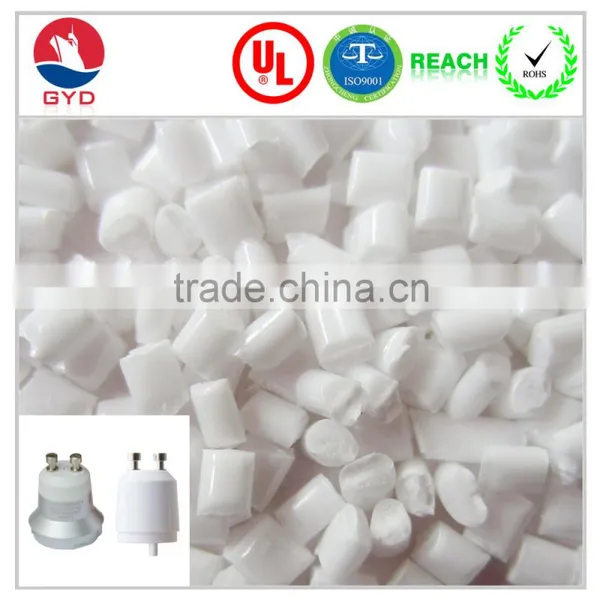

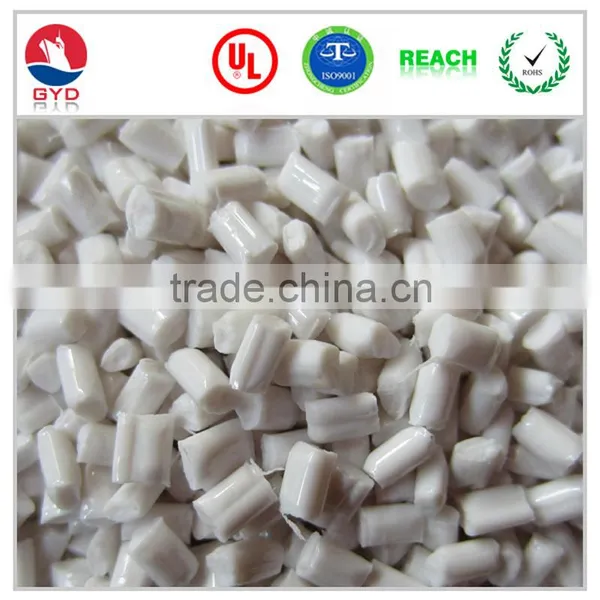

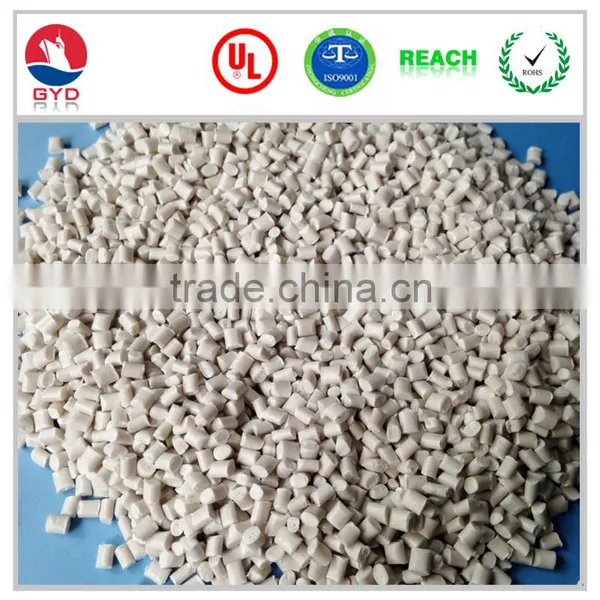

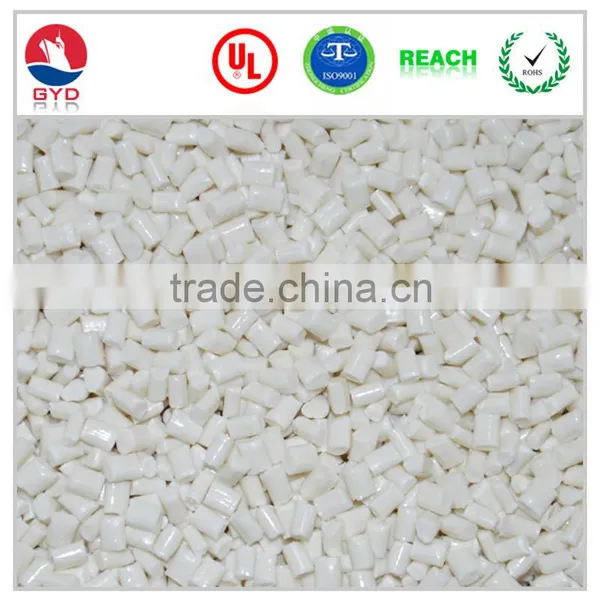

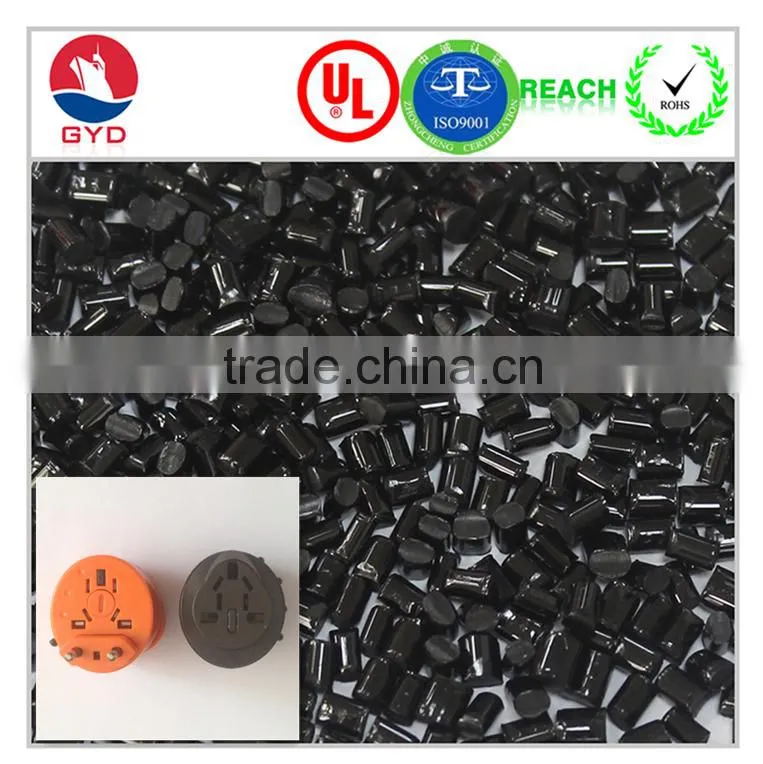

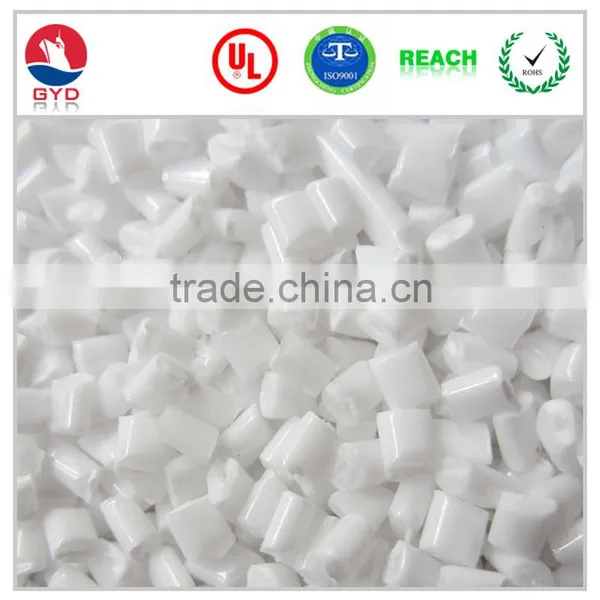

Here are some pictures of our products:

Those are the reason why choose us:
A. Professional engineering plastic raw material manufacturer;
B. Various professional modified processing, can customized according to the customers;
C. Small order accepted;
D. Competitive prices and timely delivery;
E. Quality guaranteed and thoughtful after-sales service and professional technical support ;
F. Accept any quality tests;
G. 5KG of free sample can be available, more details can negotiate.
