IEC 60695 PC plastic resin, passed Ball pressure and Glow wire test Polycarbonate plastic raw material
Properties:
(1) flammability rating: UL94 V0 (thickness 1.0 mm);
(2) insulation performance: can withstand 1250 to 7000V AC 1min test;
(3) High temperature resistant 130 °C, through 125 °C ball pressure test, and the indentation is not greater than 2 mm;
(4) Appearance: shading (opaque) white porcelain;
(5) mechanical properties: high impact resistance, good toughness, and not easily deformed;
(6) security and reliability: low halogen or halogen-free flame retardant, can provide SGS test report (ROSH, Reach);
(7) Glow wire ignitability 825+25 ℃ (GWIT:850℃)
Applications:
Regulators cover, UPS casing, surge protectors shell, capacitor housing.
Customized order:
Fire retardant: UL94 V0-5VA with the wall thickness is 1.0-3.2mm, our default thickness is 1.0mm.
Ultraviolet light resistant: F1 and F2,
Glow wire ignitability: 750 ℃ - 960 ℃
High temperature resistant: can be 180 degree.
Color: Pure white and Milk white in Default.
Others: According to customer's request.
| Guangzhou Gangyangda Plastic Co.,Ltd. Website: Alibaba Website: http://gangyangda.cn.china.cn Address: No. 6, No. 7 Line, Caohe Industry Zone, Panyu Dist., Guangzhou TEL: +86-020-34612058 | ||||
| PC-B110F-850QY125 property parameter table | |||||
| Property item | Test condition | Test method | PC-B110F-850QY125 | Unit | |
| Physical properties | Specific gravity | ASTM D792 | 1.21 | ||
| Water absorption rate | ASTM D570 | 0.2 | % | ||
| Melt index | ASTM D1238 | 16 | g/10min | ||
| Mechanical properties | Tensile strength (yield point) | ASTM D638 | 54 | Mpa | |
| Tensile rate (rupture point) | ASTM D638 | 82 | % | ||
| Flexural strength | ASTM D790 | 87 | Mpa | ||
| Flexural modulus | ASTM D790 | 2255 | Mpa | ||
| Rockwell hardness | ASTM D785 | 118 | R | ||
| Impact strength (notched) | 23℃ | ASTM D256 | 34.6 | kg•cm/cm | |
| Thermal properties | Heat deflection temperature | 0.45Mpa | ASTM D648 | 137 | ℃ |
| Heat deflection temperature | 1.8Mpa | ASTM D648 | 130 | ℃ | |
| Vicat softening point | ASTM D1525 | 150 | ℃ | ||
| UL long-term using temperature with impact | UL746B | 120 | ℃ | ||
| Oxygen index | ASTM D2863 | 28 | % | ||
| Ball-pressure test | IEC60695 | 125±2 | ℃ | ||
| Glow wire ignitability (GWIT) | ASTM D3874 | 850 | ℃ | ||
| Flame retardant | UL94 | V0 | |||
| Electrical properties | volume resistivity | 1MHz | ASTM D257 | 1016 | Ω-cm |
| Comparative Tracking (CTI) | IEC60112 | 220 | V | ||
| Permittivity | ASTM D150 | 2.96 | |||
International certification: IS0-9001, UL, ROHS, REACH.

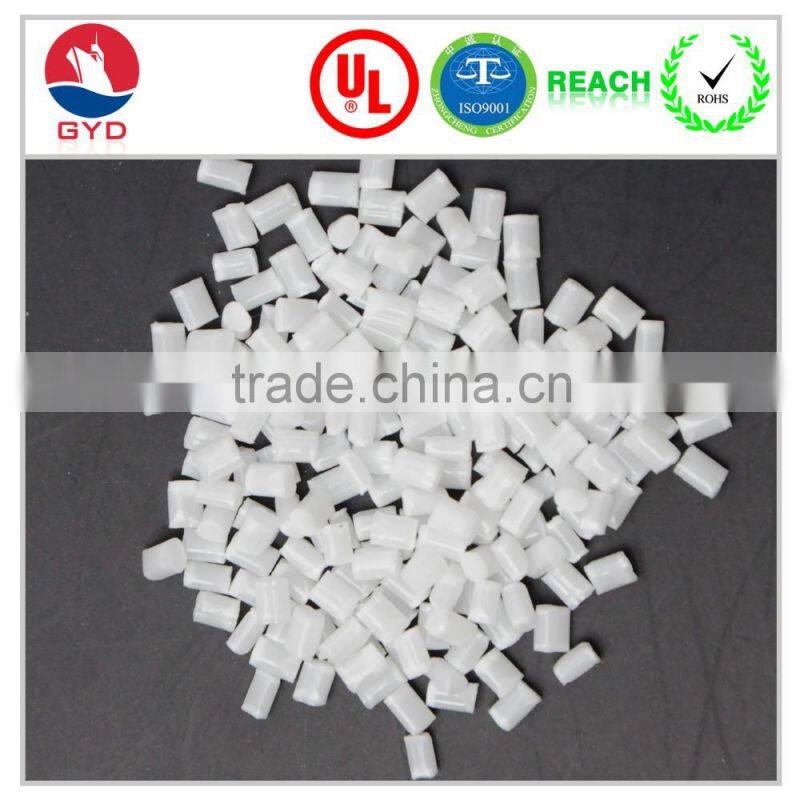

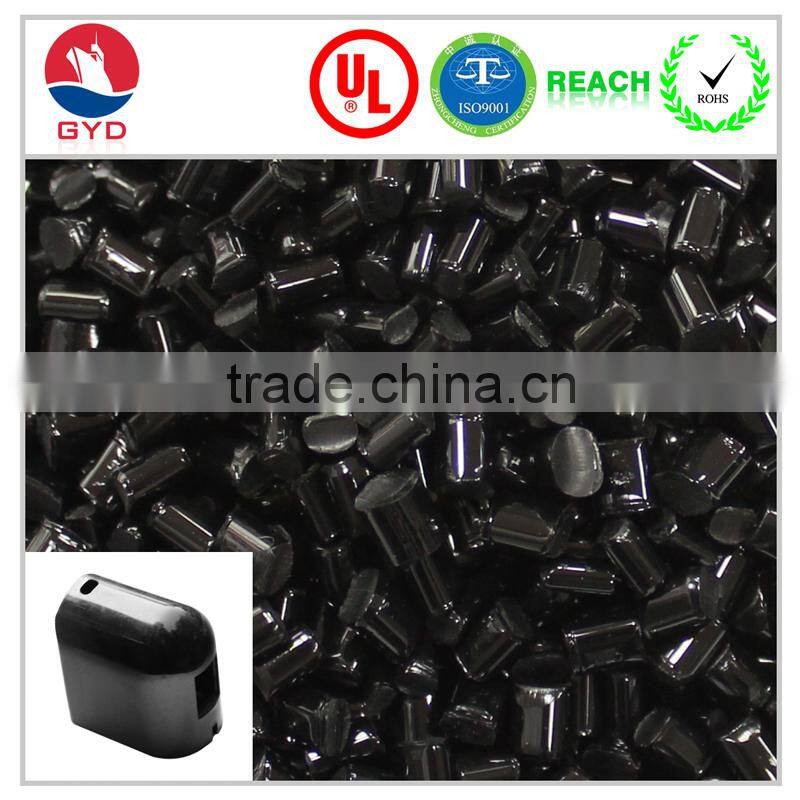

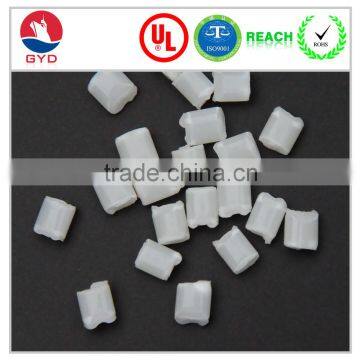

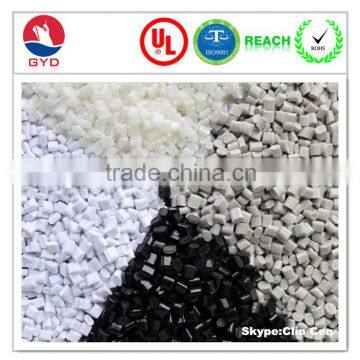

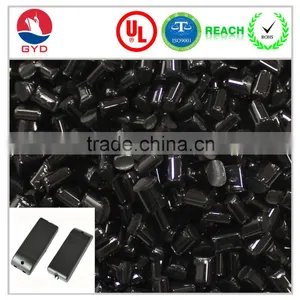

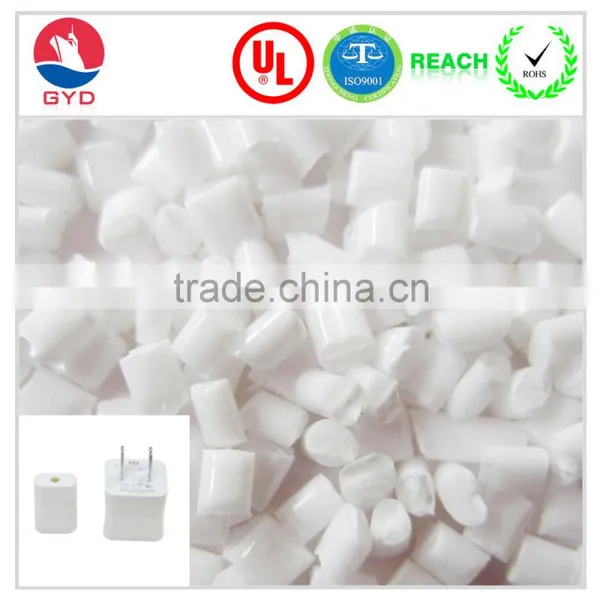

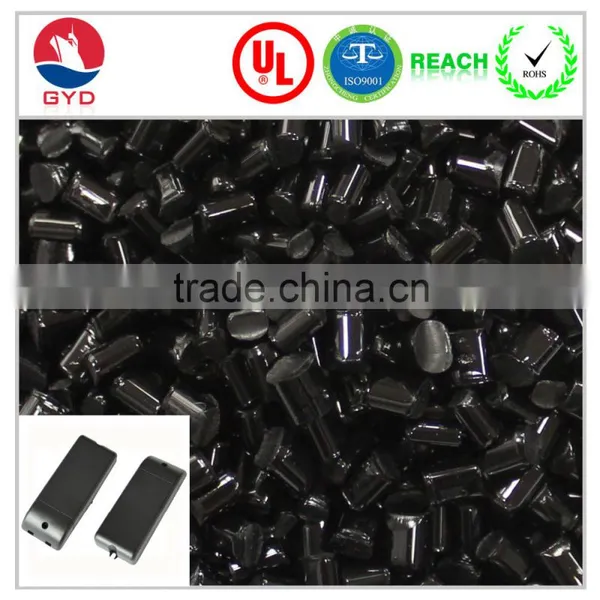

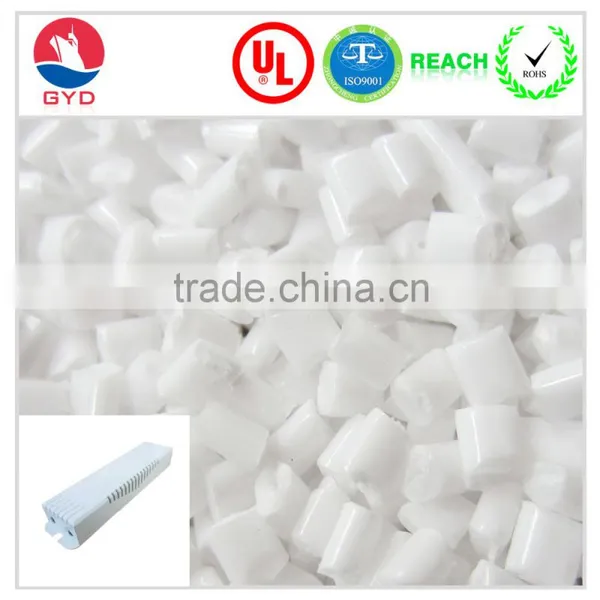

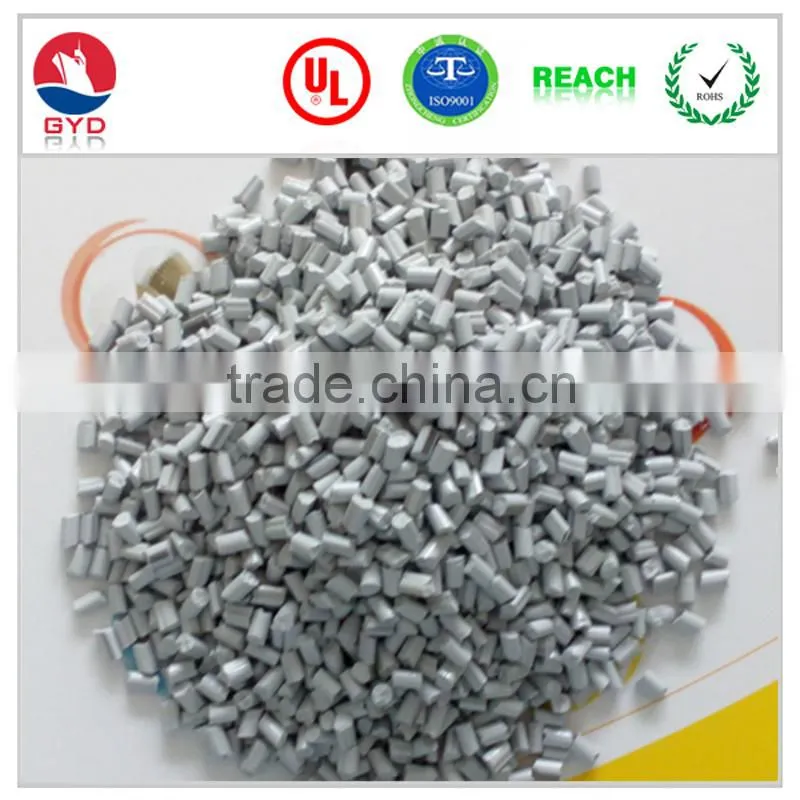

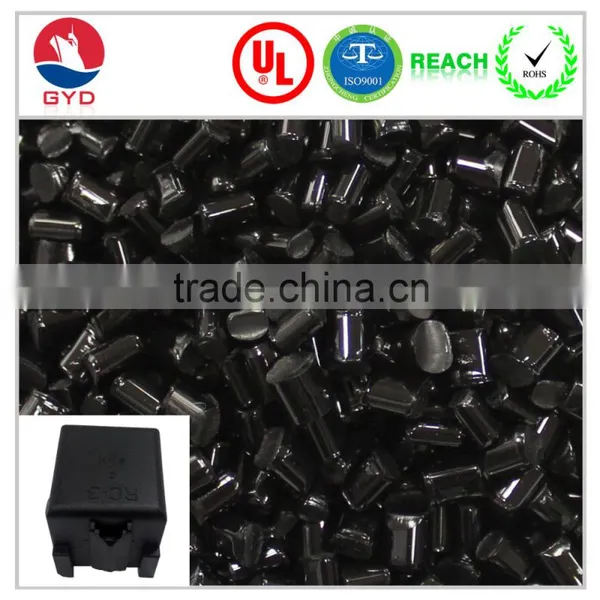

Here are some pictures of our products:
Those are the reason why choose us:
A. Professional engineering plastic raw material manufacturer;
B. Various professional modified processing, can customized according to the customers;
C. Small order accepted;
D. Competitive prices and timely delivery;
E. Quality guaranteed and thoughtful after-sales service and professional technical support ;
F. Accept any quality tests;
G. 5KG of free sample can be available, more details can negotiate.
