ECMT-100 Fully-Automatic Continuous Foaming Machine
Process: All the P.U. chemicals are first mixed together in a mixing chamber & then taken into a metal trough where the initial reaction takes place. The rising foam then passes from the top of the trough on to a variable width fall plate, which then leads the expanding foam block along a metal slat conveyor for further expansion.
Outputs: The machine is delivers a maximum of 350kg per minute.
Metering System: There are seven metering systems in all. All metering system are equipped with world class AC motors, AC variable speed drives, Viking, U.S.A made internal gear pumps (for very low slippage), pressure gauges & Recirculation network to ensure high class quality product.

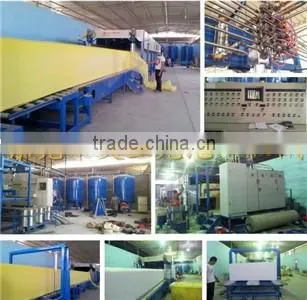

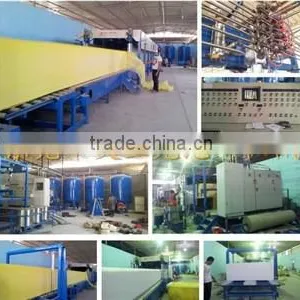

Images :
SPECIFICATION:
Max.Output Capacity: | 200~350kg/min(Continuous Type) |
Mixer Total Power: | 37kw |
Max.Mixing Speed: | 2500~6000r/min |
Foaming Type: | Trough & Sprayer |
Save Formular Q.T.Y.: | 13 Groups. |
Foaming Size: | W2400mm*H1400mm(Width Adjustable) |
Control System: | PLC Digital Touch Screen(Made In TaiWan) Or Electirc Control System. |
PPG Tank: | 5Ton*1Set. |
POP Tank: | 5Ton*1Set. |
TDI Tank: | 4Ton*1Set. |
MC Tank: | 1Ton*1Set. |
Water Tanks: | 150L*1Sets |
T-9+Amine+Color +L580 | 150L*8Sets |
Side Wall Size: | L18m*H1200mm |
Fallplate: | L7m*W0.98~2.4m(Adjustable) |
Foaming Platform: | L2000mm*W3000mm*H700mm |
Conveyor Line: | L18.1m |
Side/Bottom Paper Feed & Rewind System: | 1Sets. |
Walkway: | W500mm*L18m |
Air Valves | Euro Standard |
Chiller(Both Cooling & Heating System): | 1Set*20HP(Made In TaiWan) |
Side Film Lifting System: | 1Set. |
Foaming Density Range: | 8~70kg/Cubicmeter. |
Match With Block Cutter: | 1Set. |
Total Motor Power: | Approx 125kw. |
Machine N.W.: | Approx 35Ton |
Floor Space Required: | L45m*W5m*H4.5m. |
Company Information
The EliteCore Machinery Manufacturing Co.,Ltd is one of the China main professional Manufacturer of Polyurethane Foam Making Machines,Foam Cutting Machines,CNC Contour Cutting Machines and Accessories.As an outstanding supplier of China Polyurethance Machinery Industry,EliteCore offers machinery from standard models to High-tech CNC Machines.Whenever you are looking for quality Foam Machines,EliteCore is truly your only one choice.EliteCore always your reliable partner.
We offer most competitive prices as well as good quality products,which must be passed our overall inspections and tests.We offer best & prompt after-sales services.
Application :
Foam industry ;sponge industry ;furniture industry ;soft factory ;furniture factory.shoes factory .
Packaging & Shipping
Package: Wooden Box & Hard Paper Film Packing
Shipping: by sea & by air &by express(DHL,UPS,EMS,Fedex etc)
Our Services
1. Your inquiry for our products will be replied in 24 hours
2. Well-trained and experienced employers to answer all your questions
3. Protection of your sales area, ideas of design and all your private information.
