Help Center500KW Oil Shale Gas Generator Set
Related Products
-
600KW Oil Shale Gas Generator SetUS$ 120,000 - 160,000MOQ: 1 Unit -
400KW Oil Shale Gas Generator SetUS$ 120,000 - 140,000MOQ: 1 Unit
-
Larger Power for Shale Gas Generator SetUS$ 137,000 - 158,200MOQ: 1 Set
-
500KW Larger Power for Shale Gas Generator SetUS$ 136,500 - 154,300MOQ: 1 Set
-
Larger Power for Shale Gas Generator SetUS$ 137000.00 - 137000.00MOQ: 1 Set
Company Introduction
Shandong Lvhuan Power Equipment Co., Ltd is a comprehensive high-tech company which is engaged in the researching, manufacturing and after-sale service of the new energy-saving generator products.
Our main products are gas generator set, diesel engine and diesel generator set. It forms a series of products, including: Biogas gen-set, Coal mine gen-set, Natural gas gen-set, Biomass gen-set, Coke oven gas gen-set, Gas gen-set, Diesel gen-set and the entire building machine. These products cover almost all the range of power, and their power performance, economical efficiency and reliability are all in the advanced level of this field.
We have attained ISO9001, ISO14001 and CE certifications, and carries them out in every production procedure. With the strong capacity of researching and designing, we can not only provide you with quality products , but also your good partnership in the general Power Generation Program, including: consulting service, project designing, construction, installation ,adjustments and facilities maintenance .
Parameter of 500KW Oil Shale Gas Generator Set
| Model Number (Engine Type) | LH-500GFY |
| Brand Name | LVHUAN |
| Prime power/Standby power | 500KW |
| Rated Speed | 1000RPM |
| Rated Frequency | 50Hz |
| Rated Voltage | 400V/230V |
| Phase | AC 3-Phase, 4 wire |
| Voltage Stability | ≤±2% |
| Voltage transient | ≤±10% |
| Voltage Stable time | ≤1s |
| Heat consumption | ≤11.5mj/kw.h |
| Lubricant consumption | ≤1.5g/kw.h |
| Engine Capacity | 71.4L |
| Cylinder Number | 12 |
| Cylinder Bore | 190mm |
| Stroke | 210mm |
| Starting System | DC 24V electric motor |
| Cooling method | water cooler |
| Lubricant method | Passive and flying lubricant |
| Type | Four stroke, water cooled, turbocharged and aftercooled, spark plug ignition |
| Isolation class | F |
| Protection | IP23 |
| Alternator | SIEMENS |
| Power Factor | 0.8 lagging |
| Exciting method | brushless |
| Colour | your choice |
| Certificates | ISO 9001:2008, CE |
| Warranty | 25000 hours |
| Compression ratio | |
| Control system | Automatic alarm system |
| Size | |
| Weight |
Wide Scope of Usage
Shale gas is explited from shale bed, its main part is located in dark mud shale or high carbon clay shale, it is a kind of natural gas which absorbs to or dissociates in mud stone, high carbon mudstone, shale and silt shale, etc. Its main content is alkane.
There are many by-products in the process of refining oil from oil shale, the exhaust gas can be used as gas like coal gas.

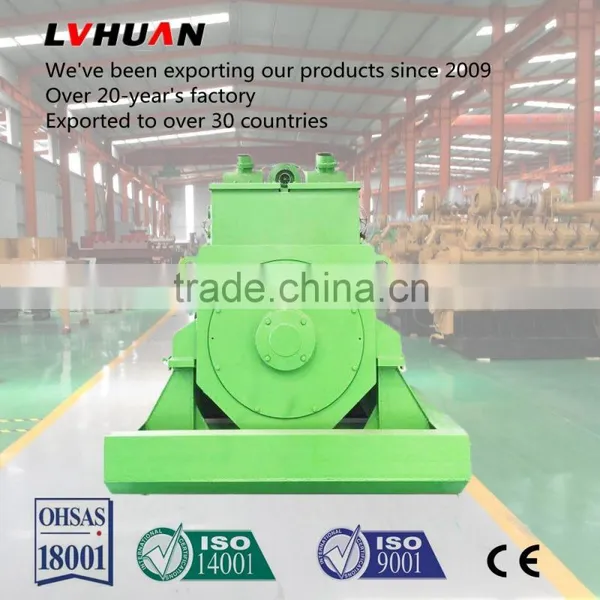

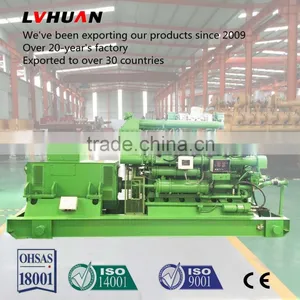

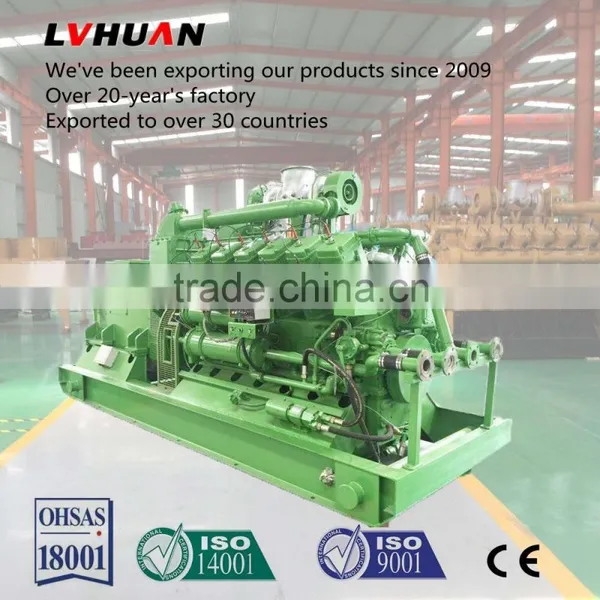

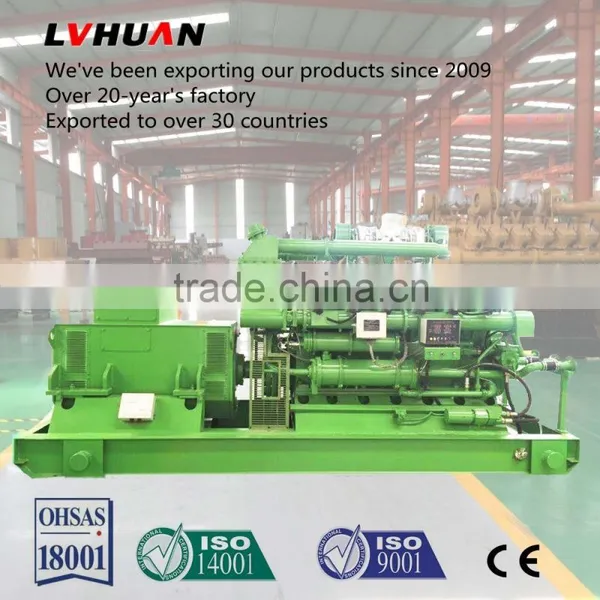

Product Picture
