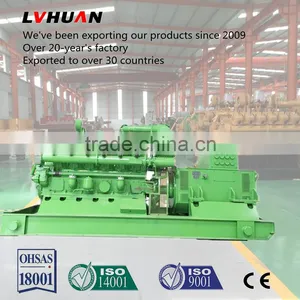

The product show:
The technical parameters:
| Model Number (Engine Type) | LH-500GFY |
| Brand Name | LVHUAN |
| Prime Power/Standby Power | 400KW/500KW |
| Rated Speed | 1000RPM |
| Rated Frequency | 50Hz |
| Rated Voltage | 400V/230V |
| Phase | AC 3-Phase, 4 wire |
| Voltage Stability | ≤±2% |
| Voltage transient | ≤±10% |
| Voltage Stable time | ≤1s |
| Heat consumption | ≤11.38mj/kw.h |
| Lubricant Consumption | 1.0-1.63g/kw.h |
| Engine Capacity | 71.45L |
| Cylinder Number | 12-V |
| Cylinder Bore | 190mm |
| Stroke | 210mm |
| Starting System | DC 24V electric motor |
| Cooling method | water cooler |
| Lubricant method | Passive and flying lubricant |
| Isolation class | H |
| Protection | IP23 |
| Alternator | Siemens |
| Power Factor | 0.8 lagging |
| Exciting method | brushless |
| Colour | your choice |
| Certificates | ISO 9001:2008, CE |
| Warranty | 1 year or 1000 running hours which arrives first |
| Type | Open |
| Control system | Automatic alarm system |
| Size | 6000x1970x2735mm |
| Weight | 11500kg |

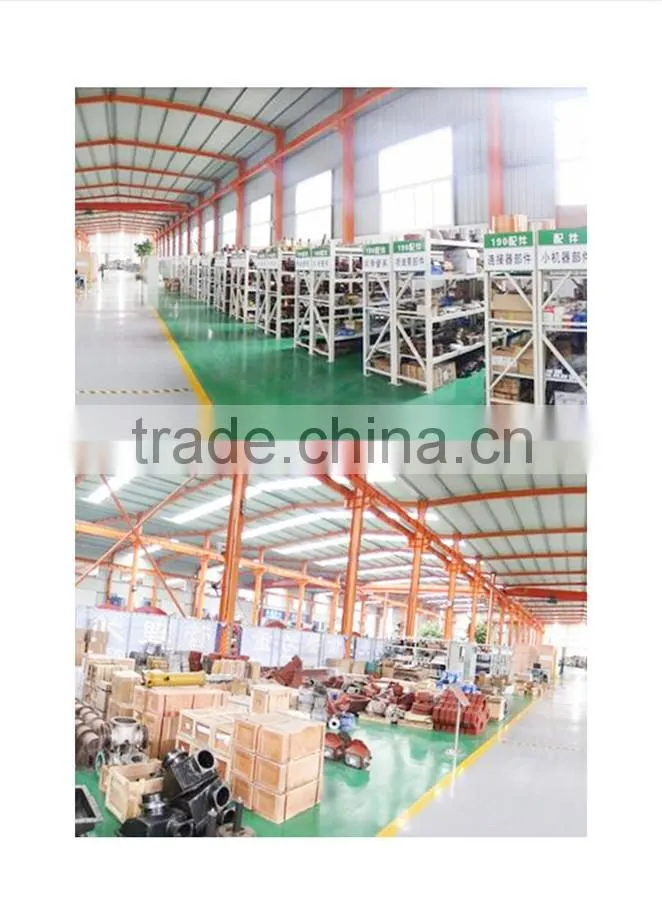

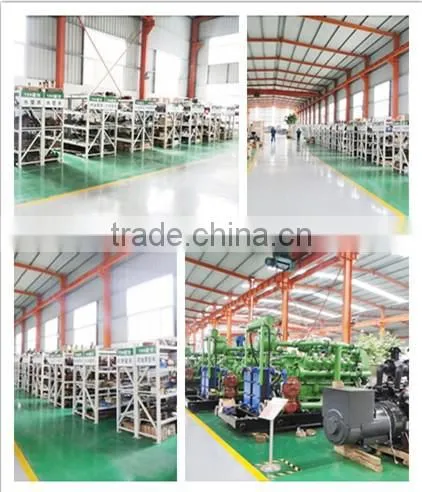

The workshop:
20 years of abandant experiances!!!
The vistors:
The certificates:

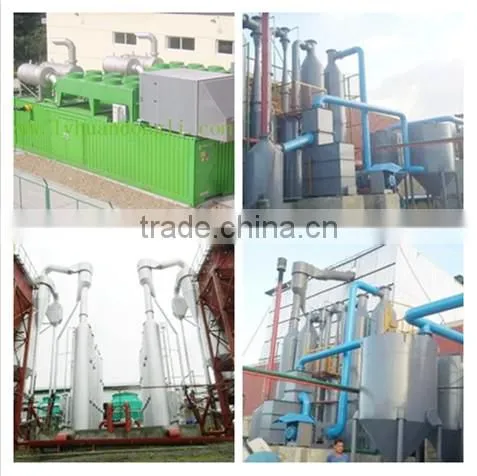

The project cases:
FAQ:
1. How to choose the right model?
To choose a right model, we need to know required continuous output power, local voltage and frequency and fuel (such as diesel, natural gas, biogas, biomass gas, coal gas, syngas, etc.). For biomass power plant and coal gas power plant, some clients may doesn't have gasification system, then we need information about raw material.
2. What's the warranty?
The warranty is one year. We will offer free service and spare parts during warranty period. Lifetime service will be provided by our trustworthy after-sale team.
3. How to do the maintenance?
Operator training will be provided by our technician. After training, local operator can do the basic maintenance by themselves according to our maintenance manual.
4. Do you provide equipment operation training?
Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training. All of our engineers have passport.
The after-sale services:
·For the quailty problem, we will service for you free of charge during the gurantee period.
·One year gurantee period and lifetime service.
·We will give you an effiective answer within 4 hours after received youe service information and our service staff will depart from our factory within 4 hours.
The contacts:Julia Zhu
Email:julia()
Cell phone:+86 15628761716
Wechat:+86 15628761716
Skype:JuliaZhu
