CE certified 10kw - 1mw coal methane gas /shale gas generator set
- 30 Set / Sets per Month
- Qingdao
- T/T
Product Details
Place of Origin: | Shandong, China | Brand Name: | LVHUAN | Model Number: | LHBMG10-600 |
Output Type: | AC Three Phase | Speed: | 1800/1500rpm | Frequency: | 50/60HZ |
Rated Power: | 10-600KW | Rated Voltage: | 230V/400V | Rated Current: | 18-1080A |
Product Description
CE certified 10kw - 1mw coal methane gas /shale gas generator set
Core Features:
Manufacturer supply
Max power supply range:10-600kw
Continuous power supply range: 8-480kw
Standard componient and assembly
Multi-option of control panel
With CE and ISO certificate
Shale gas generator specification:
Model Number (Engine Type) | LHBMG10 - 600 |
Brand Name | LVHUAN |
Prime Power/Standby Power | 8-480kw/10-600 KW |
Gas mixing type | outside |
Rated Speed | 1000/1500RPM |
Rated Frequency | 50/60Hz |
Rated Voltage | 400V/230V |
Phase | AC 3-Phase, 4 wire |
Voltage Stability | ≤±2% |
Voltage transient | ≤±10% |
Voltage Stable time | ≤1 |
Heat consumption | ≤9.8mj/kw.h |
Lubricant consumption | ≤1.0g/kw.h |
Engine Capacity | 1.81-71.45 L |
Cylinder Number | 2-12 pcs |
Cylinder Bore | 100-190mm |
Stroke | 115-210mm |
Heat consumption | ≤9.8mj/kw.h |
Oil consumption | ≤1.63g/kw.h |
Starting System | DC 24V eclectic motor |
Cooling method | water cooler |
Lubricant method | Pressure and splash |
Isolation class | H |
Protection | IP23 |
Alternator | ENGGA |
Power Factor | 0.8 lagging |
Exciting method | brushless |
(Single set power supply range: 10 - 600 kw, ≥2 sets parallel together to form large power, Eg. 500kw*3 sets = 1500KW)

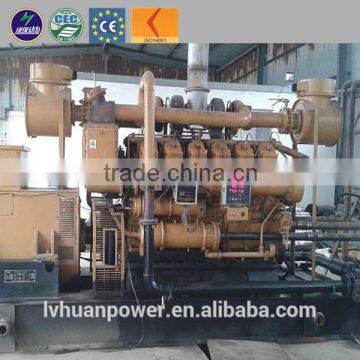

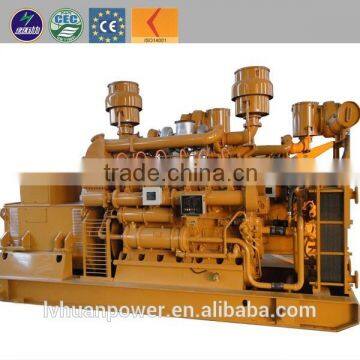

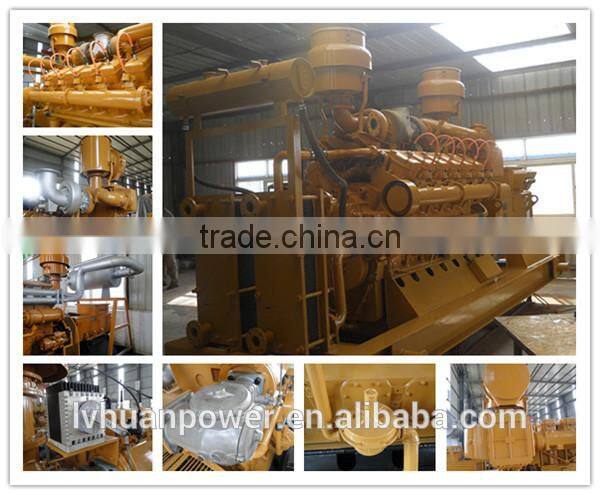

Shale gas generator photo:
Shale gas generator working principle:
1. Condition: Shale gas ready to use
2. Gas mix with air outside of engine's cylinders
3.Mixed gas into cylinder and explode inside of cylinders to change gas energy into power force
4.Power force drive alternator to generator electric power
5.Water circules form water tank to engine to bring the engine heat
6. Optional device of CHP, silent canopy and mobilable trailer.
7. Control panel system control all operation
Machine supply details:
Ignition system:We adopt ignition system of magneto which produced by American ALTRONIC company,including:magneto,high-tension coil,sparking plug.
Starting system: DC24V electric motor,12v190 adopt ST710 of direct-current.
Pressure charging system:Pulse Mixed-flow supercharger, compression ration is 1:8,meet engine's requirement for gas-flow rate.
Speed regulating system: EGS gas controller of American WOODWARD Company.
Full automatic system for optional: ATS for automatic switch form national grid power to generated power, double direction.
Low voltage cables between generator set and control room: available if needed.
Features of our shale gas generator:
1.Pure copper water tank for best cooling effect
2.Famous component brand to ensure overall quality, Eg. Siemens,Standard, Stanford.
3.Expansion fitting combined with shrinking fitting give high tightness to the system.
4.Safety guarantee form electromagnetic valve as well as back-fire relief valve
5.Residual heat CHP recycle system available for choice.

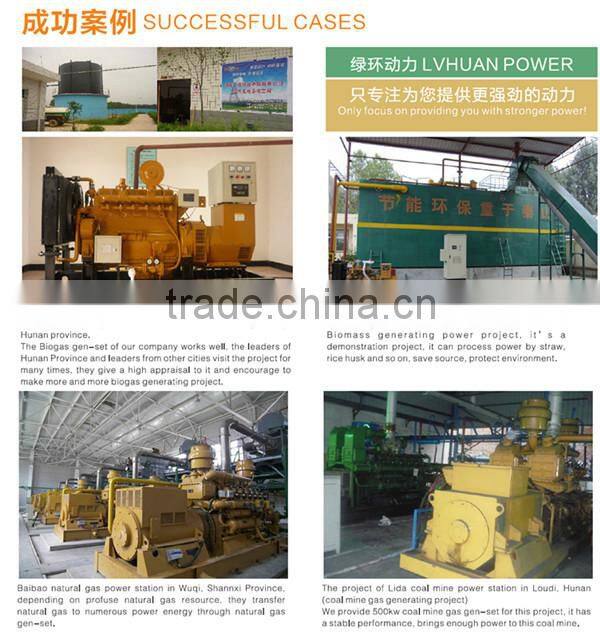

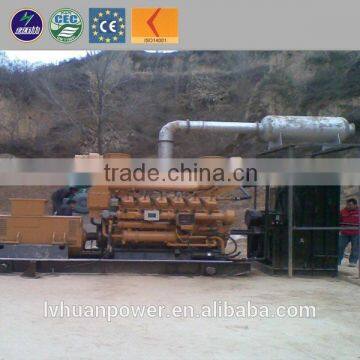

Generator successful case:

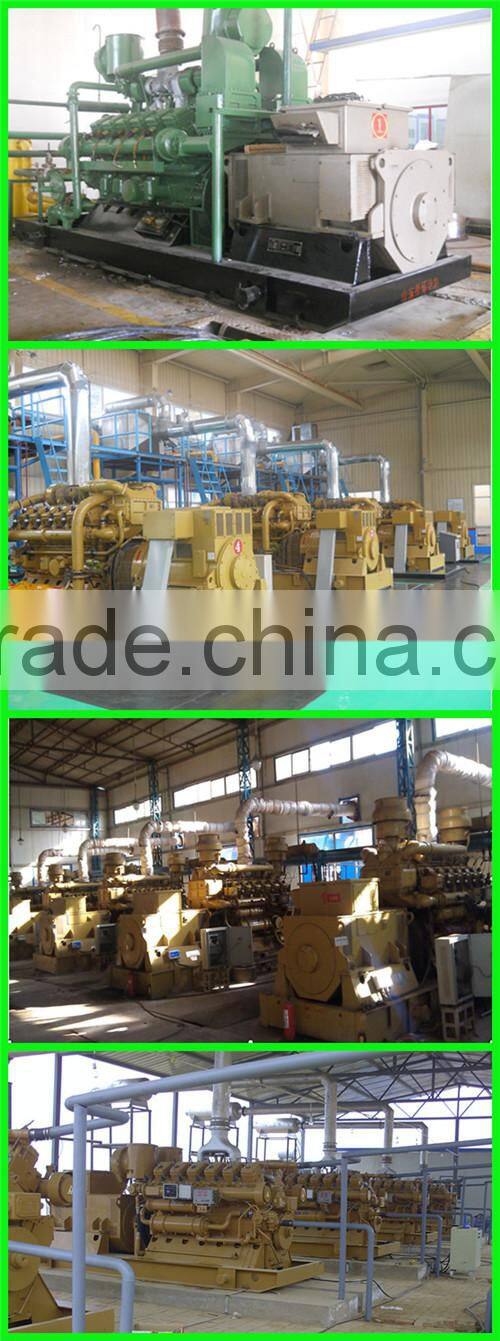

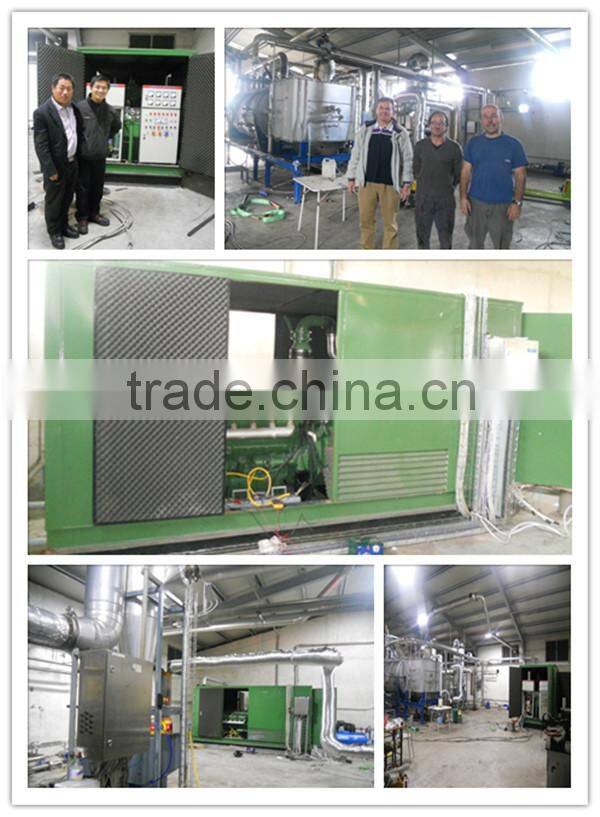

Onsite installation in Italy:
Company overview:
Visitors form oversea:

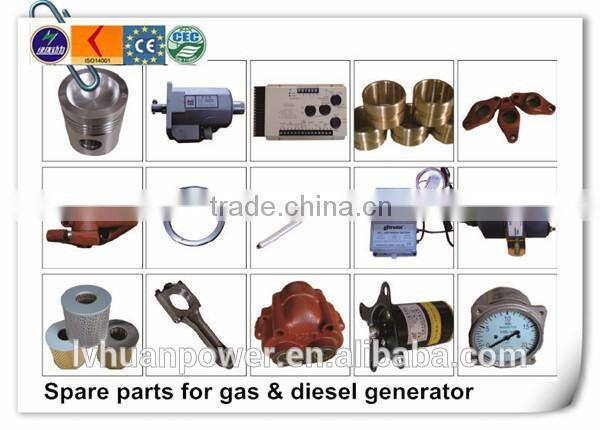

Spare parts for generator:
Our certificate:
FAQ:
1.How to choose the right model?
A: It depends on continuous output power, Voltage, Frequency and fuel type. Please tell me what fuel (natural gas, biogas, biomass gas,wood syngas, methane,coal gas) or raw material(like wood, grass, nutshell and so on).
The right model of generator will be recommend soon. Me and our engineers are always available at your service.
2.What is the oil consumption and capacity per hour?
A: 1.0-1.63g of lubricant oil consumption per hour.
1.0 Cubic meter gas can produce 1.5-3.0kw/h power. The capacity depends on gas energy(Kcal). E.g 1.0 Cubic meter natural gas produce about 3.0-4.0kw/h
3.What is the overhaul?
A: About 30000 working hours. A week is enough to finish. We offer manual for weekly, monthly and overhaul maintenance.
4. What is the warranty?
A: 1 year. Inside this 1 year, we offer all spare parts free of charge. After this period, spare parts are not free. What's more, a set of spare parts will be shipped together with generator set free of charge.
5. How is the after sale service and maintenance?
A: We offer installation,repair and maintain service abroad. And online guide service if needed anytime. Our before-sale, in-sale and after-sale service are all trustable, you can name it.
What's more, drawings for gensets and foundation will be offered in final stage.
6. What products we offer?
Our Services :
1.Pre-sale service:
A.Our engineers are available for onsite prospect before installation free to charge.
B. Foundation drawing and detailed Dimension free form us.
2.In-sale service:
A. Onsite overall guide installation,operation and maintenance training .
B. Assistance and instruction of trial running.
3.After-sale service:
A. 24 hours online or in person after sale service.
B.12 months warranty. We take care of all errors/breakdowns in this period.
4.Spare parts service:
A.All spares parts on our gensets supplied by us.
B. Free spare parts together with genset when shipping.
Please feel free to ask question and ask for quotations/prices.
