Low factory price,30KVA,20KVA,50KVA,60KVA,70kva natural gas electric generator
1. Introduction
Shandong Lvhuan Power Equipment Co,. Ltd is a comprehensive high-tech enterprise. Our main products include coal-bed gas generator, biogas generator set, natural gas generator set, biomass generator set, coke-oven gas generator set and coal gas generator set.
2.Requirements For Natural gas Genset Working Condition
Within 1m from pressure regulating valve of gas intake
- The ratio of CH4 in natural gas ≥70%
- Pressure of natural gas: 80-200kpa, rate of pressure change ≤ 1kpa/min
- H2S ≤ 20mg/Nm3
- Impurity particle size ≤ 5μm, impurity content ≤ 30mg/Nm3
- Moisture content ≤ 40g/Nm3
3. Main Technical Parameter of Small-medium Power Series Natural gas Gen-set
Output power 20kw
Rated speed 1500r/min
Output voltage 400V/230V
Frequency 50/60Hz
Exciting method brushless excitation
Voltage regulation mode antomatic
Phase AC 3-Phase, 4 wire
Application areas Natural gas, oilfield associated gas
4.Technical Parameters of Natural Gas Gen-set
| Model Number (Engine Type) | LHNG20 |
| Brand Name | LVHUAN |
| Prime power/Standby power | 16KW/20KW |
| Rated Speed | 1500/1800RPM |
| Rated Frequency | 50/60Hz |
| Rated Voltage | 400V/230V |
| Phase | AC 3-Phase, 4 wire |
| Voltage Stability | ≤±2% |
| Voltage transient | ≤±10% |
| Voltage Stable time | ≤1s |
| Heat consumption | ≤11mj/kw.h |
| Lubricant consumption | ≤1.0g/kw.h |
| Engine Capacity | 3.61 L |
| Cylinder Number | 4 |
| Cylinder Bore | 100mm |
| Stroke | 115mm |
| Starting System | DC 24V electric motor |
| Cooling method | water cooler |
| Lubricant method | Passive and flying lubricant |
| Isolation class | H |
| Protection | IP23 |
| Alternator | Chinese Stamford |
| Power Factor | 0.8 lagging |
| Exciting method | brushless |
| Colour | your choice |
| Certificates | ISO 9001:2008, CE |
| Warranty | 1 year or 1000 running hours which arrives first |
| Type | Open |
| Control system | Automatic alarm system |
| Size | 1650x720x1250mm |
| Weight | 750kg |

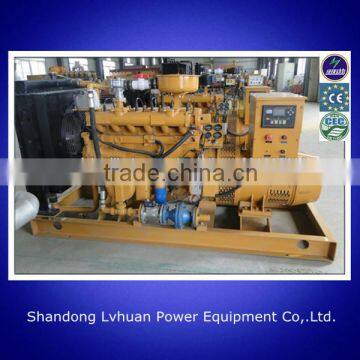

5. More Equipment Pictures
6. General Standard Spare Parts Supplied
7. Project Cases
8. Certificate
9. Sale service
Sincerely welcome to visit our factory and build future cooperation relationship. Helping our customer generating electricity is our purpose.
