Home > Products > Natural Gas Genset > Mini 10-50KW Natural Gas Turbine Generator

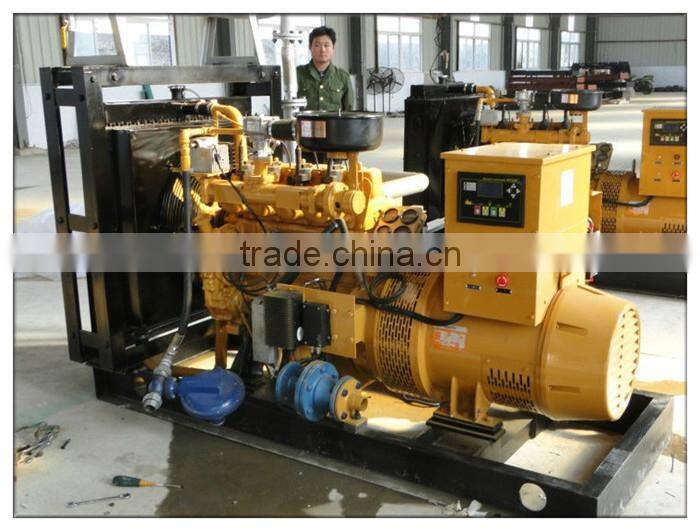

Mini 10-50KW Natural Gas Turbine Generator
- 30 Set / Sets per Month
- Qingdao Port
- T/T Credit Card
Product Details
Place of Origin: | Shandong, China | Brand Name: | LVHUAN | Model Number: | LHNG10 |
Output Type: | AC Three Phase | Speed: | 1500/1800 r/min | Frequency: | 50/60Hz |
Rated Power: | 10kw | Rated Voltage: | 400V/230V | Rated Current: | AC 3-Phase, 4 wire |
Product Description
Shandong Lvhuan Power Equipment Co,.Ltd.
WE DEVOTE OURSELVES TO GAS POWER GENERATION.
1. Company Introduction
- Since 2008
- Factory area over 40000m2
- Starff over 260 employees
- Technicians over 100 people
- website
2. Advantage
- Strong structure & Strengthen accessories
- Super performance of electric speed governer & Gas pressure regulation system
- Auto voltage regulation & Stable working condition
- Long using life and low-operation cost
- Easy Start & Auto start
- High quality & imported & accurate gas control system
- Low requirement on gas heat value for easy generation
- Strong control system anti-interference ability
3. Main Technical Parameter of Small-medium Power Series Coal Bed gas Gen-set
Output power 10kw
Output voltage 400V/230V
Frequency 50/60Hz
Exciting method brushless excitation
Voltage regulation mode antomatic
Phase AC 3-Phase, 4 wire
Application areas Natural gas, oilfield associated gas
4.Technical Parameters of Coal Bed Gas Gen-set
Model Number (Engine Type) | LHCBG10 |
Brand Name | LVHUAN |
Prime power/Standby power | 8KW/10KW |
Rated Speed | 1500/1800RPM |
Rated Frequency | 50/60Hz |
Rated Voltage | 400V/230V |
Phase | AC 3-Phase, 4 wire |
Voltage Stability | ≤±2% |
Voltage transient | ≤±10% |
Voltage Stable time | ≤1s |
Heat consumption | ≤11mj/kw.h |
Lubricant consumption | ≤1.0g/kw.h |
Engine Capacity | 2.24 L |
Cylinder Number | 2 |
Cylinder Bore | 100mm |
Stroke | 115mm |
Starting System | DC 24V electric motor |
Cooling method | water cooler |
Lubricant method | Passive and flying lubricant |
Type | Four stroke, water cooled, turbocharged and aftercooled, spark plug ignition |
Isolation class | H |
Protection | IP23 |
Alternator | Chinese Stamford |
Power Factor | 0.8 lagging |
Exciting method | brushless |
Colour | your choice |
Certificates | ISO 9001:2008, CE |
Warranty | 1 year or 1000 running hours which arrives first |
Compression ratio | 10:1 |
Control system | Automatic alarm system |
Size | 1450x700x1100mm |
Weight | 700kg |

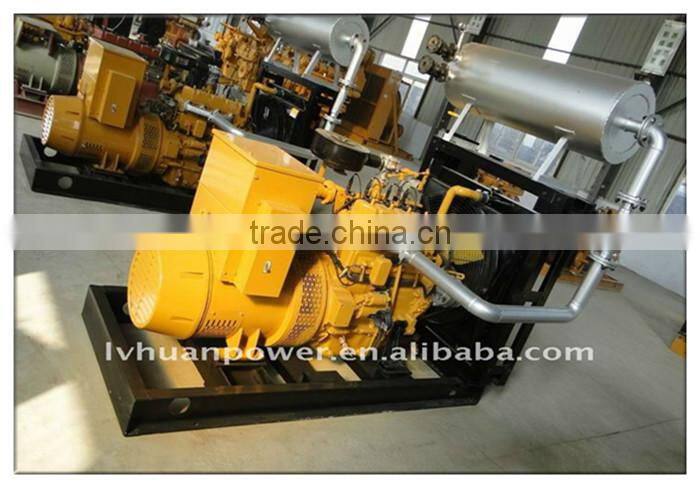

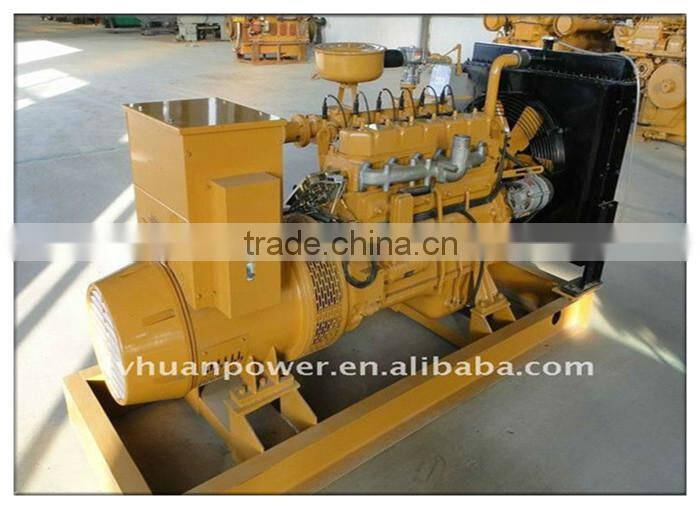

5. More Equipment Pictures
6. General Standard Spare Parts Supplied
7. Factory
8. Certificate
9. Sale service
Sincerely welcome to visit our factory and build future cooperation relationship. Helping our customer generating electricity is our purpose.
