Help CenterCoal Bed Gas Generator Set , Generate Power With High and Low Concentration Coal Bed Gas
Related Products
-
China Famous LVHUAN 600KW Coal Bed Gas Generator Set, Less Than 25% MethaneUS$ 150,000 - 170,000MOQ: 1 Set -
China Famous LVHUAN 600KW Coal Bed Gas Generator SetUS$ 150,000 - 170,000MOQ: 1 Set
-
China Famous LVHUAN 500KW Coal Bed Gas Generator Set, Less Than 25% MethaneUS$ 140,000 - 150,000MOQ: 1 Set
-
Continuous Work For Coal Bed Generator SetUS$ 65,400 - 76,400MOQ: 1 Set
-
500kw Larger Power Coal Bed Gas Generator Set for SaleUS$ 140000.00 - 140000.00MOQ: 1 Set
Company Introduction
Shandong Lvhuan Power Equipment Co., Ltd is a comprehensive high-tech company which is engaged in the researching, manufacturing and after-sale service of the new energy-saving generator products.
Our main products are gas generator set, diesel engine and diesel generator set. It forms a series of products, including: Biogas gen-set, Coal mine gen-set, Natural gas gen-set, Biomass gen-set, Coke oven gas gen-set, Gas gen-set, Diesel gen-set and the entire building machine. These products cover almost all the range of power, and their power performance, economical efficiency and reliability are all in the advanced level of this field.
We have attained ISO9001, ISO14001 and CE certifications, and carries them out in every production procedure. With the strong capacity of researching and designing, we can not only provide you with quality products , but also your good partnership in the general Power Generation Program, including: consulting service, project designing, construction, installation ,adjustments and facilities maintenance
Parameter of Coal Bed Gas Generator Set
Model Number |
LHCMG500 |
LHCMG600 |
Brand Name |
LVHUAN |
LVHUAN |
Engine Type |
G12V190ZLDW-2 |
G12V190ZLDW-3 |
Rated Power |
400/500 kw/kva |
500/625 kw/kva |
Rated Speed |
1000r/min |
1000r/min |
Rated Frequency |
50Hz |
50Hz |
Rated Voltage |
400/230V |
400/230V |
Phase |
AC 3-Phase, 4 wire |
AC 3-Phase, 4 wire |
Voltage Stability |
≤±2% |
≤±2% |
Voltage transient |
≤±10% |
≤±10% |
Voltage Stable time |
≤1 s |
≤1 s |
Heat consumption |
≤11000KJ/kW.h |
≤11000KJ/kW.h |
Oil consumption |
≤1.6 g/Kw.h |
≤1.6 g/Kw.h |
Engine Capacity |
71.4 L |
71.4 L |
Cylinder Number |
12V |
12V |
Cylinder Diameter |
190mm |
190mm |
Range |
215mm |
215mm |
Starting System |
DC 24V electic motor |
DC 24V electic motor |
Cooling method |
water cooled |
water cooled |
Lubricant method |
Passive and flying lubricant |
Passive and flying lubricant |
Isolation class |
H |
H |
Protection |
IP21 |
IP21 |
Alternator |
Siemens |
Siemens |
Power Factor |
0.8 lagging |
0.8 lagging |
Exciting method |
brushless |
brushless |
Colour |
your choice |
your choice |
Certificates |
ISO 9001:2008 ,CE |
ISO 9001:2008 ,CE |
Warranty |
1 year or 1500 running hours |
1 year or 1500 running hours |
Type |
Open |
Open |
Function |
ATS and AMF |
ATS and AMF |
Control system |
Automatic alarm system |
Automatic alarm system |
Size |
5300x2100x2600 |
5500x2100x2700 |
Weight |
12000 |
12500 |
Requirements for Coal Bed Gas Generator Set
Within 1m from pressure regulating valve of gas intake
1. Gas temperature ≤40°c
2. Pressure 3 - 20kpa, pressure changing rate ≤1kpa/min
3. H2S≤200mg/Nm3
4. If the CH4 covers less than 30%, the total content of CH4 and O2 should not less than 28%, the content of O2 should not less than 16%
5. Impurity particle size ≤ 5μm, impurity content ≤30mg/ Nm3
If there are too much sulfur and ammonia in the gas, it will not only corrode the electrode of sparking plug heavily, but also increase the acid value of engine oil which will corrode the parts inside of genset, easy to generate precipitate and increase the attrition corrosion to the engine.
6. Moisture content ≤40g/Nm3
Raw Materials of Coal Bed Gas Generator Set
Wide Scope of Usage
Our generator sets are widely used to generate power with high and low concentration coal bed gas, etc.

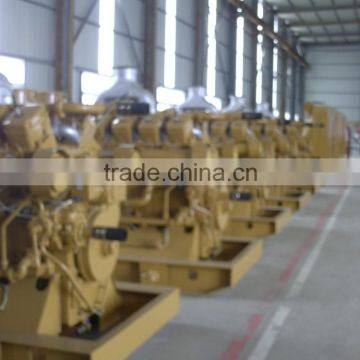

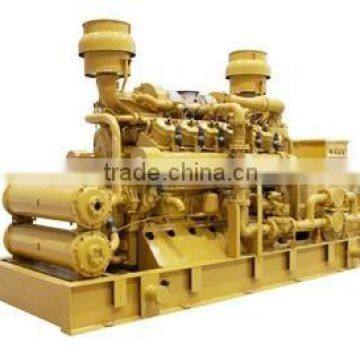

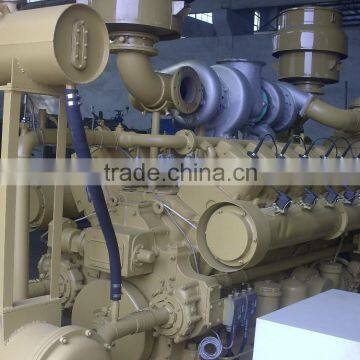

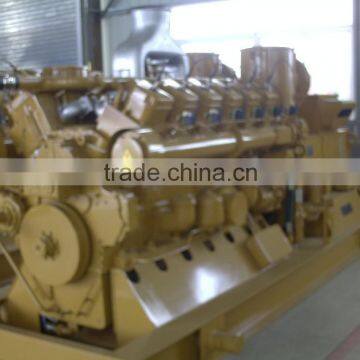

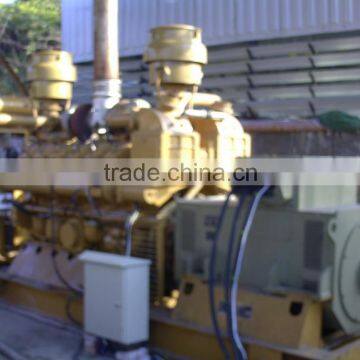

Actual Product Photos
Cetificates
Packaging
Shipping
