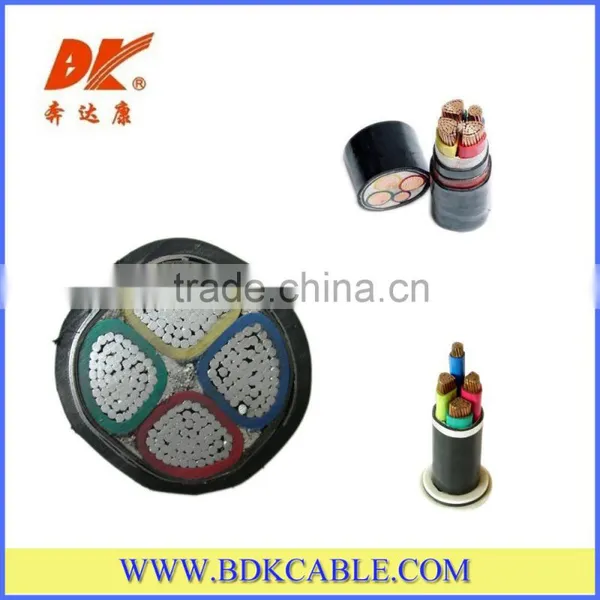

Factory Price Low Voltage XLPE STA PVC Power Cable 0.6/1KV
Specifications:
1. Type: U-1000 RVFV,YJV22
2. Voltage rate:0.6/1KV
3. Range of Nominal cross section: 1.5mm2~630mm2
4.Cores: 1C,2C,3C,4C,5C,3C+1E,4C+1E,3C+2E
5. Application: It applies to electrical power transmission and distribution lines with AC rated voltage U0/U up to and including 0.6/1kv, For outdoor and indoor installation in damp and wet locations, laid directly in the ground( when well protect in ducts , in trenches and in steel support brackets)
6.Standard: IEC60502,BS7870,GB/T12706
7. Conductors:
conductor:Class 1/2 annealed bare copper solid or strands
Insulation:XLPE
Armore: STA(Remark:for single core the armor should be ATA)
Sheath:PVC
8. Max operating temperature : 90°C, can be 110°C as per requirement
9.:MOQ:1000 meters for big size
Technical Data Sheet:
